3.4.8

IRD

CALE

ARD

If you install a scale card, perform a cold start. Refer to the User Manual.

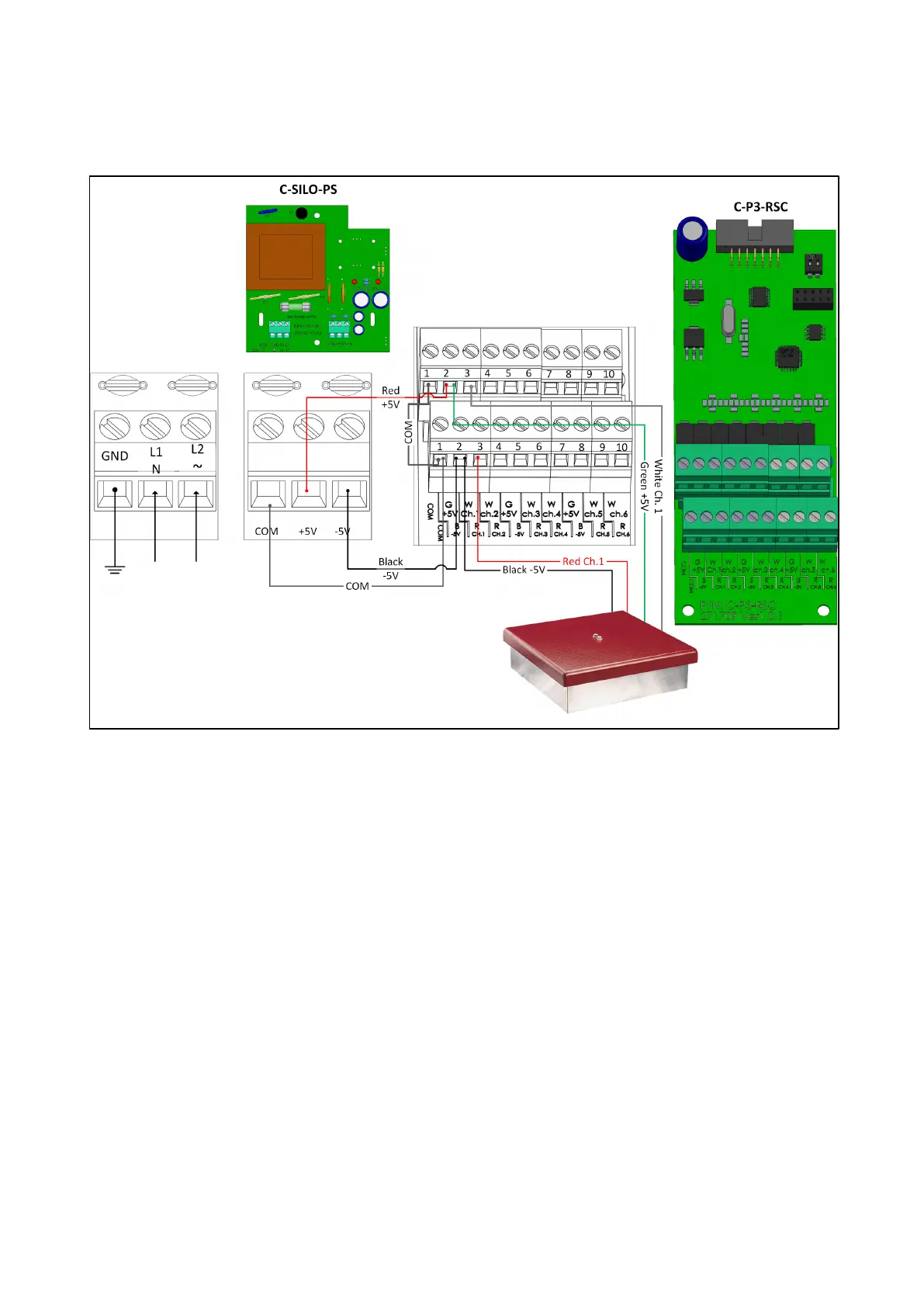

Figure 28: Scale Card wiring to Power Supply and Bird Scale
