© Munters AB, 2020 50
7.3
Ventilation Devices
•
Defining the Fans
•
Defining the Stir Fan
7.3.1
D
EFINING THE
F
ANS
The following sections detail how to configure fans.
NOTE These settings should be configured by a technician familiar with the fan and inlet/curtain
specifications.
Fan air capacity defines how much air is provided when the fans run at full speed. These numbers are
used to calculate minimum air requirements.
In General Settings > User define the measurement unit.
Define up to 20 relays or analog output ports as On/Off or 0 – 10 V fans, respectively
(refer to Mapping Devices, page 44).
•
On-Off Fans
•
0 – 10 Volt Fans
7.3.1.1
On-Off Fans

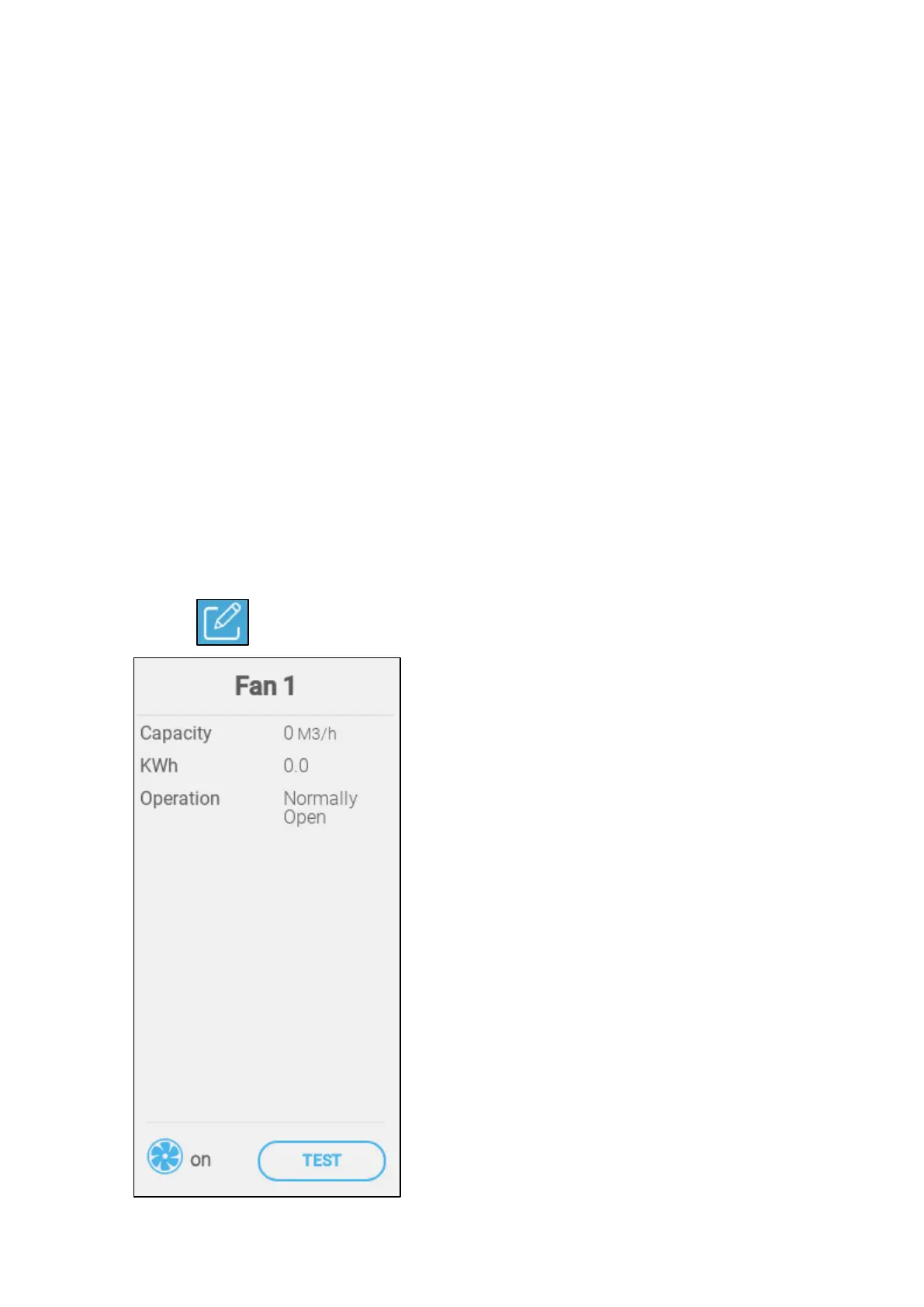

1. On the Device and Sensors screen, click a fan relay.
2. Click .
