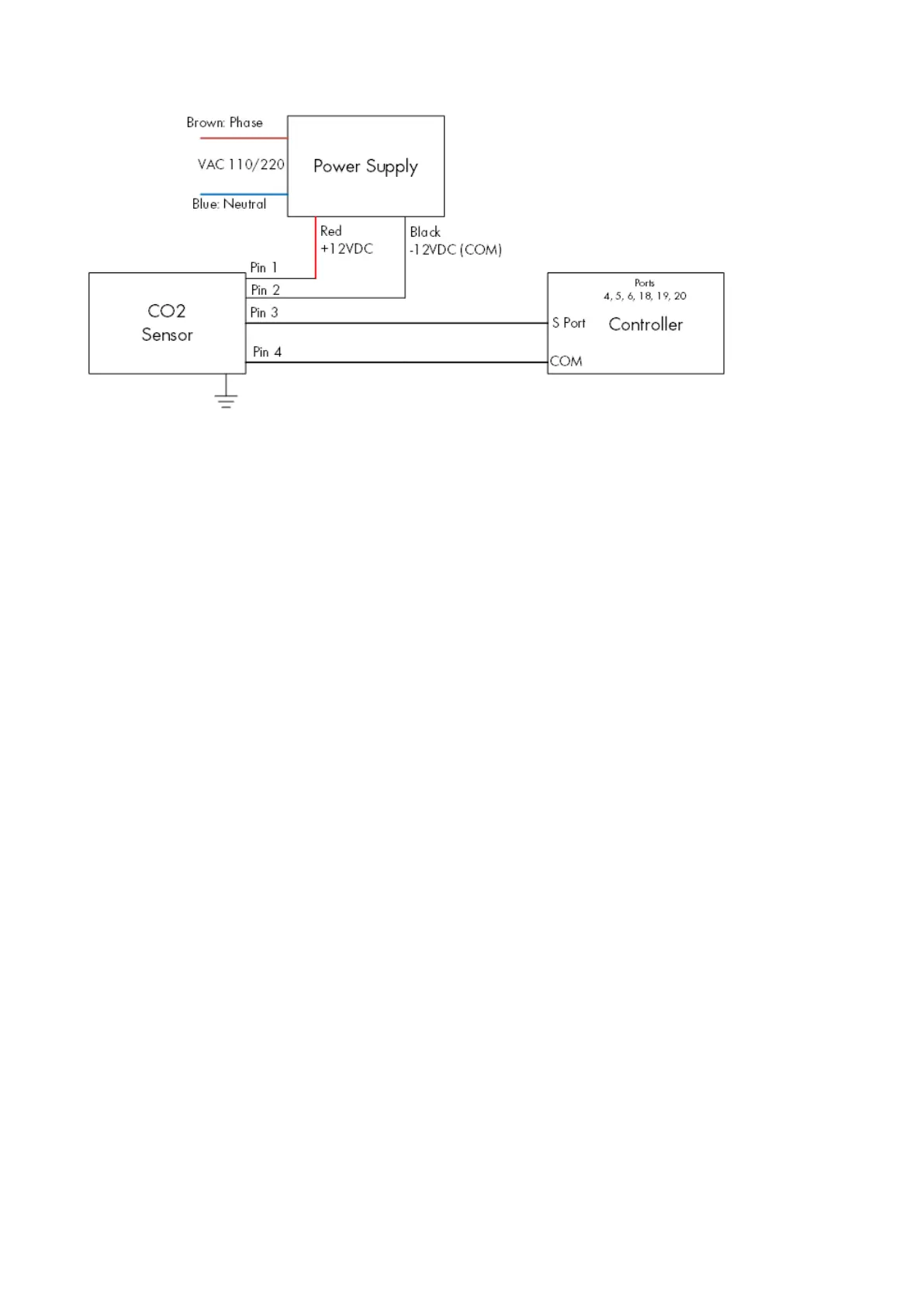

Figure 15: CO2 Sensor Wiring Schematic
• Connect the CO2 device to:
o
Controller:
 S port. In the corresponding dipswitch, raise dipswitch 4 (4-20 mA).
 COM port
o
Power supply
 +12V
 -12V
