Munters Trio Poultry Controller Installation Manual

Name: Munters Trio Poultry Controller
Brand: Munters
Rating: 4 (1 reviews)

134 pages

To Next Page

To Previous Page

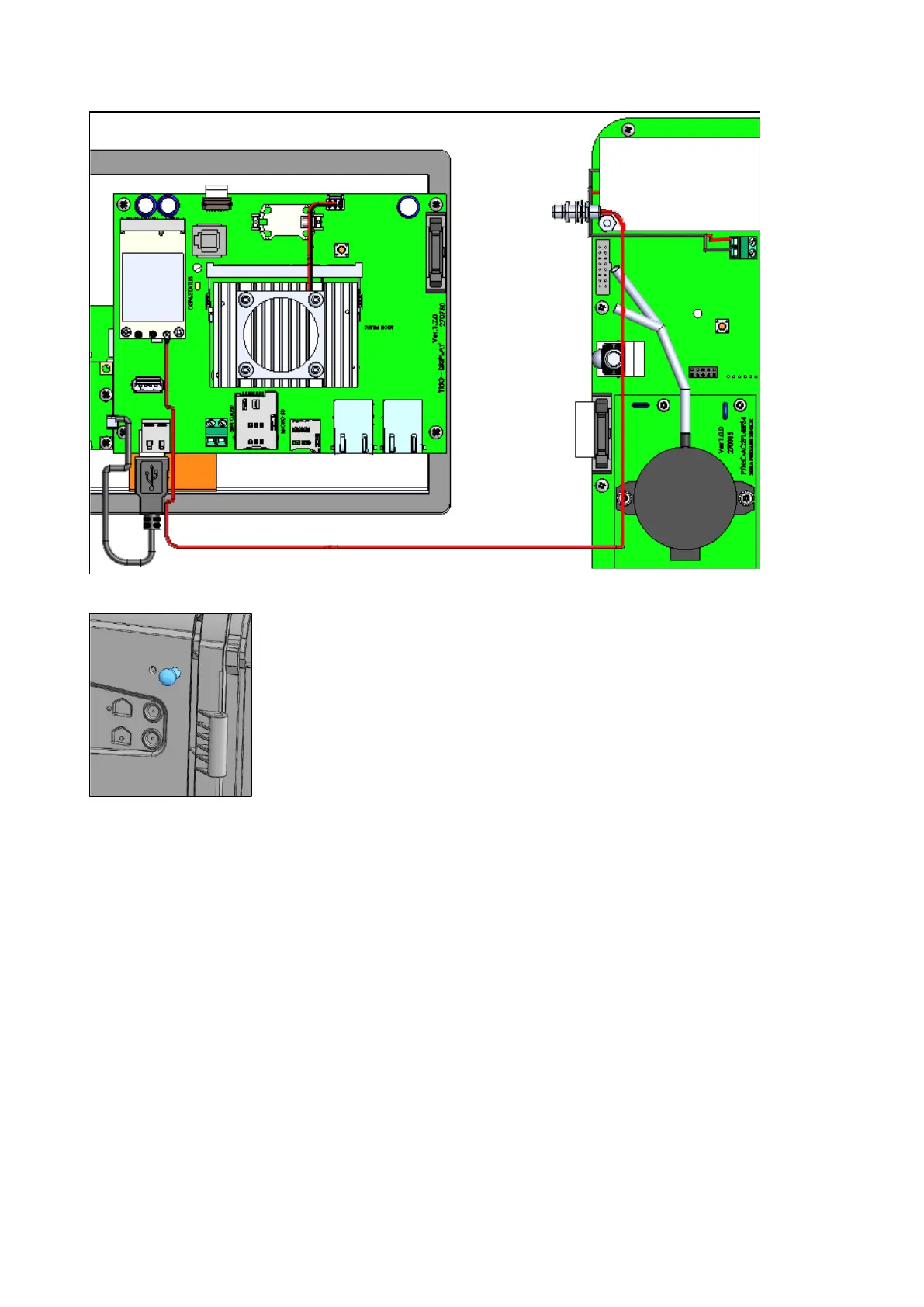

6. Remove the plug in the spot designated for the SMA connector.

Table of Contents3
Introduction7
Disclaimer7
Notes7
Precautions8
Grounding8
Filtering8
Checking the Battery Level8
Frequency Inverters8
Unit Installation10
Preliminary Information10
Safety Precautions10
What Comes in the Package11
Mounting the Unit11
Knockouts11
Hanging the Unit12
Layout13
Board Layout13
External Device Specifications14
Wiring Diagrams15
High Voltage Relays16
Alarms and Power18
Internet Connection19
Analog Output Devices20
Digital Devices21
Analog Input Devices22
Trio RPS29
Bird Scale Card31
Silo Wiring32
RSU Wiring33
Pressure Sensor Hoses34
Key34
Product Symbols35
Trioair36
Trio Air Accounts36
Pairing a Trio37
Specifications41
Using the Trio Touch Screen42
Mapping and Defining the Input Output Devices44
Mapping Devices44
Temperature Sensors48
Defining the Temperature Sensors48
Mapping the Temperature Sensors48
Enabling a Weather Station49
Ventilation Devices50
Defining the Fans50
Defining the Stir Fan52
Sensors54
Defining the Ammonia Sensor54
Defining the CO2 Sensor55
Defining the Humidity Sensors56
Defining the Water Meter Sensors57
Defining the Gas Meter Sensors58
Heating Devices59
Defining the On/Off Heaters59
Defining the Variable Heaters60
Defining the Cooling Devices61
Inlets, Tunnel Doors, Outlets62
Mapping the Potentiometers62
Defining the Inlets/Tunnel Doors63
Defining the Outlet66
Defining the same as Relays67
Defining the same as Analog Ports68
Defining the Timer69
Defining the Auxiliary Input70
Lighting Devices71
Defining the On/Off Lights71
Defining the Variable Lights72
Defining the Light Sensor73
Feeding Devices74
Defining the Auger Relays74
Defining the Auger Active Sensors75
Defining the Feeder Relays76
Defining the Feeder Active Sensors77
Defining the Silos78
Mapping the Silo Scales78
Configuring the Silo Scale80
Defining the Bird Scales84
Mapping the Bird Scales84
Calibrating the Bird Scales86
Testing the Bird Scale88
Defining the RSU89
Defining the Trio RPS89
Define the Sensor89
Static Pressure Calibration90
Appendix A: External Devices (Previous Versions)93
Appendix B: Service Manual95
Maintenance95
Trouble Shooting96
Internet96
Electronic Components97
Spare Parts98
Preliminary Information98
Trio 20 Container Spare Parts99
Trio 20 Door Card Spare Parts101
Trio 20 Main Container Spare Parts103
Additional Options106
Cards107
Appendix C: Trio Expansion 10112
Expansion Layout112
Expansion Wiring Diagrams113
Trio to Trio Expansion Wiring113
High Voltage Relays114
Power115
Trio / Trio Expansion Termination116
Key117
Product Symbols117
Mapping Devices in Expansion118
Expansion Specifications119
Expansion Spare Parts119
Preliminary Information120
Trio 10 Expansion Container Spare Parts120
Trio 10 Expansion Main Container Spare Parts122
Main Container Card Spare Parts123
Appendix D: Trio Cell Modem Installation124
Prerequisites124
Supported Devices124
Required Software124
Internet Access124
Installation125
Physical Installation125
Configuration130
Warranty133
