Munters Trio Poultry Controller

To Next Page

To Previous Page

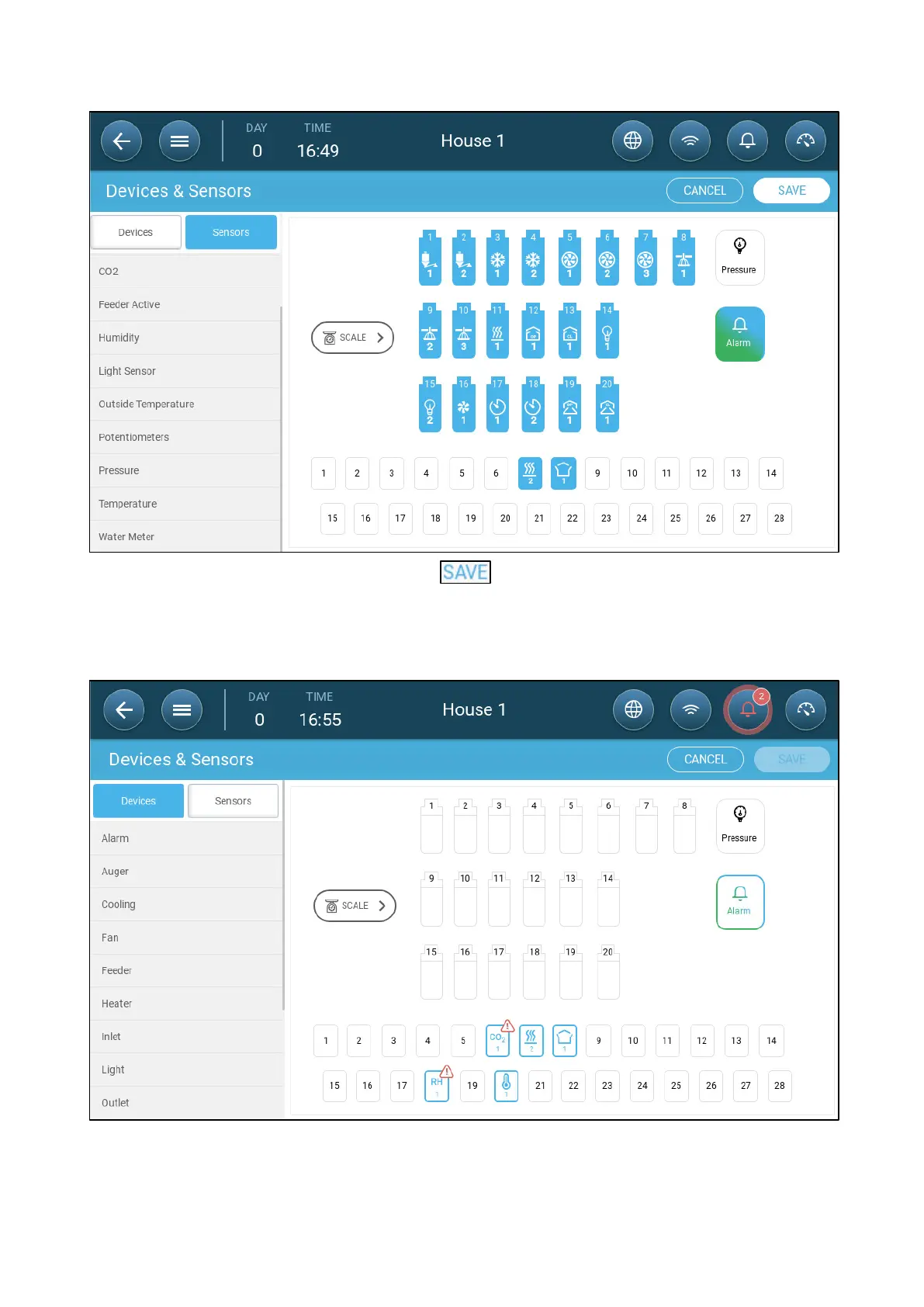

6. After mapping all installed devices, click .

NOTE To un-map a device, click on the required device and hold the icon down.

NOTE If you map a sensor that is not physically connected to the Trio, an error symbol appears on the

designated analog port.

Main Page
