Printing in the Windows Environment 2-127
2.8 Appendix: Manual Installation Process of the Printer Driver
2
6 Click [Create a new port:], then select [Standard TCP/IP Port].
7 Click [Next].
8 Select [TCP/IP Device], then enter the IP address.
9 Click [Next].
% If the [Additional Port Information Required] dialog box appears, go to Step 10.
% If the [Install the printer driver] dialog box appears, go to Step 13.
10 Select [Custom], and then click [Settings...].
11 Change the settings according to the port, and then click [OK].
% For an LPR connection, select the [LPR] check box, then enter "Print" in [Queue Name:]. You must
discriminate between upper and lower case letters when entering it.
% For Port 9100 connection, select the [Raw] check box, and then enter a RAW port number (initial
setting: [9100]) in [Port Number:].
% If both LPR and Port 9100 are enabled on this machine, the printer driver is connected to this ma-
chine using LPR.
12 Click [Next].

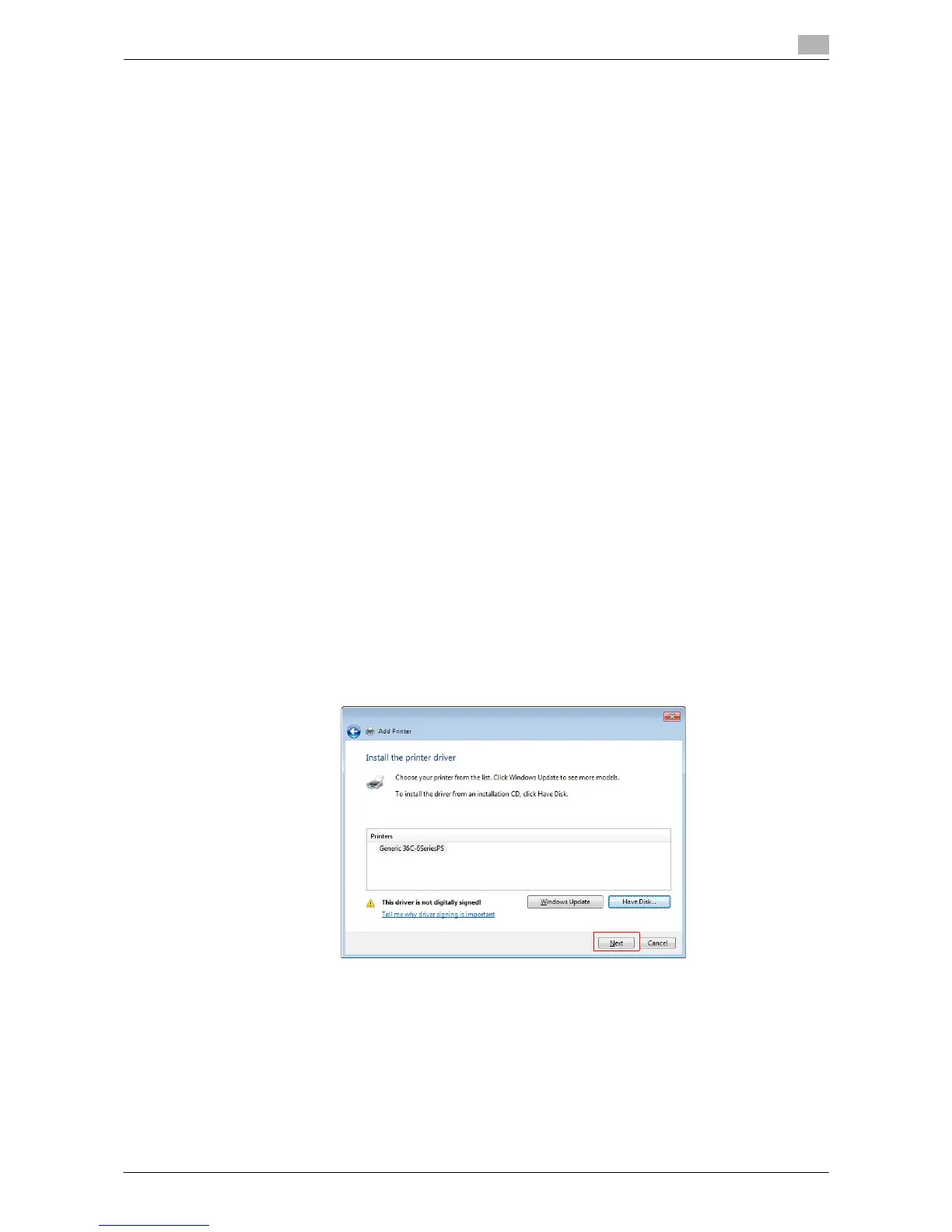

The [Install the printer driver] dialog box appears.
13 Click [Have Disk...].
14 Click [Browse...].
15 Select the folder on the CD-ROM containing the desired printer driver, then click [Open].
% Select the folder according to the printer driver, operating system, and language to be used.
Selectable printer drivers: PCL driver, PS driver, and XPS driver
16 Click [OK].
The [Printers] list appears.
17 Click [Next].
18 Follow the instructions on the pages that follow.
% If the [User Account Control] window appears, click [Continue] or [Yes].
19 Click [Finish].
20 After finishing the installation, make sure that the icon for the installed printer is displayed in the [Print-
ers] or [Devices and Printers] window.
