Manual MVK-MP
V 3.5 13
3. Installation
3.1 Assembly
The MVK-MP modules can be directly mounted to a mounting wall or to a machine. The module
features two fixing holes for this purpose.
Before attaching the module, it must be assured that the mounting surface is smooth and flat to prevent
mechanical stress in the module housing.
Two screws with M6 thread and two U washers DIN 433 are required for assembly. The tightening
torque is 8 Nm.
2
0
8
,
5
+
/
-
0
,
5
2
2
5
+
/
-
0
,
5
63
+/-0,5
9,5
3 mm

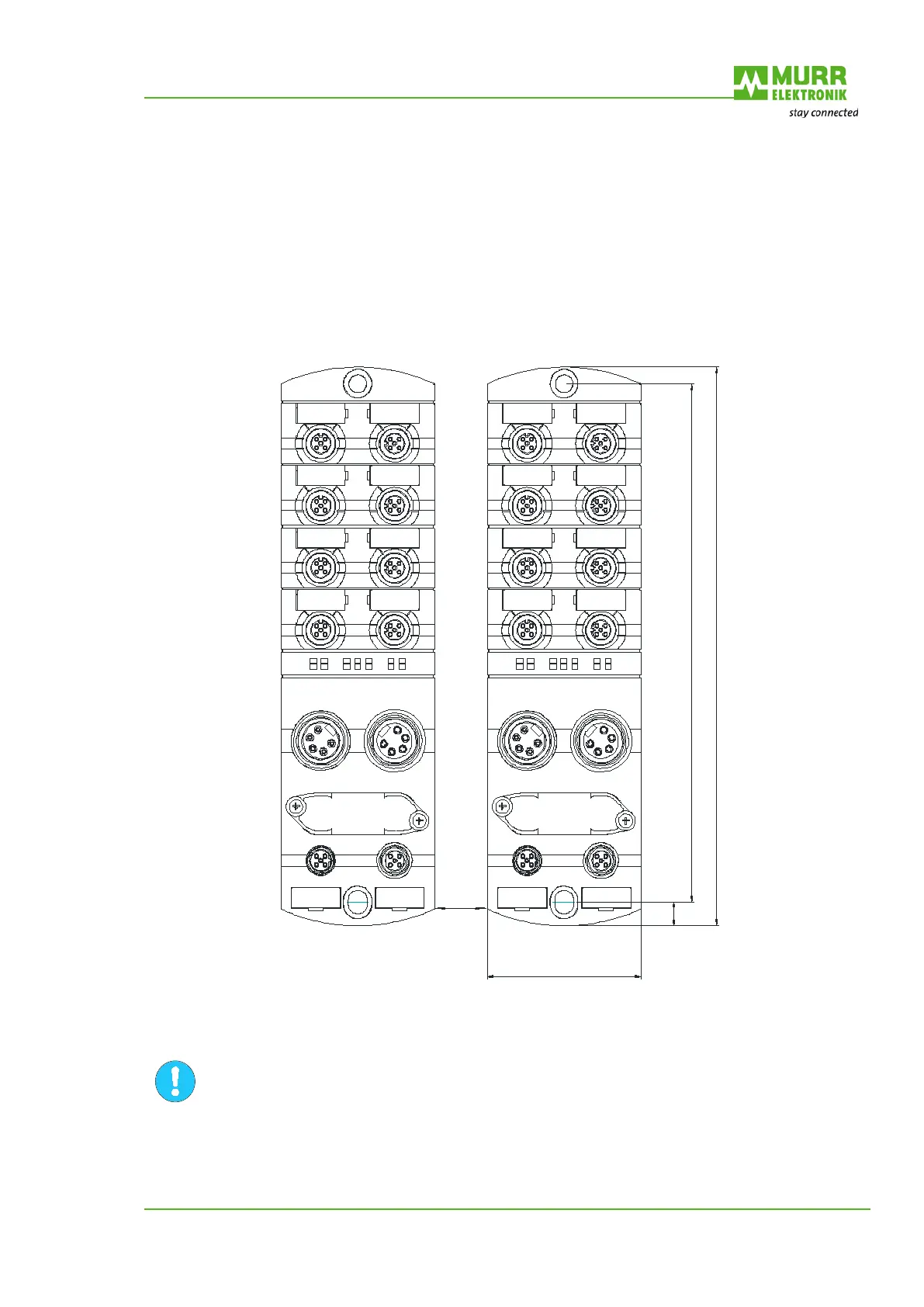

Fig. 3: Fixing Centers, Mounting pitch
To ensure correct installation and improved heat dissipation we recommend
observing minimum spacing of 3 mm when assembling the modules.
For angled connectors minimum spacing of 50 mm is required.
