Manual MVK-MP
24 V 3.5
3.2.20 Using Analog Actuators 0 to 20 mA or 4 to 20 mA
Actuators with signal 0 to 20 mA or 4 to 20 mA can be directly connected to the
analog voltage output.

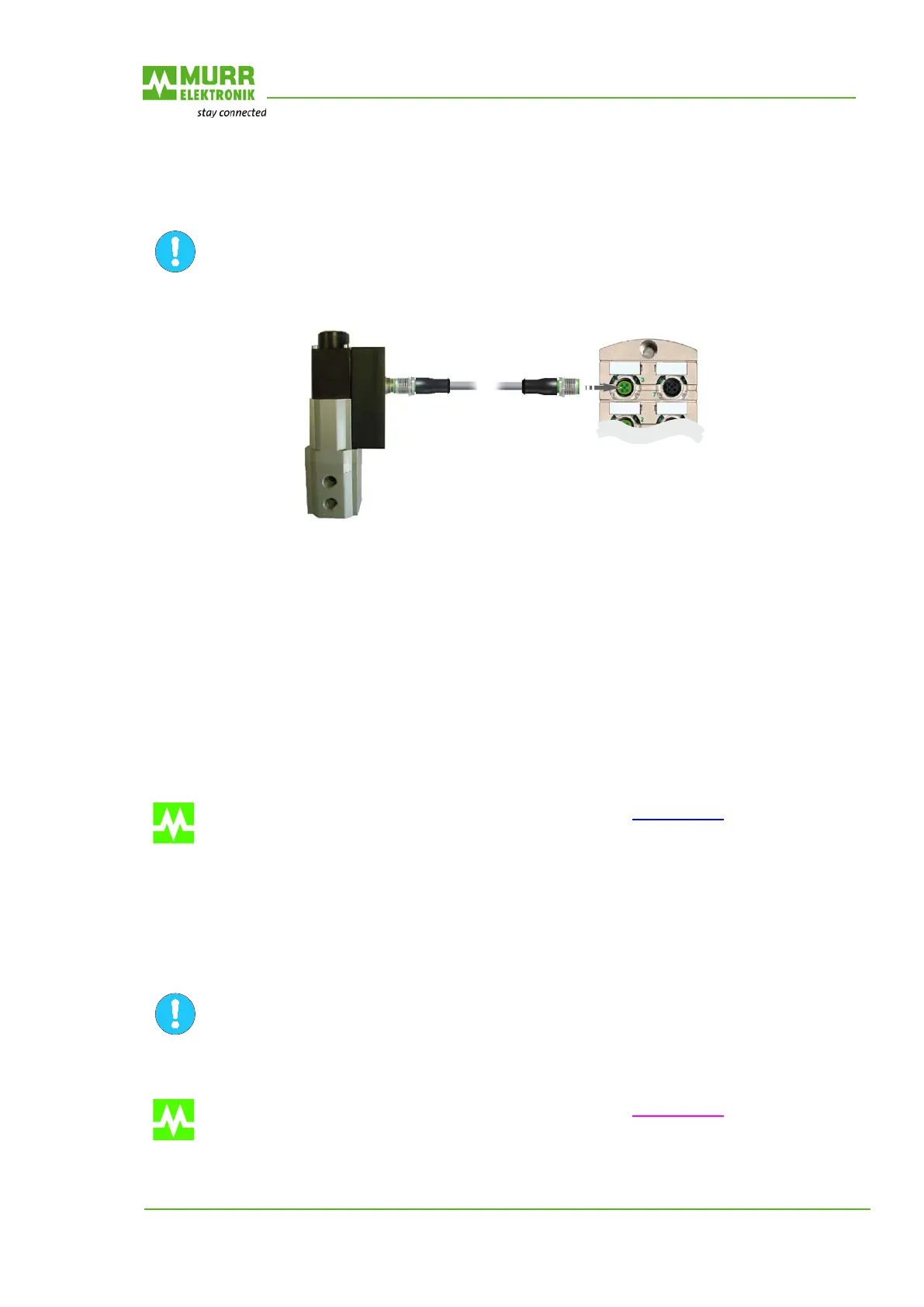

Fig. 19: Using Analog Actuators 0 to 20 mA or 4 to 20 mA
3.3 Connection
3.3.1 Connection of the Profibus
Cables
The bus cable has to meet the EN 50170 Part 2 (Cable type A) standard. With multi-wired cables,
ferrule ends have to be applied. We recommend our pre-wired Profibus cables in order to ensure simple
and reliable wiring.
Please refer to information on accessories in chapter Accessories
Connection to MVK-MP
Connect functional earth to the FE connection at the housing
Connect incoming Profibus cable to the incoming bus connection
Connect the next Profibus cable to the continuing bus connection
or screw terminator onto the bus connection .
Both ends of a Profibus segment must be fitted with a terminal resistor.
Please refer to information on accessories in chapter Accessories.
