Manual MVK-MP
V 3.5 23

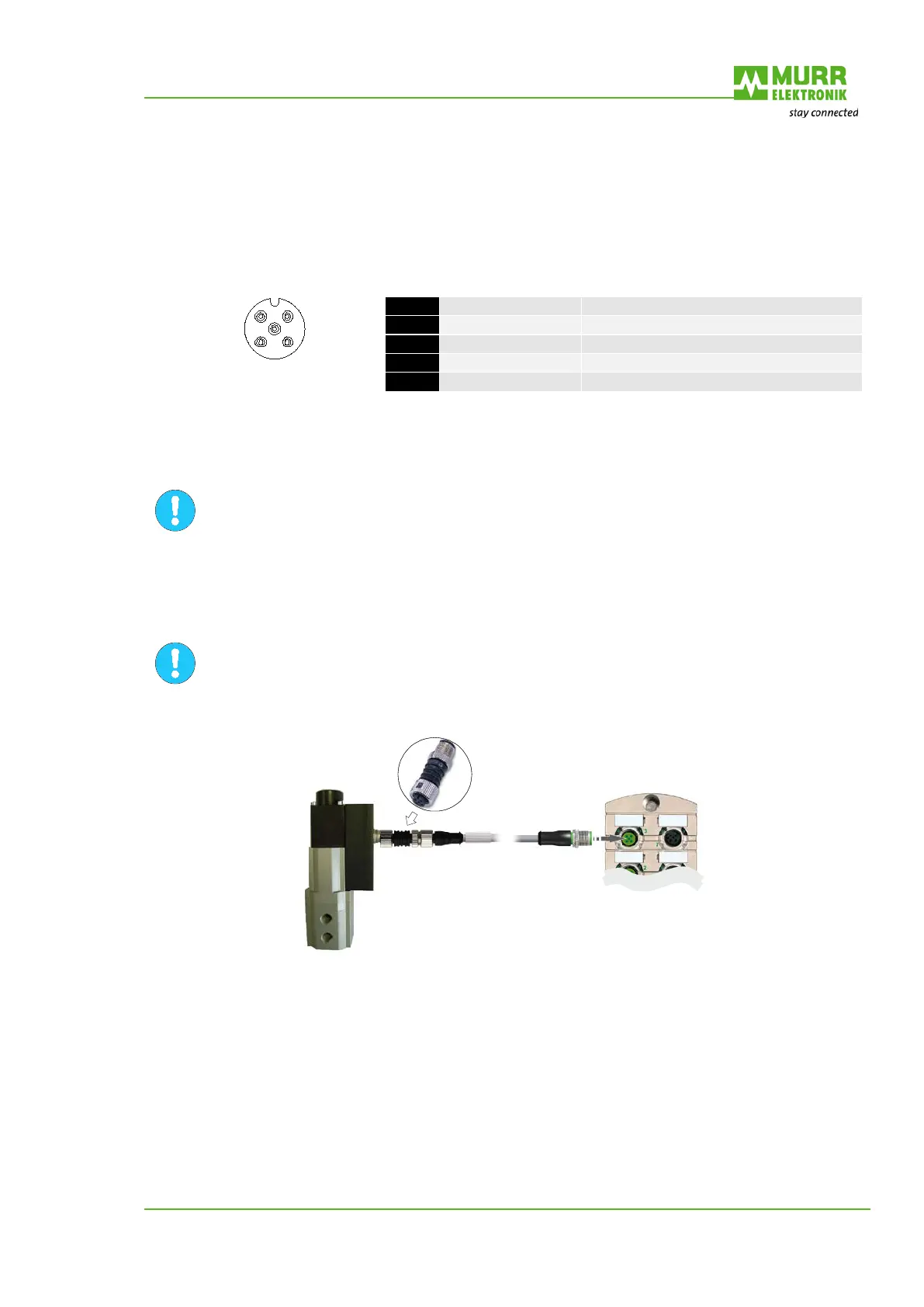

3.2.18 Connection of Analog Actuators
Actuators can be supplied via pin 1 (+24V) and pin 3 (0V) of the M12 sockets. A FET per M12 socket
protects the actuator supply. The maximum current for the actuator supply is 1.6 A per M12 socket.
Pin 1
+ 24 V / 1,6 A
Actuator supply
Pin 2
not connected
-
Pin 3
0 V
Reference potential
Pin 4
A +
Analog output
Pin 5
FE
Fig. 17: M12 Socket Assignment
Unused sockets have to be fitted with blind caps in order to ensure IP67
protection.
3.2.19 Using Analog Actuators 0 to 10 V or 2 to 10 V
Actuators with signals 0 to 10 V or 2 to 10 V have to be connected to the analog
voltage output via an M12 adapter (on the actuator) (Art.-No. 7000-42252-0000000).
Fig. 18: Using Analog Actuators 0 to 10 V or 2 to 10 V
3
2
5
1
4
