3.1.1 Functional Earth
The FE connection is located at the bottom of the module. The ground strap is pre-installed.

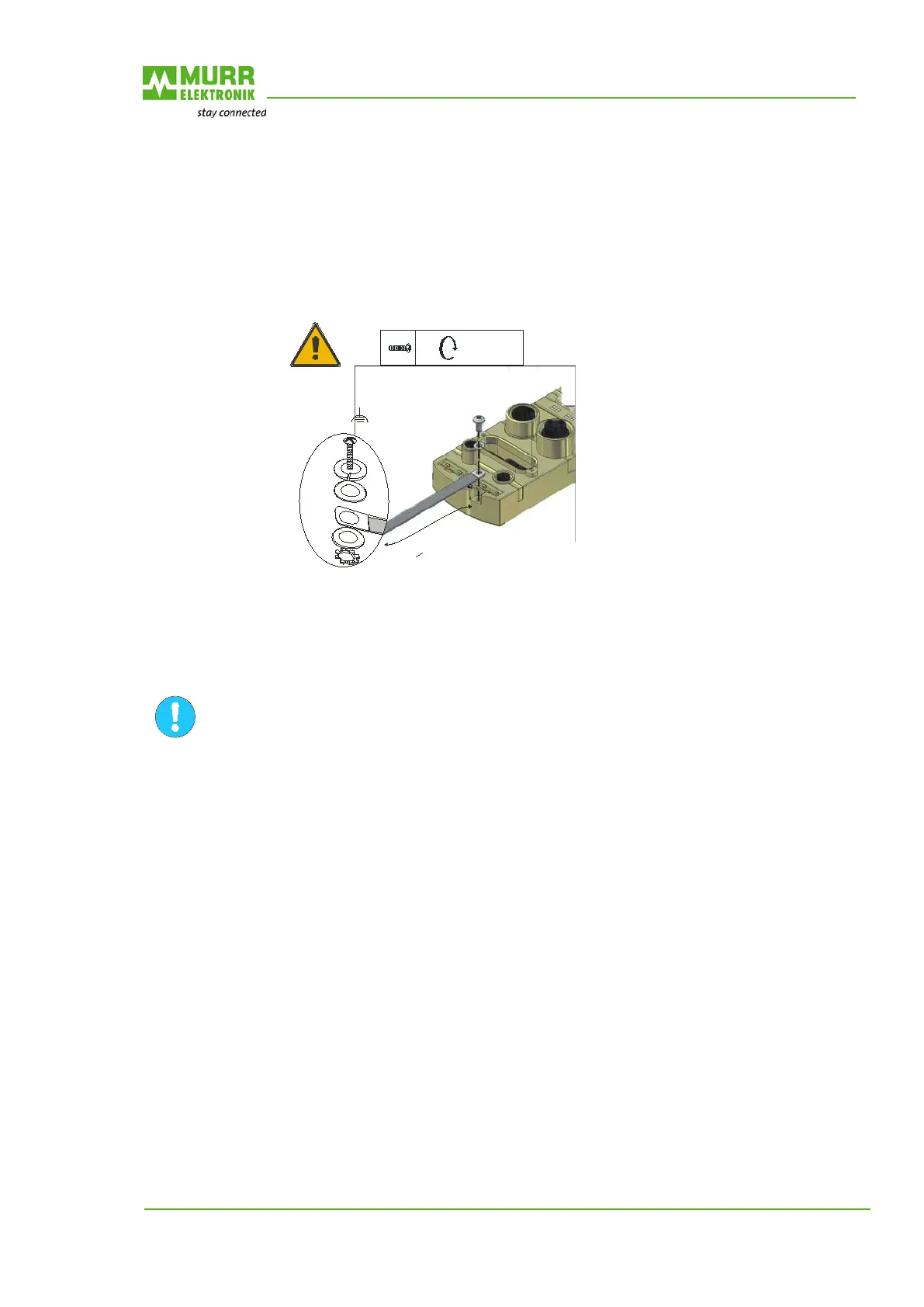

 FE connection (ground strap already connected)
Fig. 4: Functional Earth
Ensure a low impedance connection between the FE connection at the housing
and functional earth (see the information regarding EMC).
10,7 lb-in
1,2 Nm
+
-
0,2
+
-
1,8
M4
FE
Max. 10 cm
> 2,5 mm²
