MUTOH ValueCut VC-600 - Page 25

MAINTENANCE MANUAL
VCE-MM-02
25

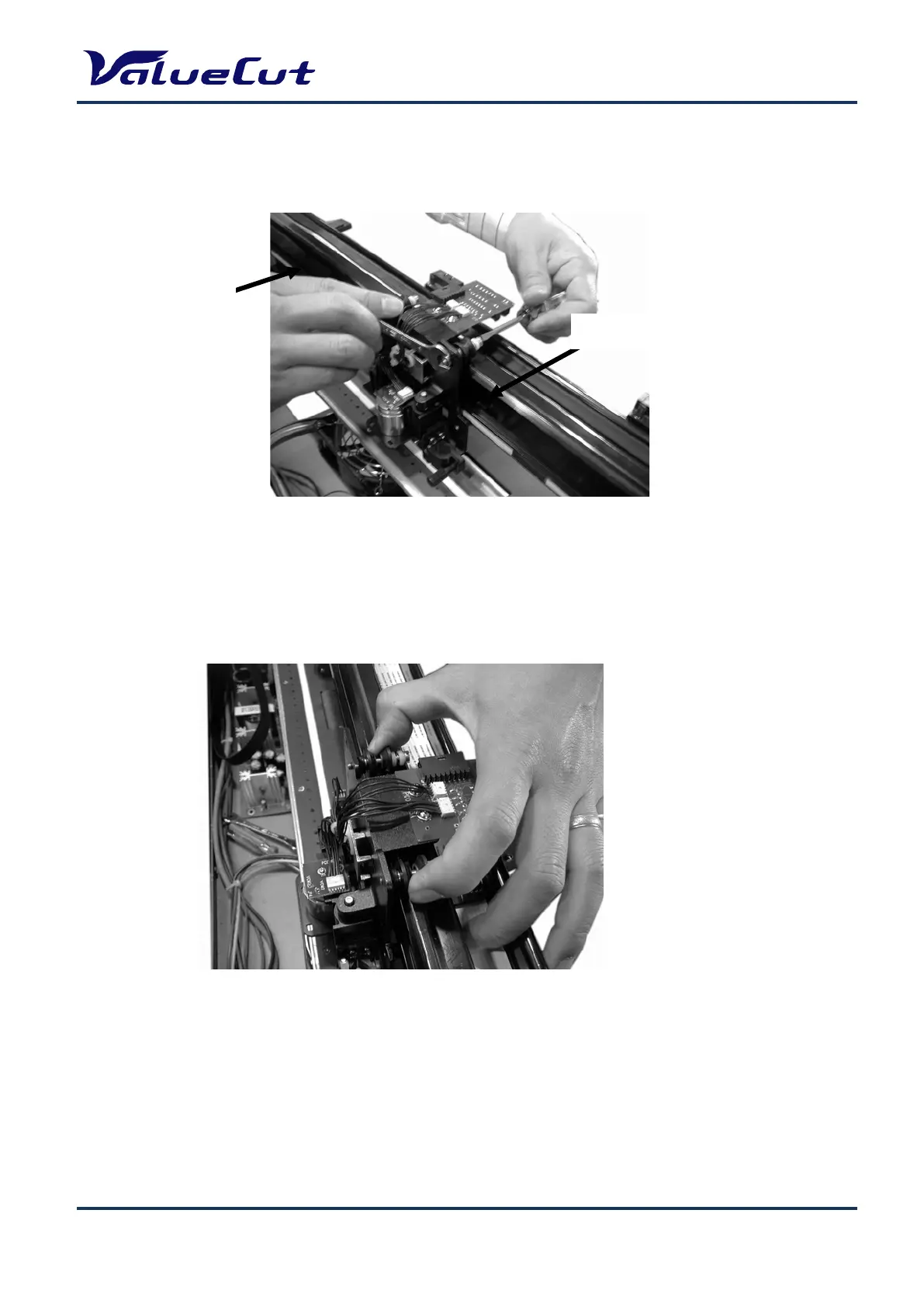

To Remove the Tool Carriage:
3. Unbolt and remove nut A and B, and then unscrew both Bolt A
and Bolt B until they are flush with the bracket.
Belt B
Belt A
1.
Separate the Sprung Washer/Rollers as seen in the figure
above.
