Replacing the VCM PC Board
The following is what is involved in replacement of the VCM PC board.
Note1: If the Pinch Roller Sensor is still not effective after replacement the Tool Carriage or the Flat
Cable may need replacement.

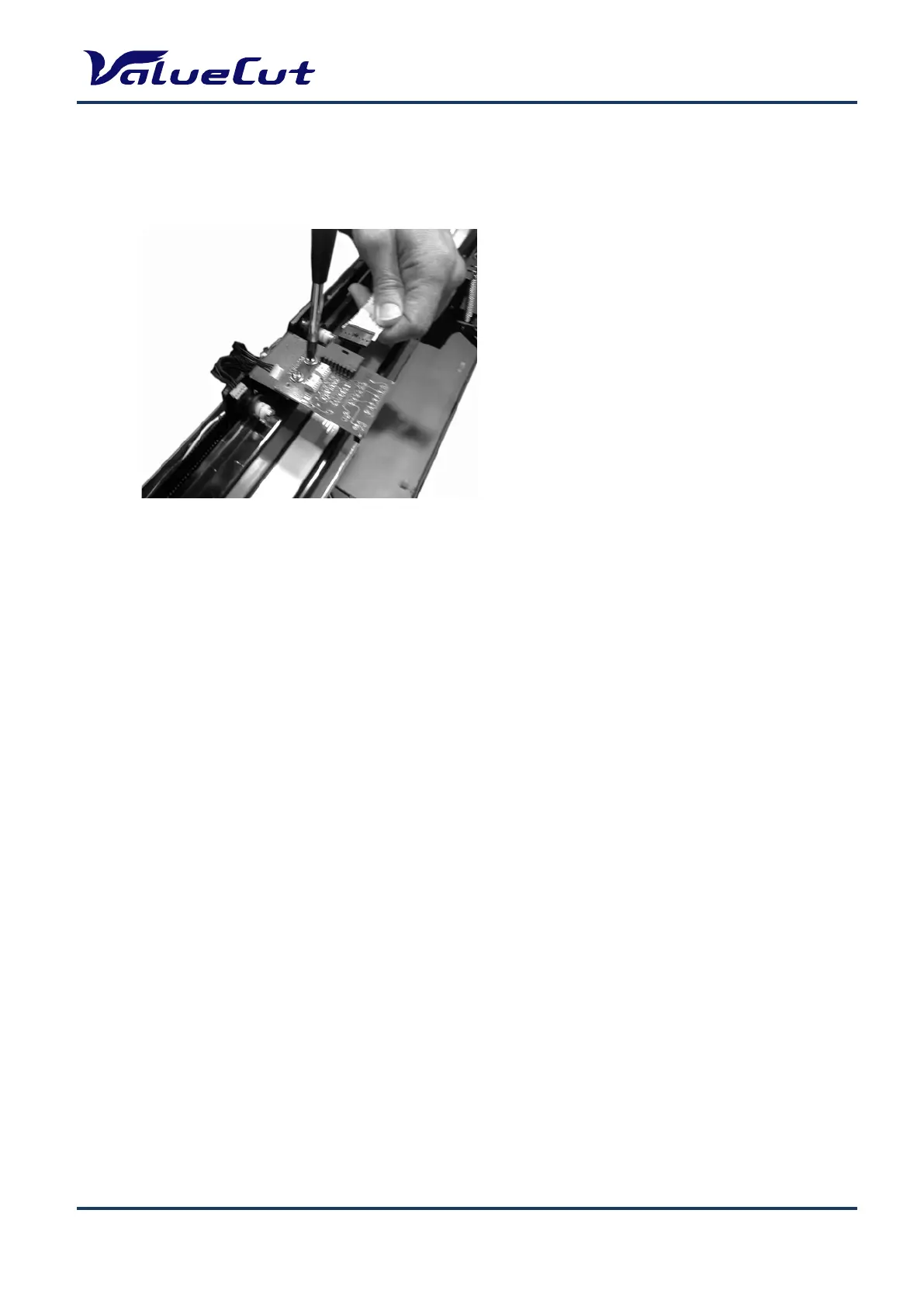

2. Unplug the two sensor connectors, and then unscrew the
two PC board screws to remove the board.
