MAINTENANCE MANUAL
VCE-MM-02
41

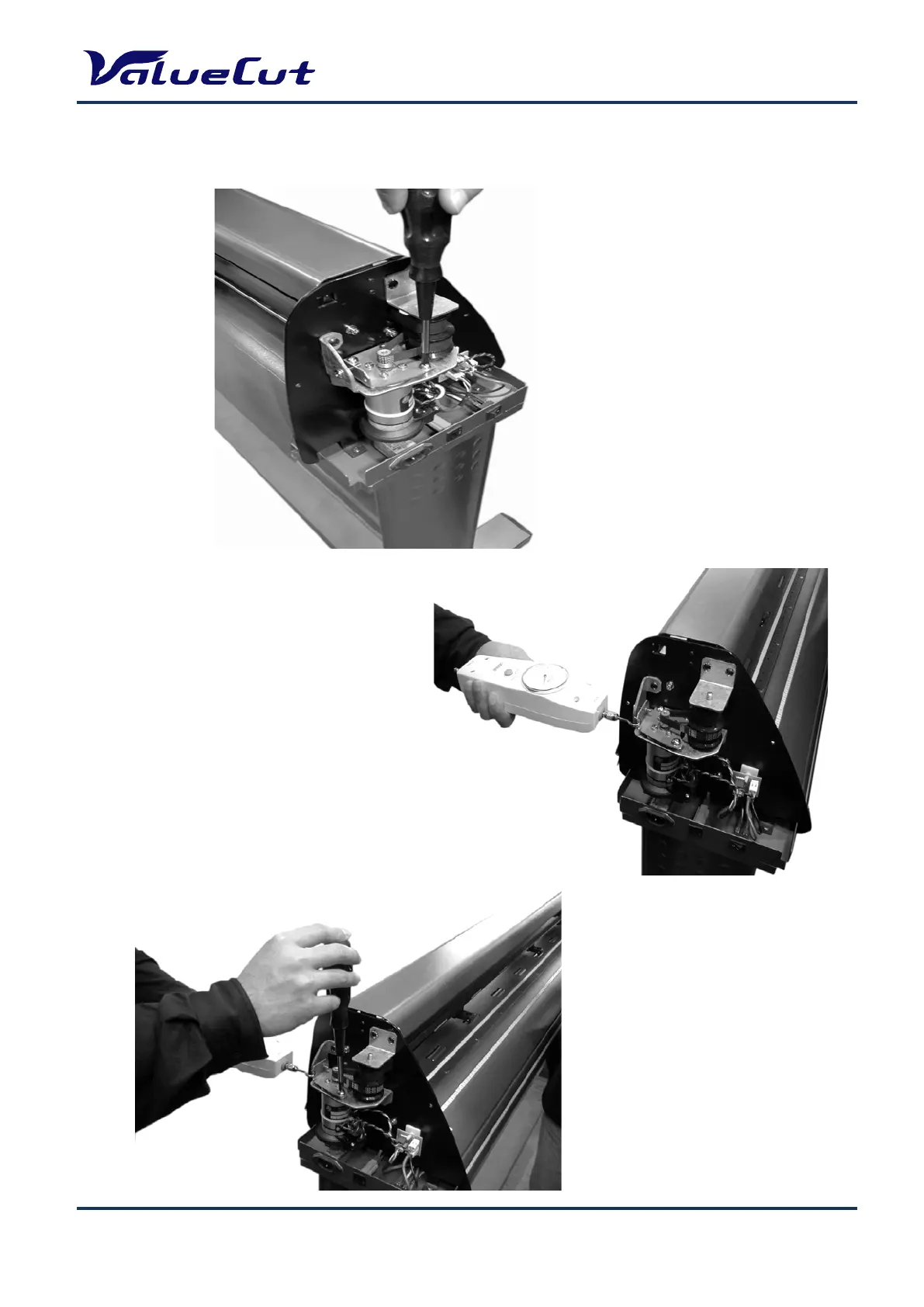

Adjusting the Y Motor Tension Belt
1. Loosen the 3 retaining screws
locking the tension bracket in
place but do not remove them.
2. Place the push-
gauge's hook-arm at the hole
of Y motor bracket and pull
the motor toward yourself
along the direction parallel to
the line that passes through
the motor shaft and the drive
pulley shaft.
3. Once the desired tension is
found tighten the 3 retaining
screws to lock the tension
bracket in place.
