MAINTENANCE MANUAL
VCE-MM-02
40

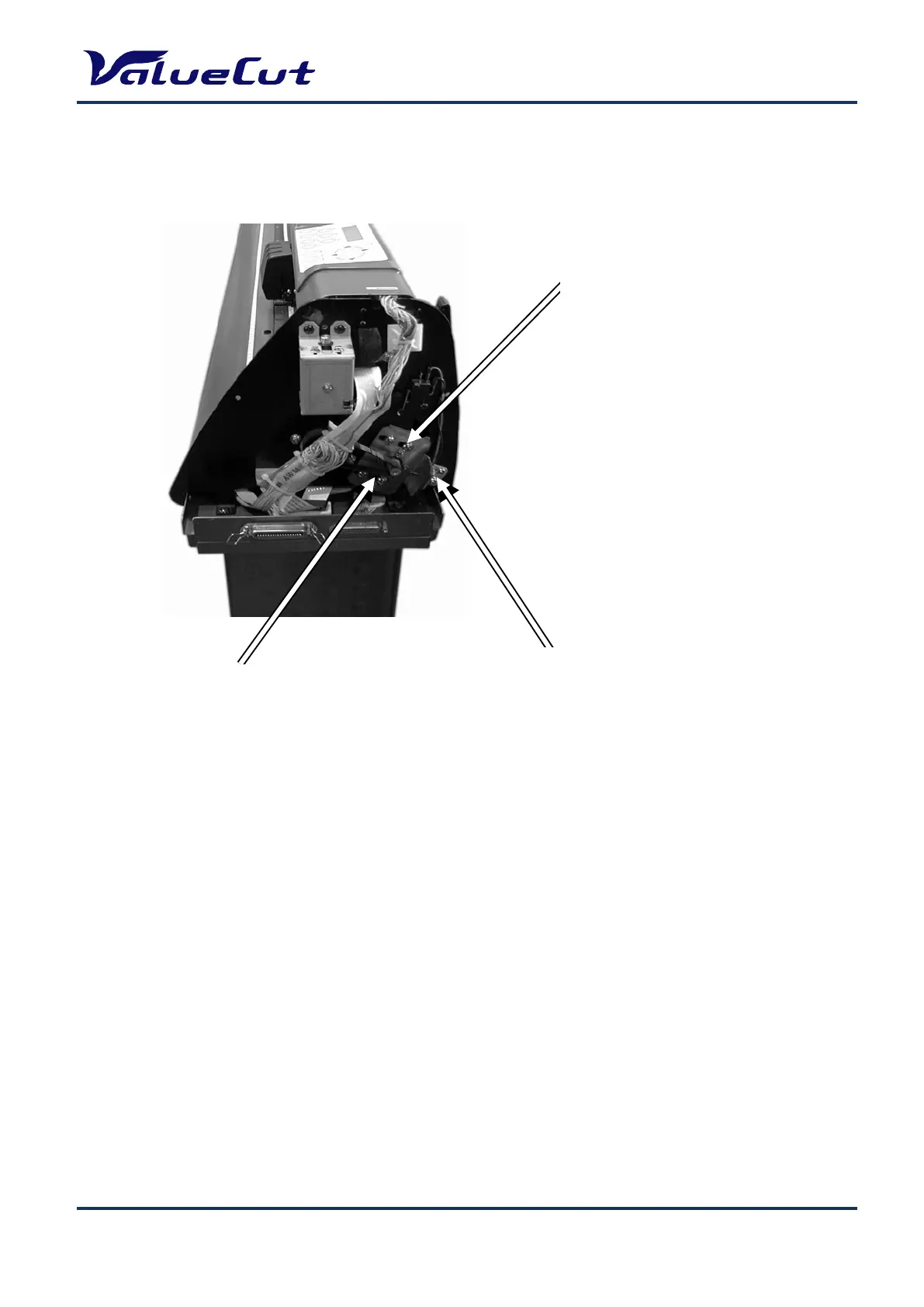

Adjusting the X Motor Tension Belt
Note: The belt connecting the drum and X motor needs to be tightened to a tension of 4 kg.
2. Place the push-pull tension
gauge's hook-arm at the hole
of X motor bracket and pull
the motor toward yourself
along the direction parallel to
the racket edge, and keep it at
the 4kg tension position.
1. Loosen the 4 retaining screws
locking the X-motor bracket in
place.
3. Tighten the 4 retaining screws
to lock the bracket in place.
4. Fix the tension retaining screw.
