Replacing the Y-Motor
The following steps are those involved in the replacement of the Y-motor:

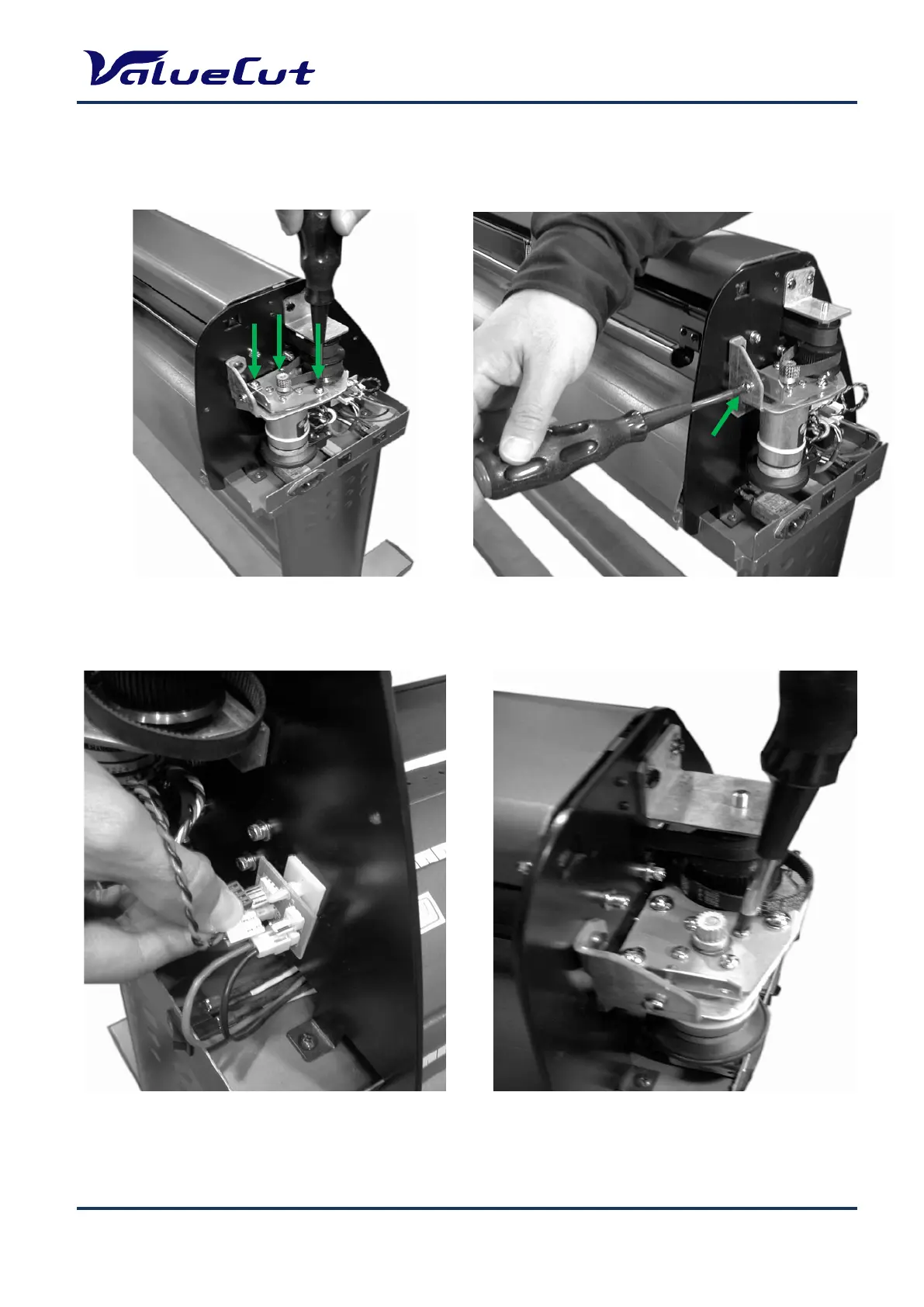

1. Loosen the all 3 tension-bracket retaining screws as well as the tension adjustment screw, but do
not remove them.
2. Depress the jumper clips, and pull to
unplug the 2 Y-motor Jumpers.
3. Lift the belt off of the Y-motor,then unscrew
and remove the 4 Y-motor screws.
