MAINTENANCE MANUAL
VCE-MM-02
28

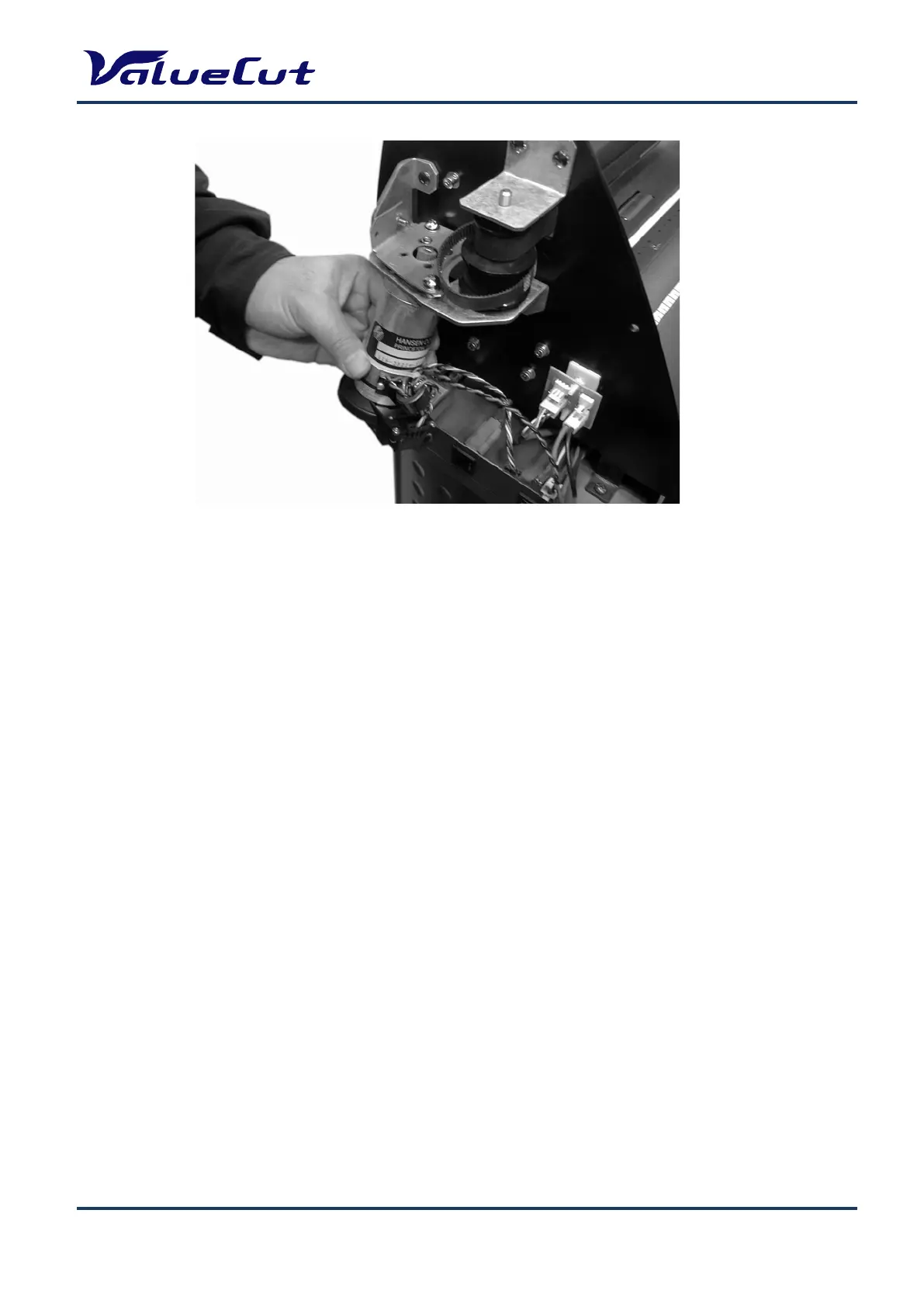

Note1: To install or replace the Y-motor, simply reverse the steps to remove it.
Note2: After the Y-motor is in place, you must adjust the Y- motor belt tension as described in the
Y-motor belt tension adjustment section of this chapter.
Note3: Make the Y-motor jumper reconnection the last step after the Y-motor tension belt adjustment
when you have finished installing or replacing the Y-motor.
