MAINTENANCE MANUAL
VCE-MM-02
42

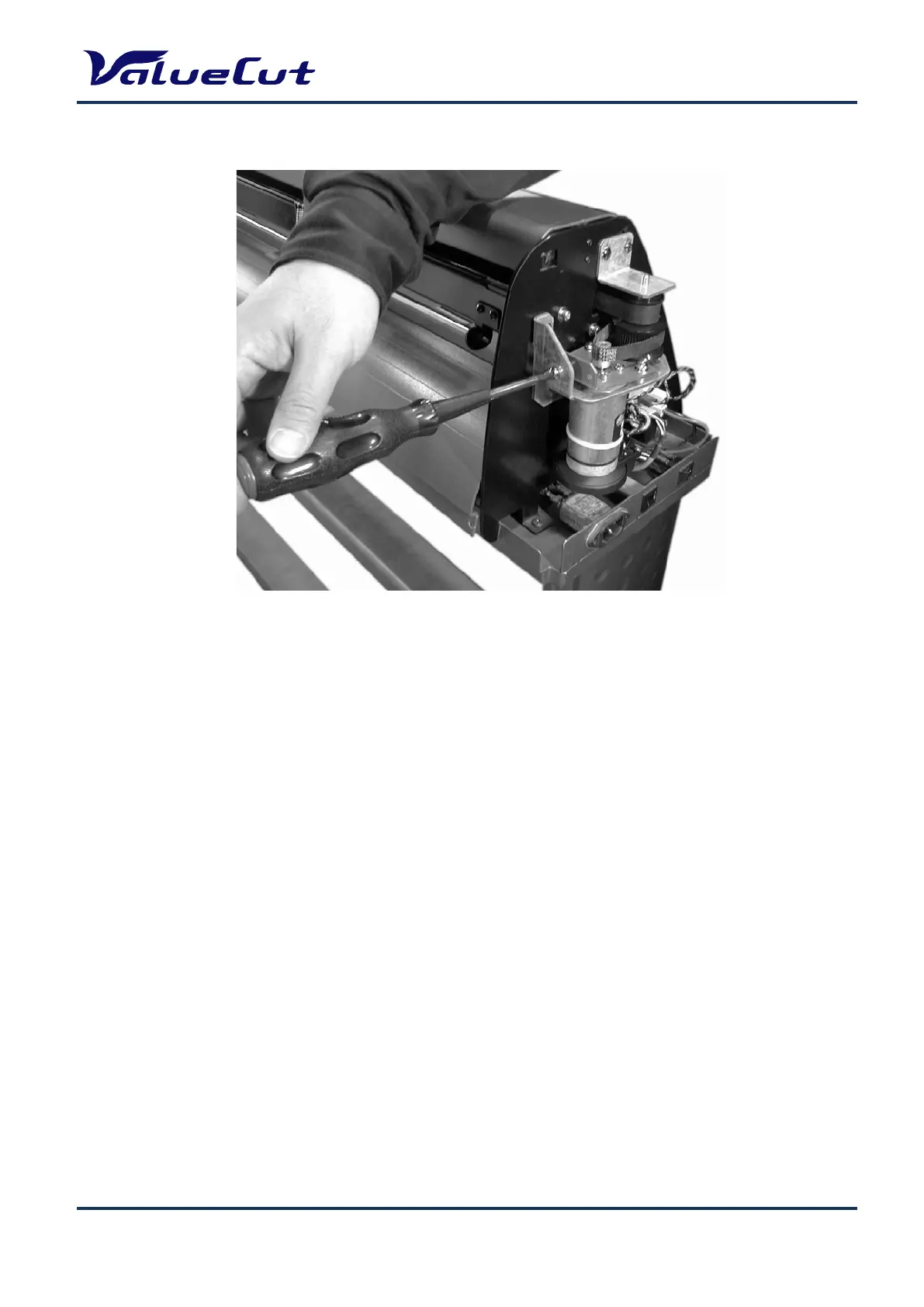

Note: The belt connecting the drive pulley and Y motor needs to be tightened up with a tension of 4
kg.
3.
Tighten the tension screw to retain the tension.
