MUTOH ValueCut VC-600 - Page 31

MAINTENANCE MANUAL
VCE-MM-02
31
Note: To install or replace the main board simply reverse the steps to remove it.

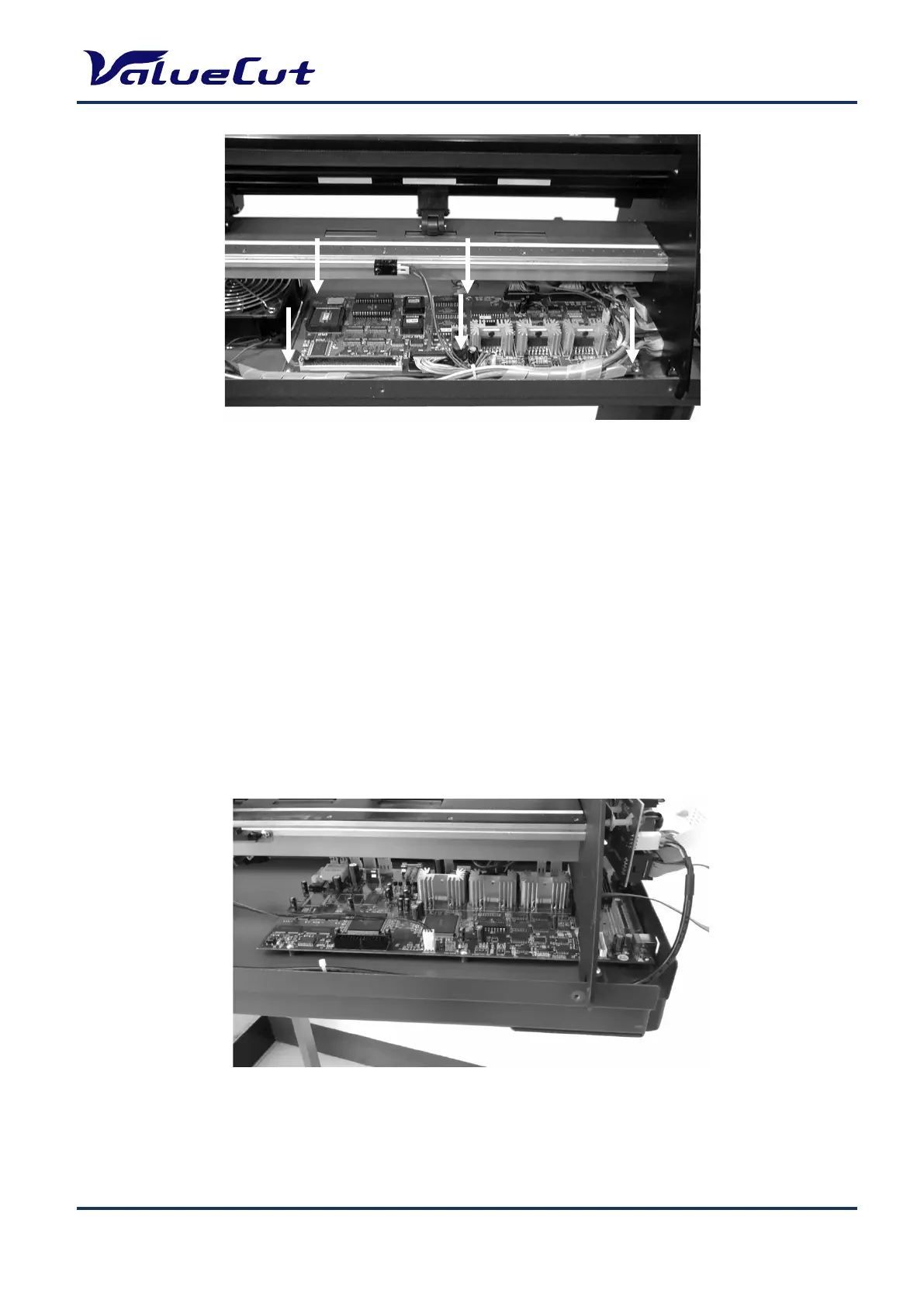

Note: Main board attachment position changed as below (refer to the below image) from the “Serial
Interface connector (RS-232C) 9pin type machines.(Serial see below)
Remove the X motor before replacing the Main board.
VC-600 EVC2U0070~
VC-1300 EVC5U0068~
VC-1800 EVC7U0112~
1. Unscrew and remove the 5 restraining screws, and the pop out support to completely
remove the main board.
