(Revised 2011-07-21) Page 17 of 158

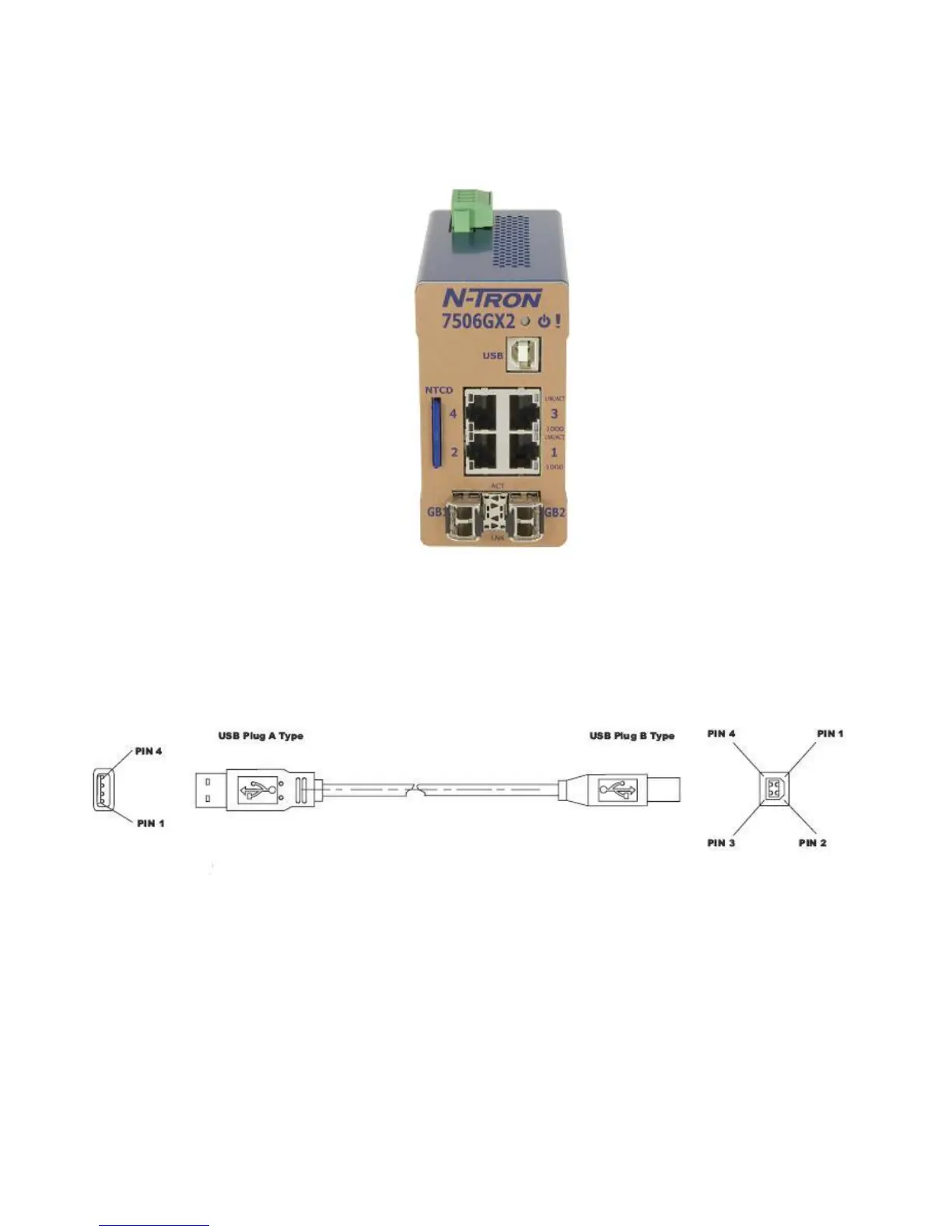

USB INTERFACE
The 7506GX2 Series switches provide a USB interface accessed via the USB connector labeled as ―USB‖
on the unit. This is used to access the Command Line Interpreter (CLI).
USB Cable
Connect the USB port of your PC and the 7506GX2 Series Switch using a standard USB cable. You will
require a cable with a Type A connector for the PC end, and a Type B connector for the 7506GX2 Series
end.
Standard USB cables are readily available from a variety of computer stores.
HyperTerminal
The following configuration should be used in HyperTerminal:
Port Settings: 115200
Data Bits: 8
Parity: NONE
Stop bits: 1
Flow Control: NONE
