N-Ring – Status, Continued…

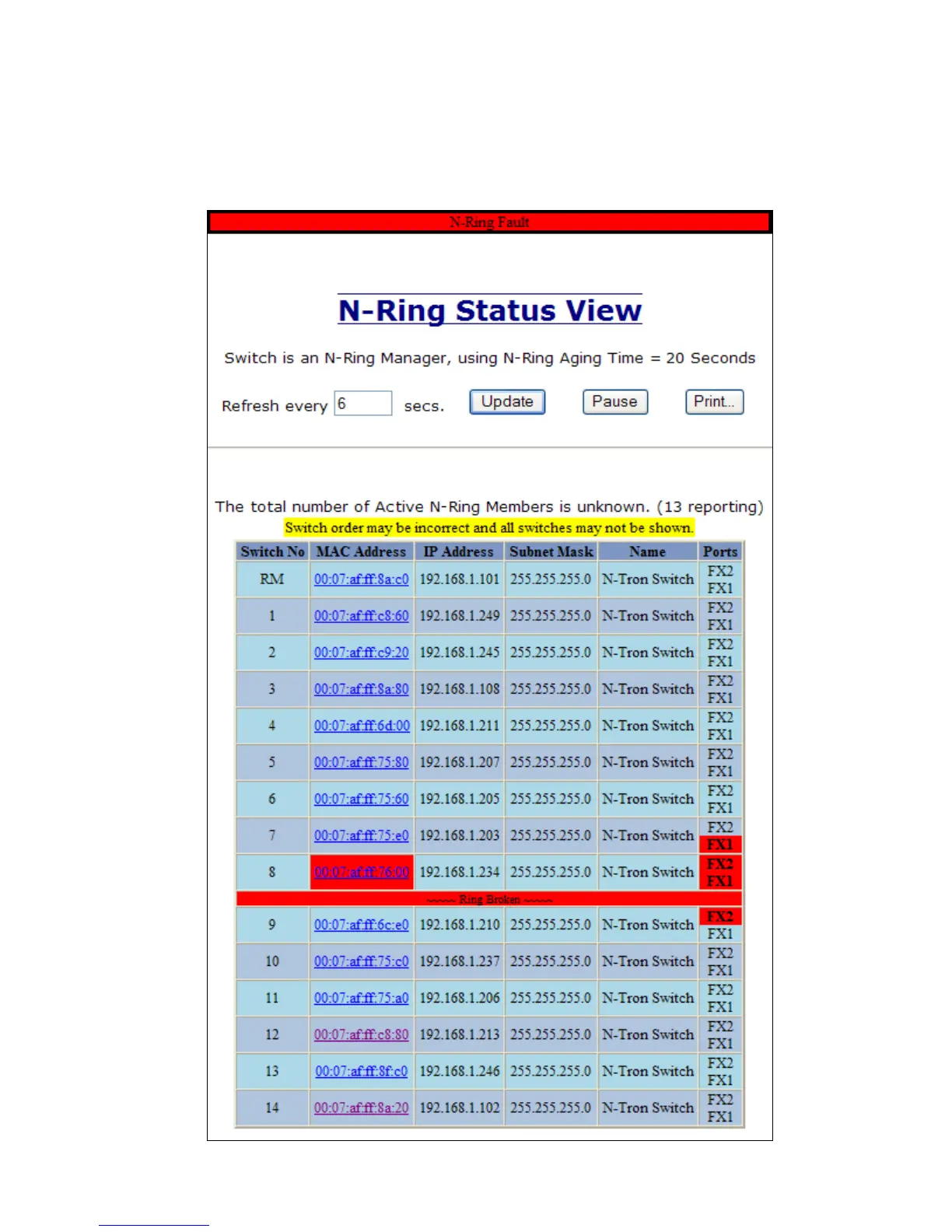

Below is an example of N-Ring Status from an N-Ring Manager with a faulted N-Ring. The red fields on
the N-Ring Map show problems. Ports that are red indicate that the port is not linked. MAC addresses that
are red indicate that there is no communication to that switch. The red ―Ring Broken‖ line shows where the
N-Ring is broken.
