Injection Pump (for Smoke Reduction Device)
IMPORTANT

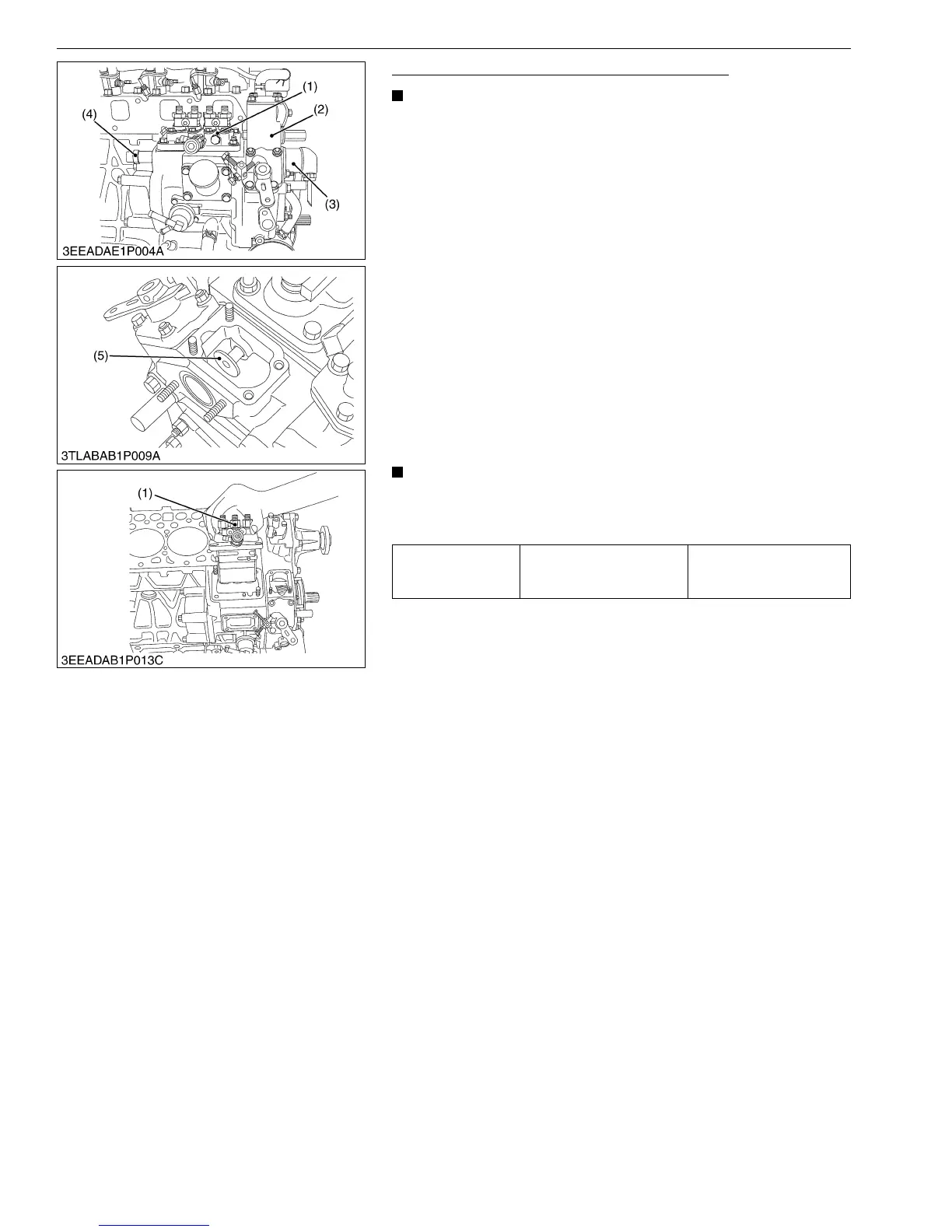

• Before you remove the injection pump assembly (1),
remove the smoke reduction device (2), hi-idling body (4),
solenoid (3) and solenoid guide (5).
1. Remove the smoke reduction device (2).
2. Remove the hi-idling body (4).
3. Remove the solenoid (3).
4. Remove the solenoid guide (5).
5. Remove the injection pump assembly (1).
(When reassembling)
• Before you install the smoke reduction device (2), hi-idling body
(4), solenoid (3) and solenoid guide (5), install the injection
pump first into position.
• Replace the hi-idling body gasket with a new one.
• Before you attach the smoke reduction device (2) to the gear
case, make sure that the solenoid guide (5) is at the initial
position.
• When you install the solenoid (3), keep the O-ring in position.
• Put the push rod of the solenoid into the hole at the center of the
solenoid guide (5).
IMPORTANT
• If you replace new smoke reduction device, it is necessary
to adjust it.
Get the adjustment procedure from KUBOTA.
M00000003ENS0080US1
Tightening torque Hi-idling body
45 to 49 N·m
4.5 to 5.0 kgf·m
33 to 36 lbf·ft
(1) Injection Pump Assembly
(2) Smoke Reduction Device
(3) Solenoid
(4) Hi-idling Body
(5) Solenoid Guide
