Nanni N4.40 User Manual

GENERAL
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
G-40

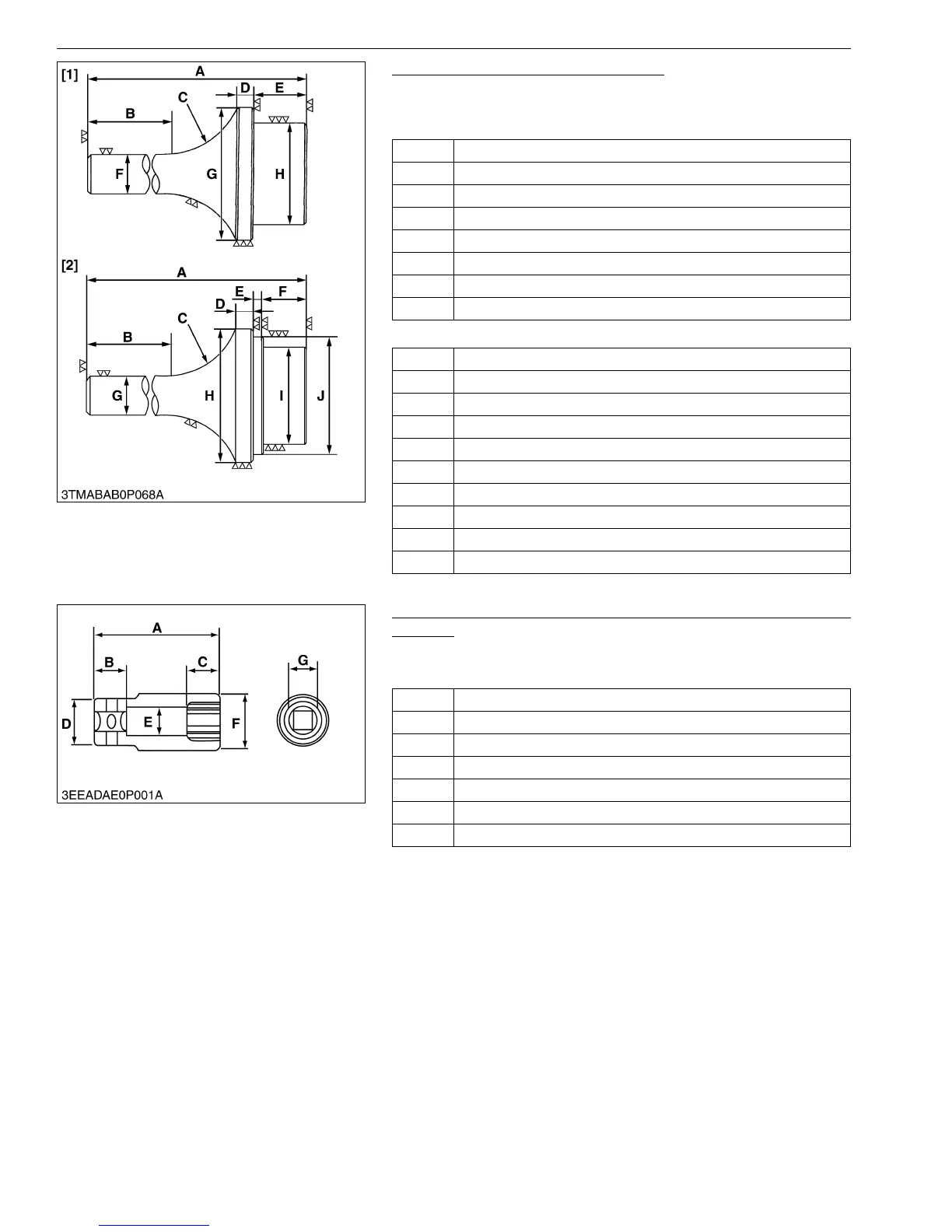

Crankshaft Bearing 1 Replacing Tool
Application
• To press out and press fit the crankshaft bearing 1.
[1] Extracting tool
[2] Inserting tool
M00000003GEG0061US1
Socket Wrench for Crank Pulley Nut (46 mm Deep Socket
Wrench)
Application
• To loosen and tighten the mounting nut of fan drive pulley.
M00000003GEG0062US1
A 135 mm (5.31 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 20 mm (0.79 in.)
F 20 mm dia. (0.79 in. dia.)
G 64.80 to 64.90 mm dia. (2.552 to 2.555 in. dia.)
H 59.80 to 59.90 mm dia. (2.355 to 2.358 in. dia.)
A 130 mm (5.12 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 9 mm (0.4 in.)
E 4 mm (0.2 in.)
F 20 mm (0.79 in.)
G 20 mm dia. (0.79 in. dia.)
H 68 mm dia. (2.7 in. dia.)
I 59.80 to 59.90 mm dia. (2.355 to 2.358 in. dia.)
J 64.80 to 64.90 mm dia. (2.552 to 2.555 in. dia.)
A 100 mm (3.94 in.)
B 25.0 mm (0.984 in.)
C 27.0 mm (1.06 in.)
D 45.0 mm dia. (1.77 in. dia.)
E 35.0 mm dia. (1.38 in. dia.)
F 62.5 mm dia. (2.46 in. dia.)
G 46.0 mm (1.81 in.)
