ENGINE
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
1-S57

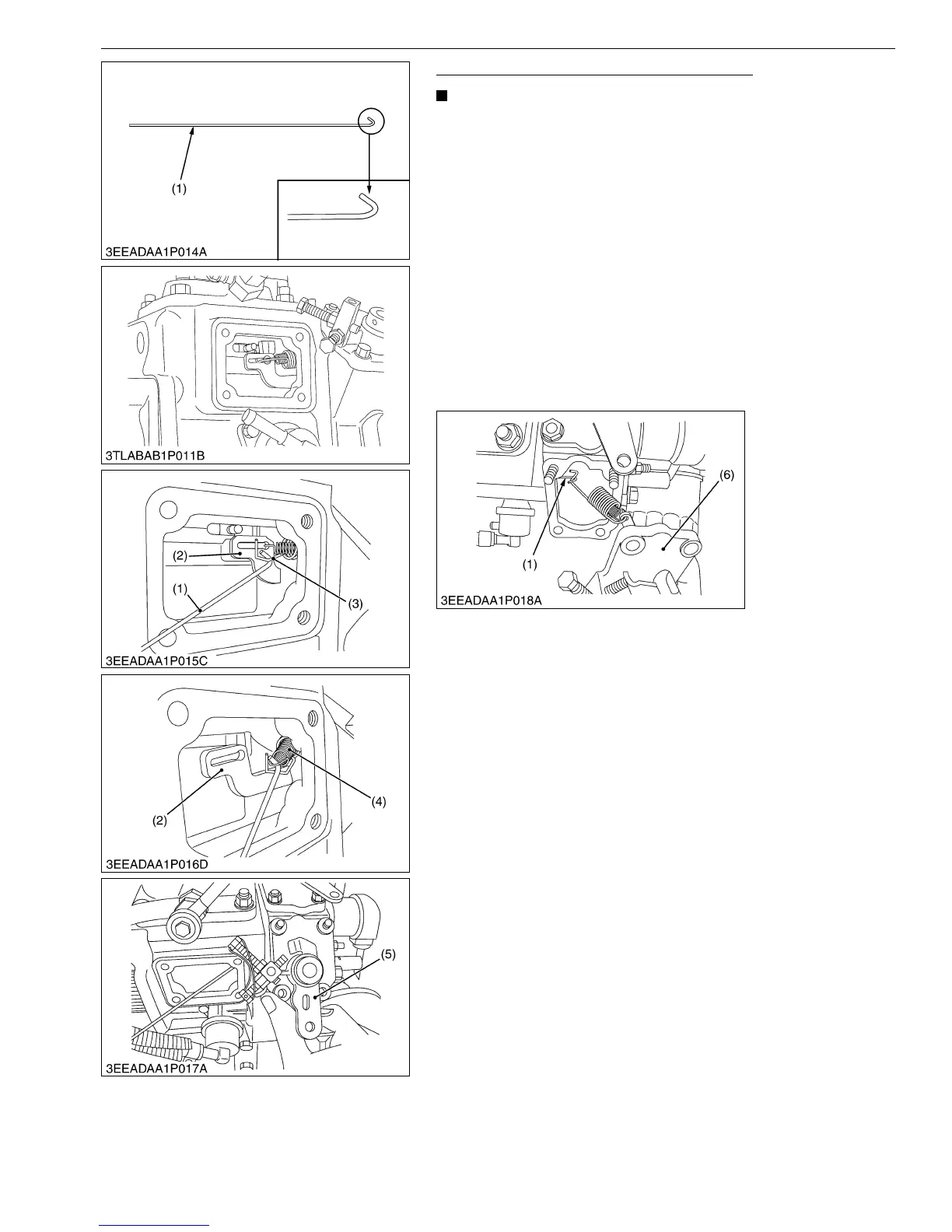

Governor Springs and Speed Control Plate
• Specified tool (1)
1.2 mm (0.047 in.) diameter hard wire with its end hooked,
total length 200 mm (7.87 in.).
The point of the wire is bent like a hook to hang the
governor springs.
1. Remove the injection pump cover.
2. Remove the mounting nuts and bolts of the speed control plate
(6).
3. Use the specific tool (1) to release the large governor spring (3)
from the fork lever (2).
4. Use the specific tool (1) to release the small governor spring (4)
from the fork lever (2).
5. Set the speed control lever (5) as you can see in the figure.
6. Remove the speed control plate (6). Do not let the large (3) and
small (4) governor springs come off this plate and fall in the gear
case.
(To be continued)
(1) Specific Tool
(2) Fork Lever
(3) Large Governor Spring
(4) Small Governor Spring
(5) Speed Control Lever
(6) Speed Control Plate
To Next Page
