Nanni N4.40 - Auxiliary Socket for Fixing Crankshaft Sleeve

GENERAL
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
G-41
Auxiliary Socket for Fixing Crankshaft Sleeve
Application
• To fix the crankshaft sleeve of the diesel engine.
(To be continued)

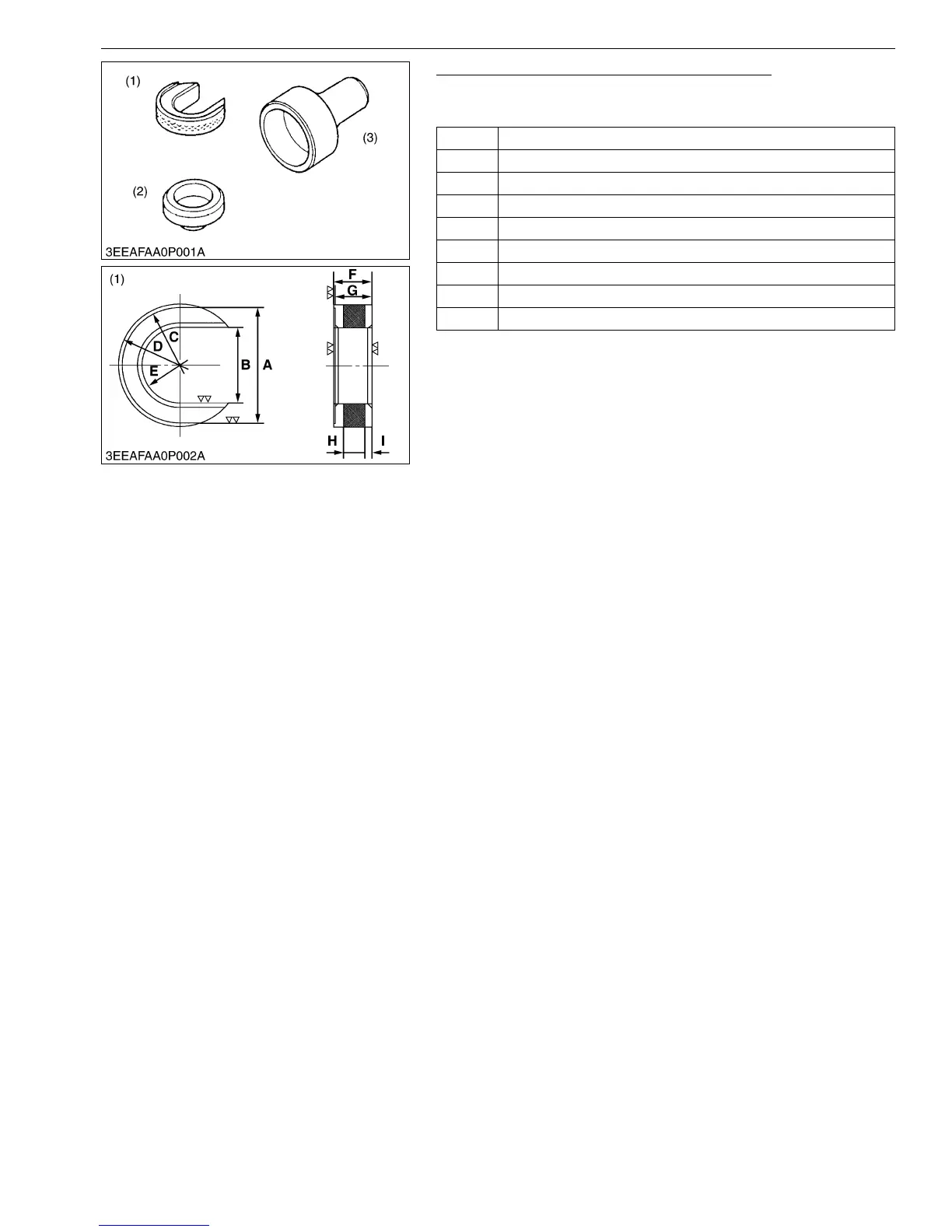

A 80.0 mm (3.15 in.)
B 60.10 to 60.30 mm (2.367 to 2.374 in.)
C 80.0 mm dia. (3.15 in. dia.)
D 85.0 mm dia. (3.35 in. dia.)
E 60.10 to 60.30 mm dia. (2.367 to 2.374 in. dia.)
F 26.30 to 26.40 mm (1.036 to 1.039 in.)
G 25.85 to 25.90 mm (1.018 to 1.019 in.)
H 15.0 mm (0.591 in.)
I 5.0 mm (0.20 in.)
(1) Stopper
(2) Sleeve Guide
(3) Auxiliary Socket for Pushing
