Nanni N4.40 User Manual

ENGINE
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
1-S61
Gear Case (for Side PTO Model)
1. Remove the gear case (1).
2. Remove the O-rings (2).
(When reassembling)
• Replace the gear case gasket and O-rings.
• Make sure that there are 4 O-rings (2) in the gear case (1).
• Apply a thin layer of engine oil to the oil seal.
Then install the oil seal not to come off the lip.
• Before you install the gear case gasket, apply an adhesive that
does not become dry.
M00000003ENS0084US1
Gear Case
1. Remove the hour meter gear case (if attached).
2. Remove the gear case (1).
3. Remove the O-rings (2).
(When reassembling)
• Replace the gear case gasket and O-rings (2).
• Replace the hour meter gear case gasket with a new one.
• Make sure that there are 4 O-rings (2) in the gear case (1).
• Apply a thin layer of engine oil to the oil seal.
Then install the oil seal not to come off the lip.
• Before you install the gear case gasket, apply an adhesive that
does not become dry.
M00000003ENS0085US1
Crankshaft Oil Slinger
1. Remove the crankshaft collar (3).
2. Remove the O-ring (2).
3. Remove the crankshaft oil slinger (1).
(When reassembling)
• Attach the crankshaft collar (3) after you install the gear case to
the cylinder body.
M00000003ENS0086US1
Idle Gear
1. Remove the external snap ring.
2. Remove the idle gear collar.
3. Remove the idle gear (2).
(When reassembling)
• Align each gear with its mark.
– Idle gear (2) and crank gear (4)
– Idle gear (2) and cam gear (3)
– Idle gear (2) and injection pump gear (1)
M00000003ENS0087US1

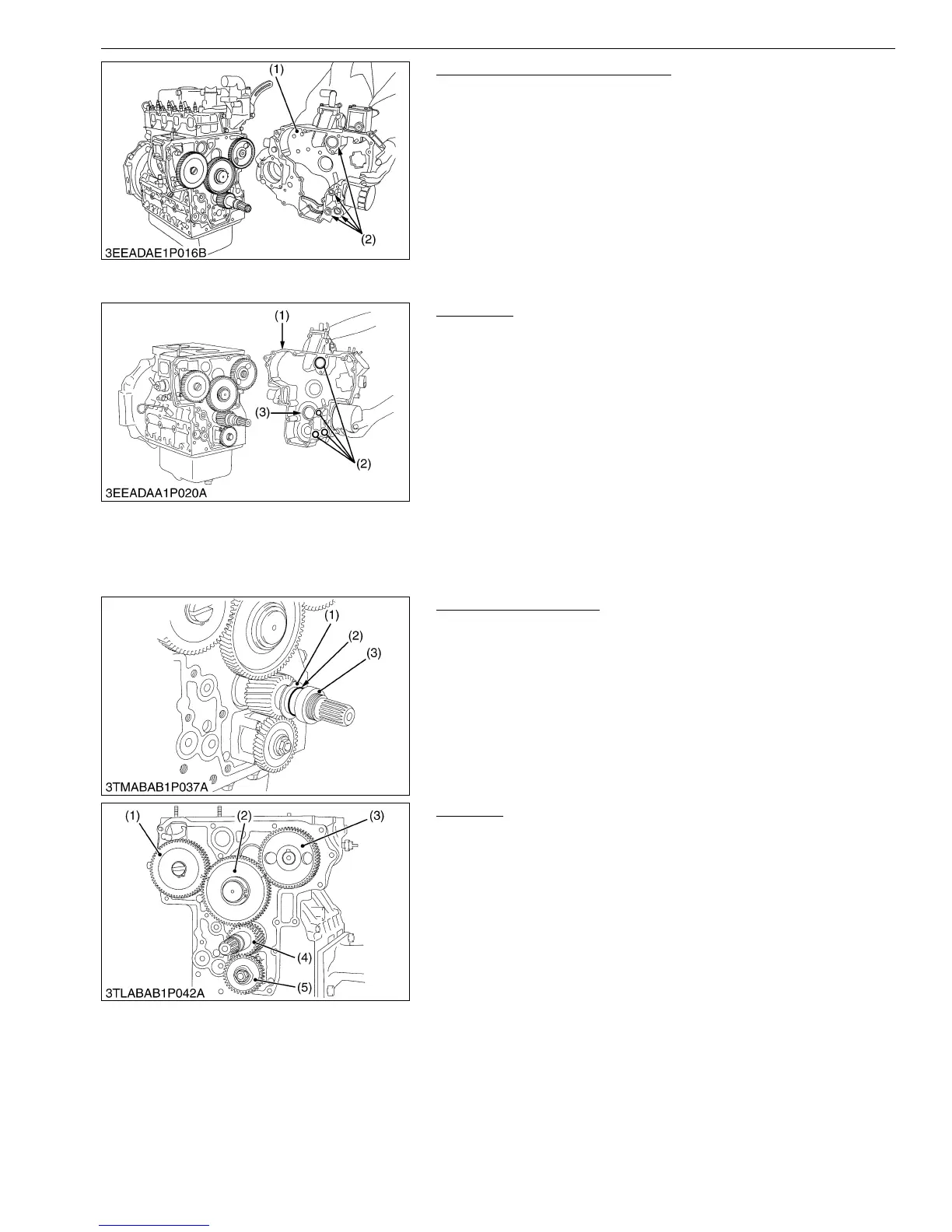

(1) Gear Case (2) O-rings
(1) Gear Case
(2) O-ring
(3) Oil Seal
(1) Crankshaft Oil Slinger
(2) O-ring
(3) Crankshaft Collar
(1) Injection Pump Gear
(2) Idle Gear
(3) Cam Gear
(4) Crank Gear
(5) Oil Pump Drive Gear
