Nanni N4.40 User Manual

ENGINE
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
1-S60
Idle Gear 2 and Hydraulic Pump Base Assembly
(for Side PTO Model)

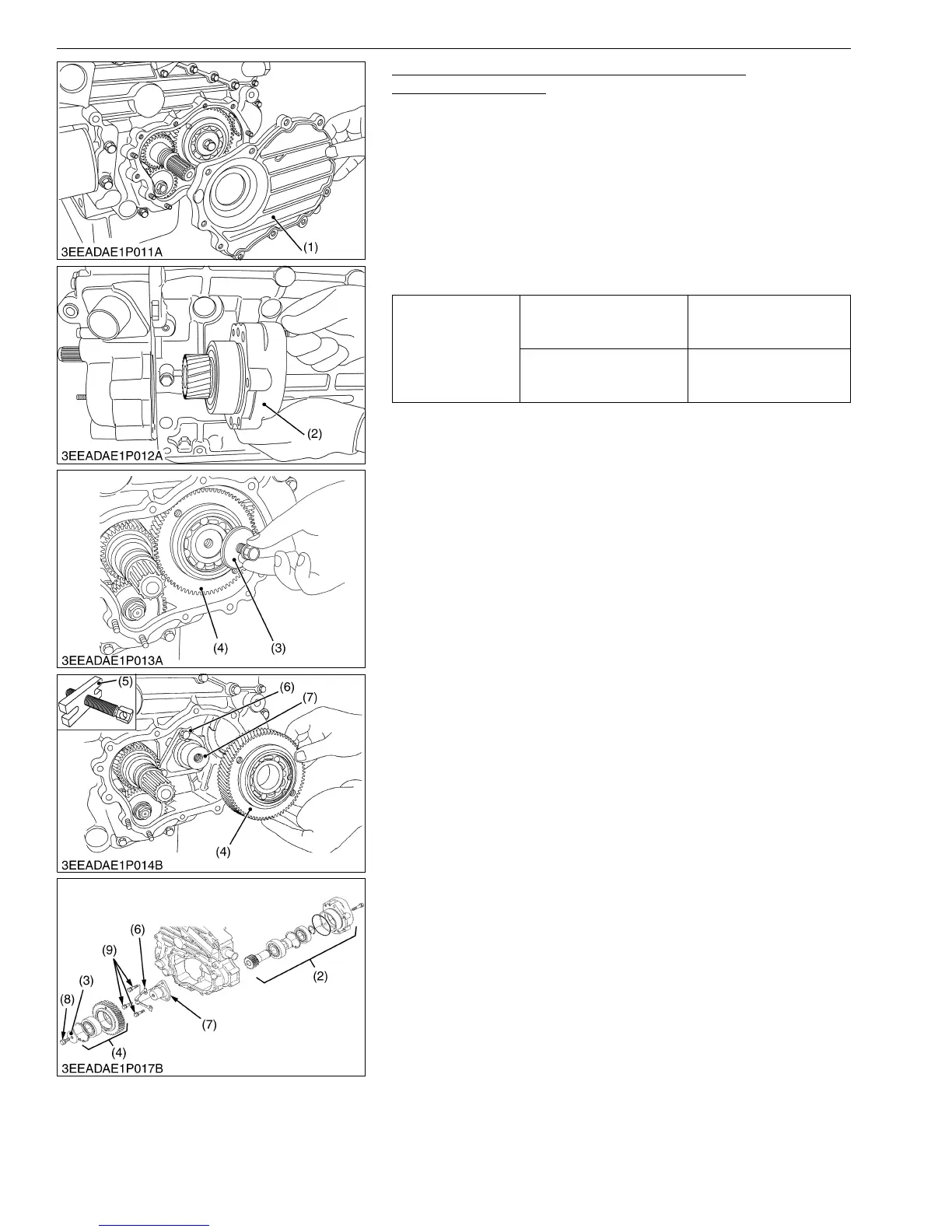

1. Remove the hour meter gear case (if attached).
2. Remove the gear case cover (1).
3. Remove the hydraulic pump base assembly (2).
4. Remove the idle gear 2 stopper (3).
5. Remove the idle gear 2 (4) with a puller (5).
6. Remove the idle gear 2 shaft (7).
(When reassembling)
• Replace the washer (6) and gear case cover gasket with new
ones.
• Replace the hour meter gear case gasket with a new one.
M00000003ENS0083US1
Tightening torque
Set screw of idle gear 2
shaft
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
Set screw of idle gear 2
stopper
49 to 55 N·m
5.0 to 5.7 kgf·m
37 to 41 lbf·ft
(1) Gear Case Cover
(2) Hydraulic Pump Base Assembly
(3) Idle Gear 2 Stopper
(4) Idle Gear 2
(5) Puller
(6) Washer
(7) Idle Gear 2 Shaft
(8) Set Screw of Idle Gear 2 Stopper
(9) Set Screw of Idle Gear 2 Shaft
