ENGINE
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
1-S72

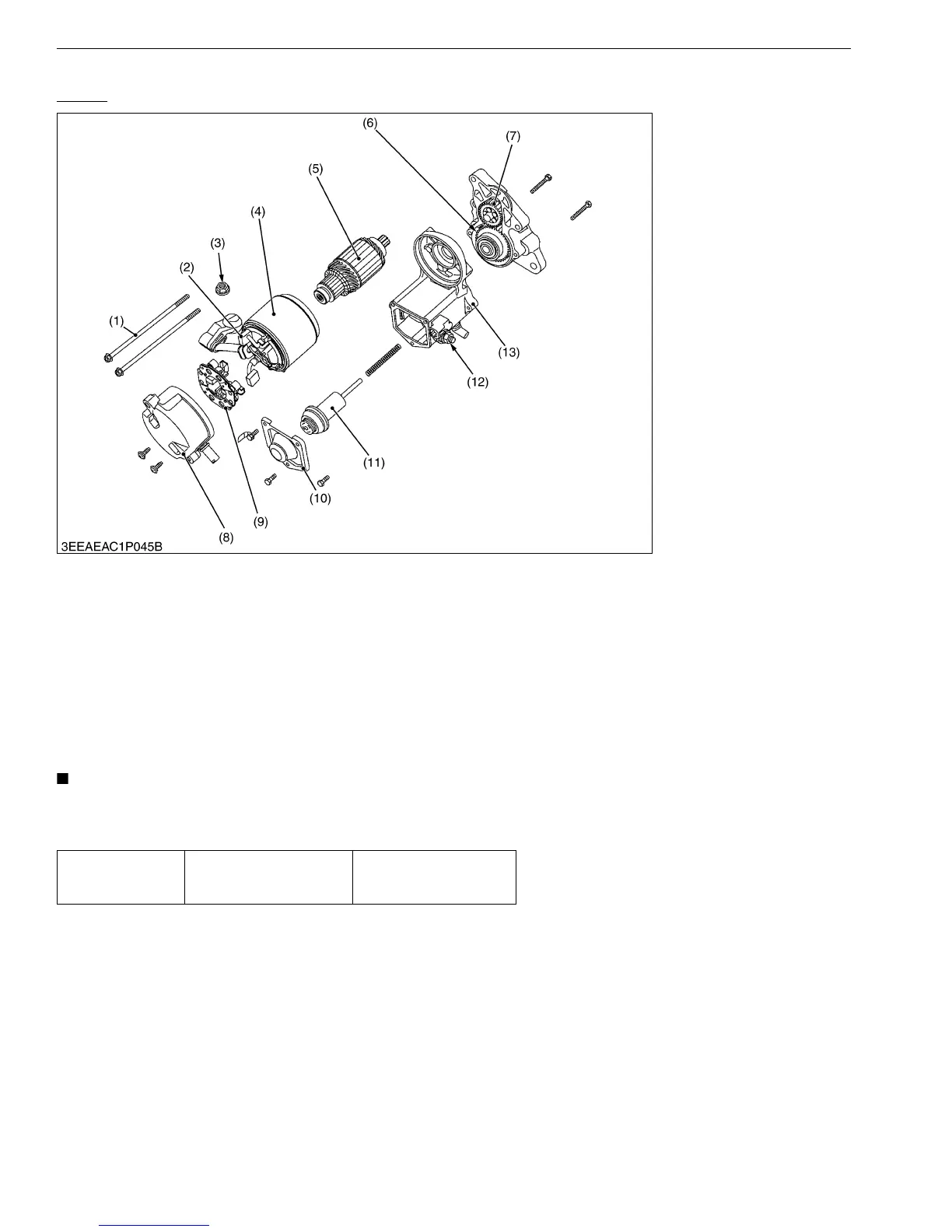

(7) Starter
Starter
1. Remove the C terminal nut (3), and disconnect the connecting lead.
2. Remove the 2 through bolts (1).
3. Remove the motor.
4. Remove the end frame (8).
5. Hold the spring up and remove the brush from the brush holder.
6. Remove the brush holder (9).
7. Pull out the armature (5) from the yoke (4).
8. Remove the housing (13).
9. Remove the idle gear (7) and the overrunning clutch (6).
10. Remove the magnet switch cover (10).
11. Remove the plunger (11).
NOTE
• Do not cause damage to the brush and commutator.
(When reassembling)
• Apply grease (DENSO No. 50 or equivalent) to the idle gear and overrunning clutch parts.
M00000003ENS0103US1
(1) Through Bolt
(2) Brush
(3) C Terminal Nut
(4) Yoke
(5) Armature
(6) Overrunning Clutch
(7) Idle Gear
(8) End Frame
(9) Brush Holder
(10) Magnet Switch Cover
(11) Plunger
(12) B Terminal Nut
(13) Housing
Tightening torque B terminal nut
5.9 to 11 N·m
0.60 to 1.2 kgf·m
4.4 to 8.6 lbf·ft
KiSC issued 06, 2009 A
