4. TURBOCHARGER SYSTEM
[1] BOOST COMPENSATOR
M00000003ENM0009US1
Fuel supply increases when boost pressure
increases to make sure that the turbocharger gives
sufficient power to the engine.
M00000003ENM0010US1
When the boost pressure drops, fuel supply
decreases to decrease black emission.
The system can decrease the emission in low boost
pressures at quick speed-up or start-up.
M00000003ENM0011US1

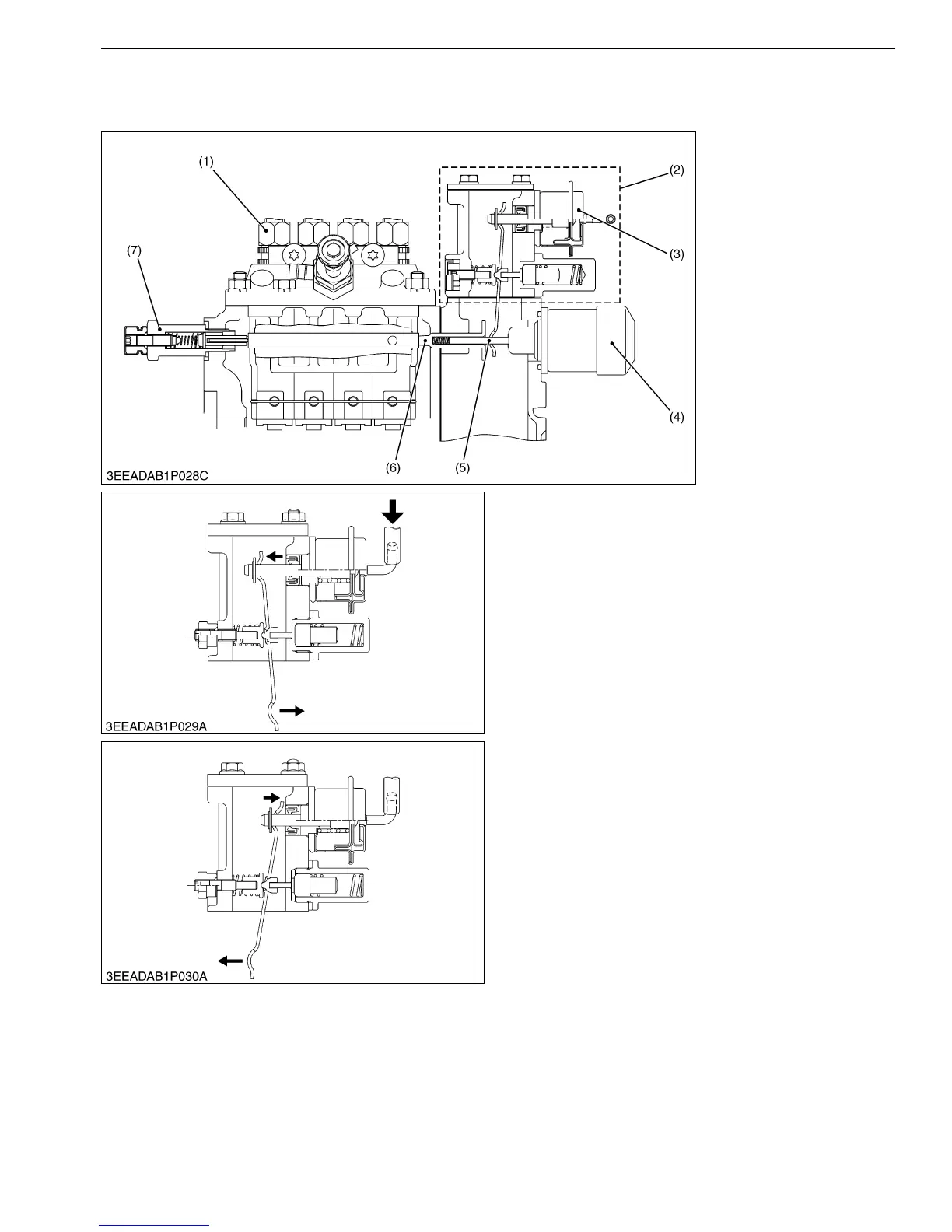

(1) Injection Pump Assembly
(2) Boost Compensator
Assembly
(3) Actuator
(4) Stop Solenoid
(5) Plunger
(6) Stop Solenoid Guide
(7) Hi-Idling Body
