ENGINE
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
1-S59

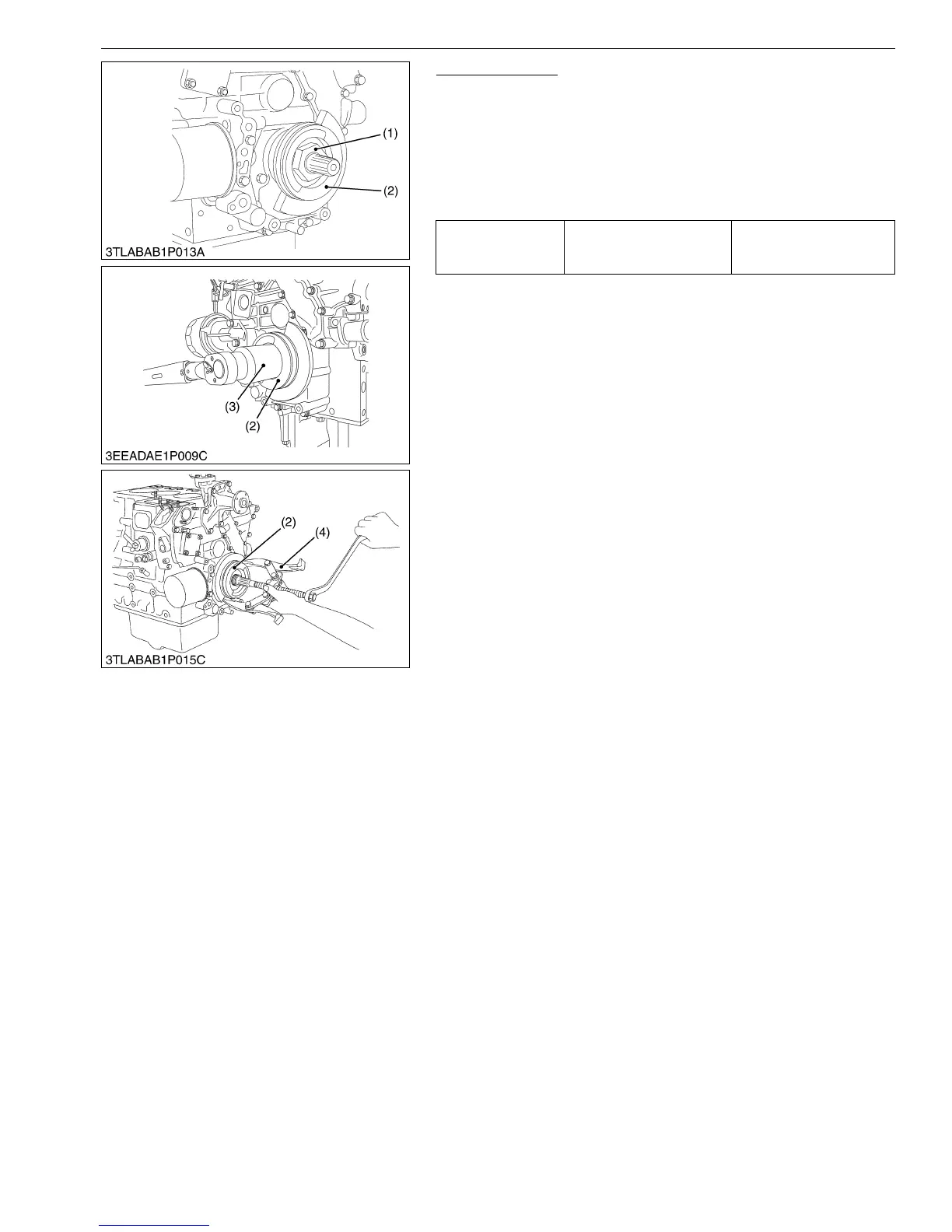

Fan Drive Pulley
1. Lock the flywheel with the flywheel stopper.
2. Remove the mounting nut (1) of the fan drive pulley with a
46 mm (1.8 in.) deep socket wrench (3).
3. Remove the fan drive pulley (2) with a gear puller (4).
4. Remove the feather key.
(When reassembling)
• Apply grease to the splines of coupling.
M00000003ENS0082US1
Tightening torque
Mounting nut of fan drive
pulley
138 to 156 N·m
14.0 to 16.0 kgf·m
102 to 115 lbf·ft
(1) Nut
(2) Fan Drive Pulley
(3) 46 mm (1.8 in.) Deep Socket
Wrench
(4) Gear Puller
To Next Page
