Nanni N4.40 - Idle Gear 2 Puller

GENERAL
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
G-45

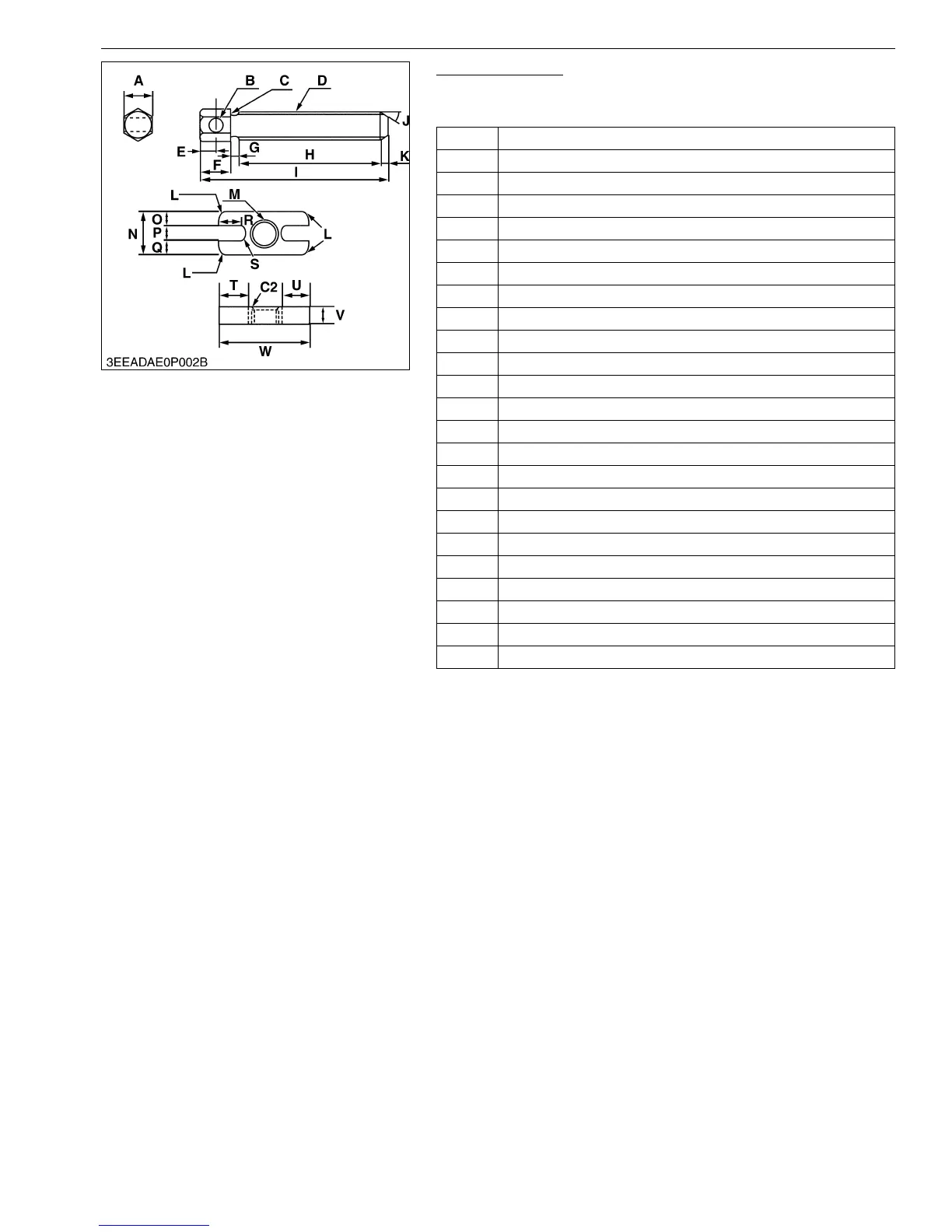

Idle Gear 2 Puller
Application
• To remove the idle gear 2 from the shaft.
M00000003GEG0066US1
A 24 mm (0.94 in.)
B 10 mm dia. (0.39 in. dia.)
C 0.5 mm radius (0.02 in. radius)
D M20 × Pitch 2.0
E 10 mm (0.39 in.)
F 20 mm (0.79 in.)
G 5 mm (0.2 in.)
H 95 mm (3.7 in.)
I 125 mm (4.92 in.)
J 0.87 rad (50 °)
K 5 mm (0.2 in.)
L 60 mm radius (2.4 in. radius)
M M20 × Pitch 2.0
N 30 mm (1.2 in.)
O 10 mm (0.39 in.)
P 10 mm (0.39 in.)
Q 10 mm (0.39 in.)
R 35.5 mm (1.40 in.)
S 4.5 mm radius (0.18 in. radius)
T 40 mm (1.6 in.)
U 40 mm (1.6 in.)
V 12 mm (0.47 in.)
W 120 mm (4.72 in.)
C2 Chamfer 2.0 mm (0.079 in.)
KiSC issued 06, 2009 A
