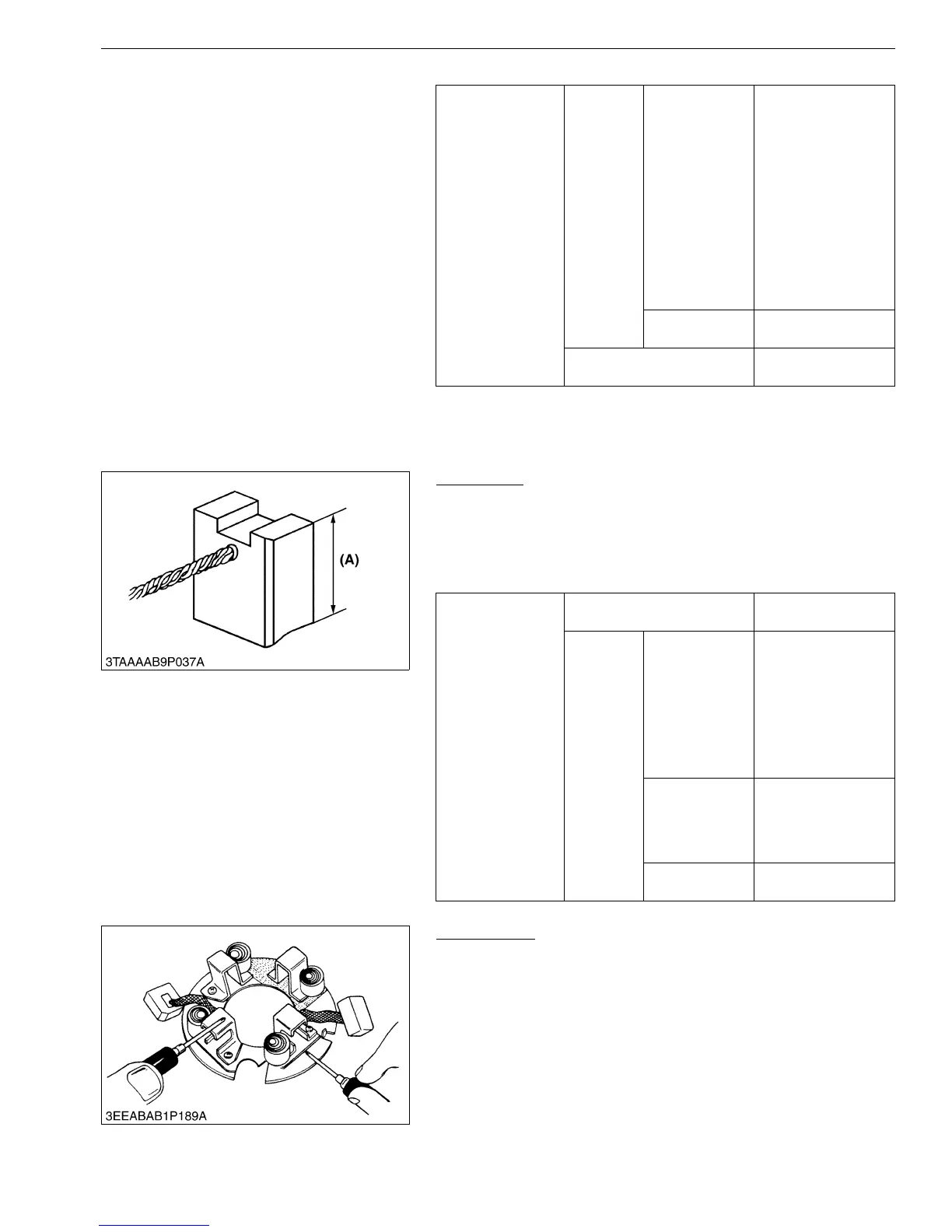

Brush Wear
1. If the contact face of the brush is dirty or dusty, clean it with
emery paper.
2. Measure the brush length (A) with a vernier caliper.
3. If the length is less than the allowable limit, replace the yoke
assembly and brush holder assembly.
M00000003ENS0149US1
Brush Holder
1. Examine the continuity across the brush holder and the holder
support with a circuit tester.
2. If electricity flows, replace the brush holder assembly.
M00000003ENS0150US1
Mica undercut
Factory
spec.
D1503-M,
D1703-M,
D1803-M,
V2003-M,
V2203-M,
V2403-M,
V2403-M-T,
D1803-M-DI,
V2403-M-DI,
V2403-M-DI-T,
D1703-M-BG,
V2003-M-BG,
V2003-M-T-BG,
V2203-M-BG
0.45 to 0.75 mm
0.018 to 0.029 in.
V2403-M-BG
0.55 to 0.85 mm
0.022 to 0.033 in.
Allowable limit
0.20 mm
0.0079 in.
(1) Segment
(2) Depth of Mica
(3) Mica
(a) Correct
(b) Incorrect
Brush length (A)
Factory spec.
15.0 mm
0.591 in.
Allowable
limit
D1503-M,
D1703-M,
V2003-M,
V2203-M,
D1803-M-DI,
D1703-M-BG,
V2003-M-BG,
V2003-M-T-BG,
V2203-M-BG
11.0 mm
0.433 in.
D1803-M,
V2403-M,
V2403-M-T,
V2403-M-DI,
V2403-M-DI-T
9.0 mm
0.35 in.
V2403-M-BG
12.0 mm
0.472 in.
KiSC issued 06, 2009 A
