ENGINE
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
1-S63

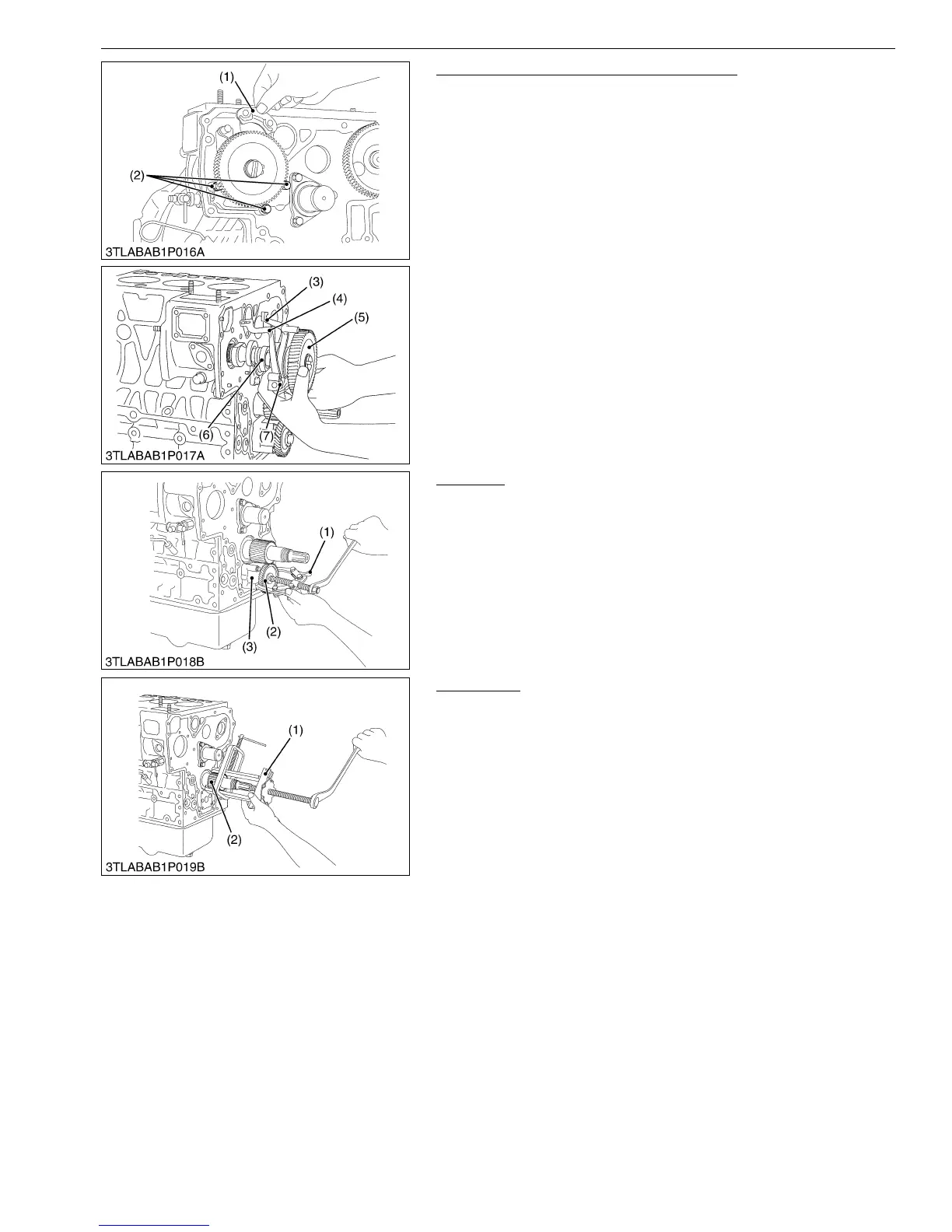

Fuel Camshaft and Fork Lever Assembly
1. Remove the fuel feed pump.
2. Remove the fuel camshaft stopper (1).
3. Remove the 3 mounting screws (2) of the fork lever holder.
4. Pull out the fuel camshaft assembly (5), (6) and fork lever
assembly (3), (4), (7) at the same time.
(When reassembling)
• After installation, make sure that the fork levers (3) and (4) are
attached to the fork lever shaft. Make sure also that they can
turn smoothly in the holder (7).
M00000003ENS0091US1
Oil Pump
1. Remove the nut.
2. Pull out the oil pump drive gear (2) with a gear puller (1).
3. Remove the 4 mounting screws of the oil pump. Remove the oil
pump (3).
M00000003ENS0092US1
Crank Gear
1. Pull out the crank gear (2) with a puller (1).
2. Remove the feather key.
M00000003ENS0093US1
(1) Fuel Camshaft Stopper
(2) Mounting Screw of Fork Lever
Holder
(3) Fork Lever 1
(4) Fork Lever 2
(5) Injection Pump Gear
(6) Fuel Camshaft
(7) Fork Lever Holder
(1) Gear Puller
(2) Oil Pump Drive Gear
(3) Oil Pump
(1) Puller (2) Crank Gear
KiSC issued 06, 2009 A
