ENGINE
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM
1-S68

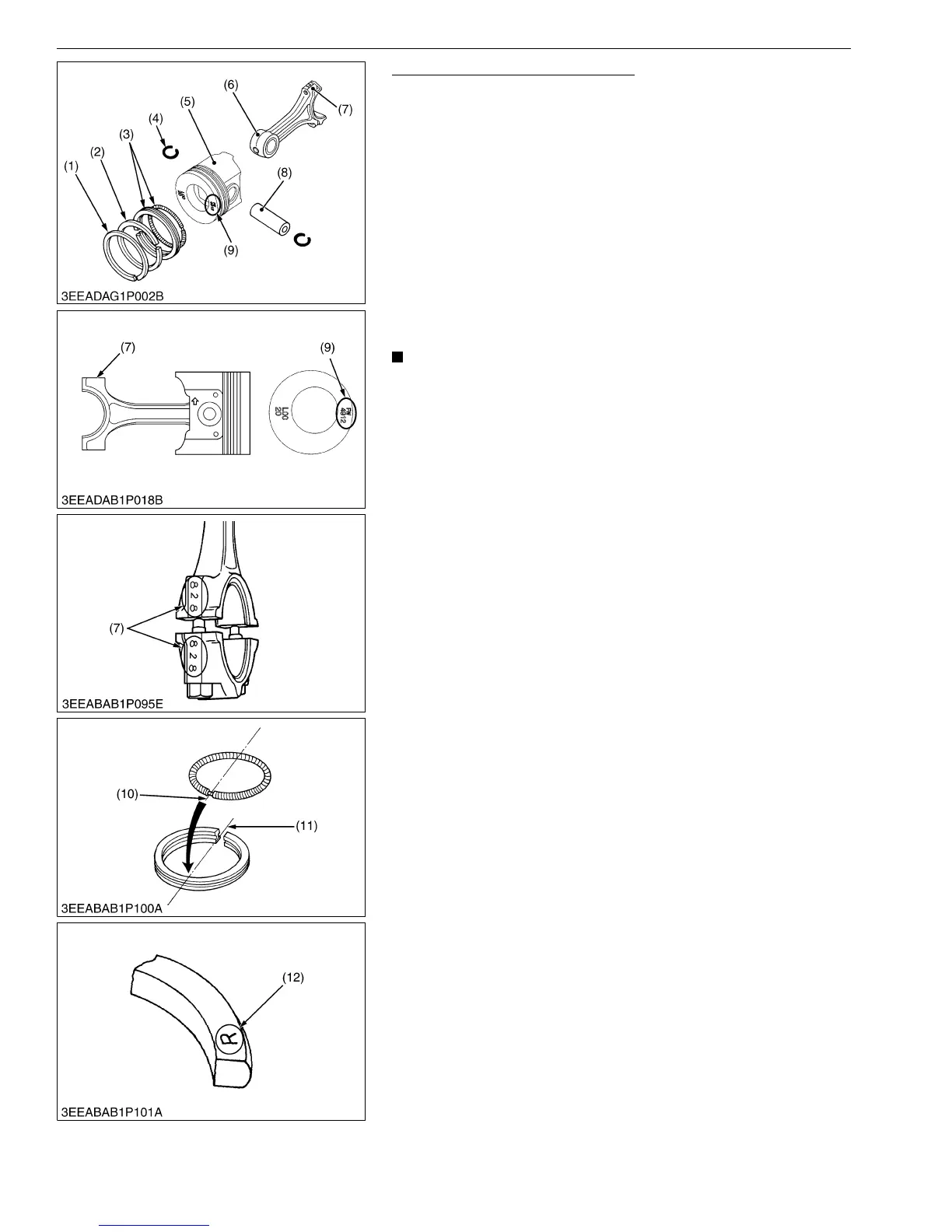

Piston Ring and Connecting Rod
[D1803-M-DI, V2403-M-DI, V2403-M-DI-T]
1. Remove the piston rings (1), (2) and (3) with a piston ring tool.
2. Remove the piston pin (8) to disconnect the connecting rod (6)
from the piston (5).
(When reassembling)
• When you install the rings to the piston (5), set the manufacturer
mark (12) upward.
• When you install the oil ring (3) on the piston (5), set the
expander joint (10) on the opposite side of the oil ring gap (11).
• Apply engine oil to the piston pin (8).
• Put the piston (5) fully in 80 °C (176 °F) oil for 10 to 15 minutes.
• Align the FW mark (9) that points to the flywheel with the mark
(7) that points to the injection pump. Then install the piston pin
(8) to connect the connecting rod (6) and the piston (5).
• Put a mark on the connecting rod (6) and the piston (5) with
the same number to keep the same combination.
M00000003ENS0098US1
(1) Top Ring
(2) Second Ring
(3) Oil Ring
(4) Piston Pin Snap Ring
(5) Piston
(6) Connecting Rod
(7) Mark
(8) Piston Pin
(9) FW Mark
(10) Expander Joint
(11) Oil Ring Gap
(12) Manufacturer Mark
To Next Page
