VS1 Operations and Maintenance Manual Operating the transmitter
Page 2-50 Issue 3.1 2013-10-01
View Meters - Using the front panel
When you select View Status -> View Meters from the Main Menu (see Figure 2.36) you can view
various metered parameters of the VS1. These parameters are displayed as a list on the View Meters
screen.

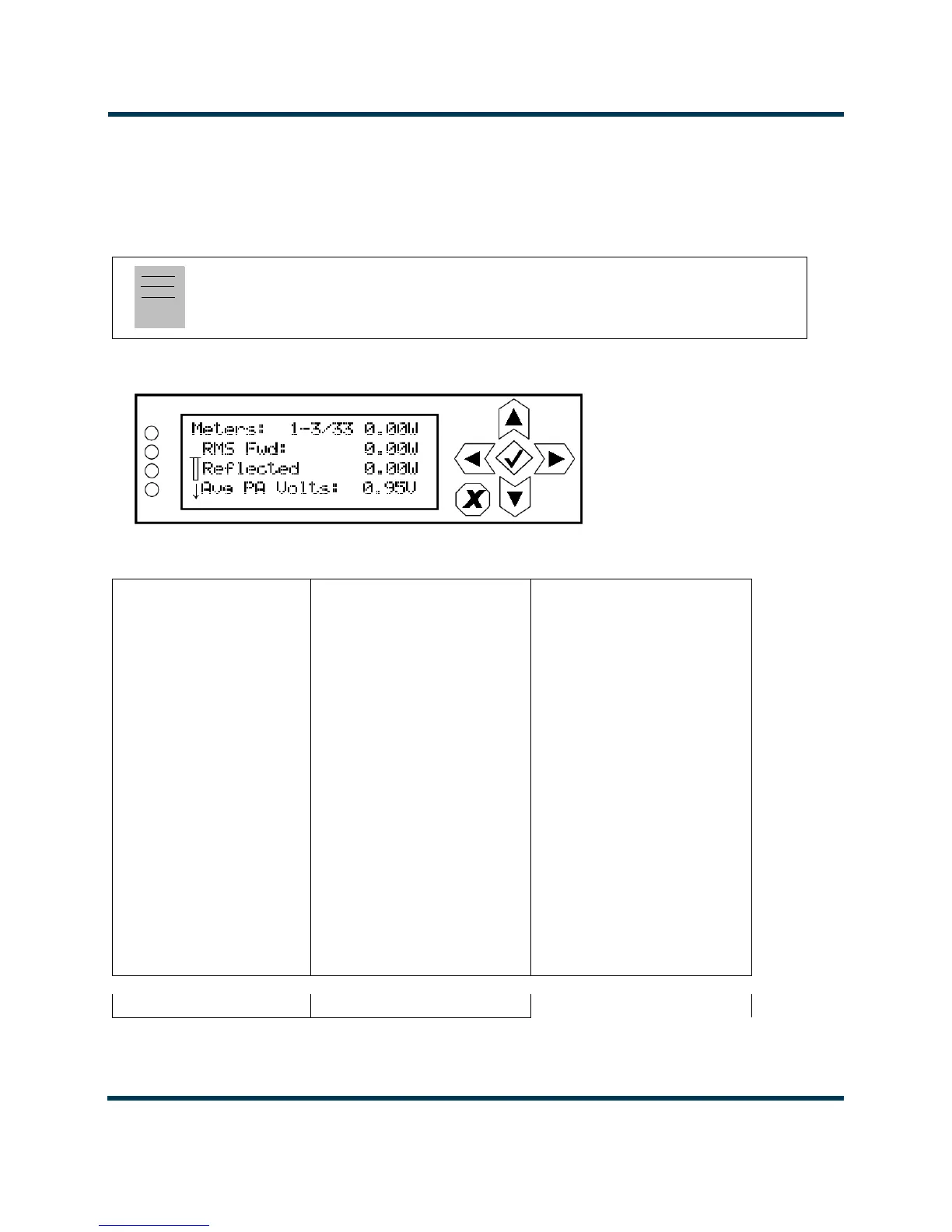

Figure 2.36: View Meters Screen
Use the up and down buttons to scroll through the following list of metered parameters:
Note:
This screen is for viewing purposes only and does not offer the same level of analytical features as
the AUI’s System Review page (see Figure 2.33 on page 2-47).
Forward (forward power) +1.2V VSWR
Reflected (reflected power) Battery delta 10 MHz
PA Volts A Fan 1 IPA Fwd
Preamp Curr Fan 2 Total PA Curr
IPA Curr Fan 3 DC Power In
PA1 Curr TCXO DC-RF Eff
PA2 Curr Ext 10 MHz Avg PA Diss
PA3 Curr Bal L PA1 Bias
PA4 Curr Bal R PA2 Bias
Heatsink Temp 1 MPX PA3 Bias
Heatsink Temp 2 Int SCA1 PA4 Bias
+48V Int SCA2 IPA Bias
+15V Dig L Preamp Bias
-15V Dig R Fwd Atten
+5V MPX SCA DAC Gain
+3.3V Peak Mod
+1.8V MPX RMS
+1.2 V MPX SCA AGC LIM
