Operation

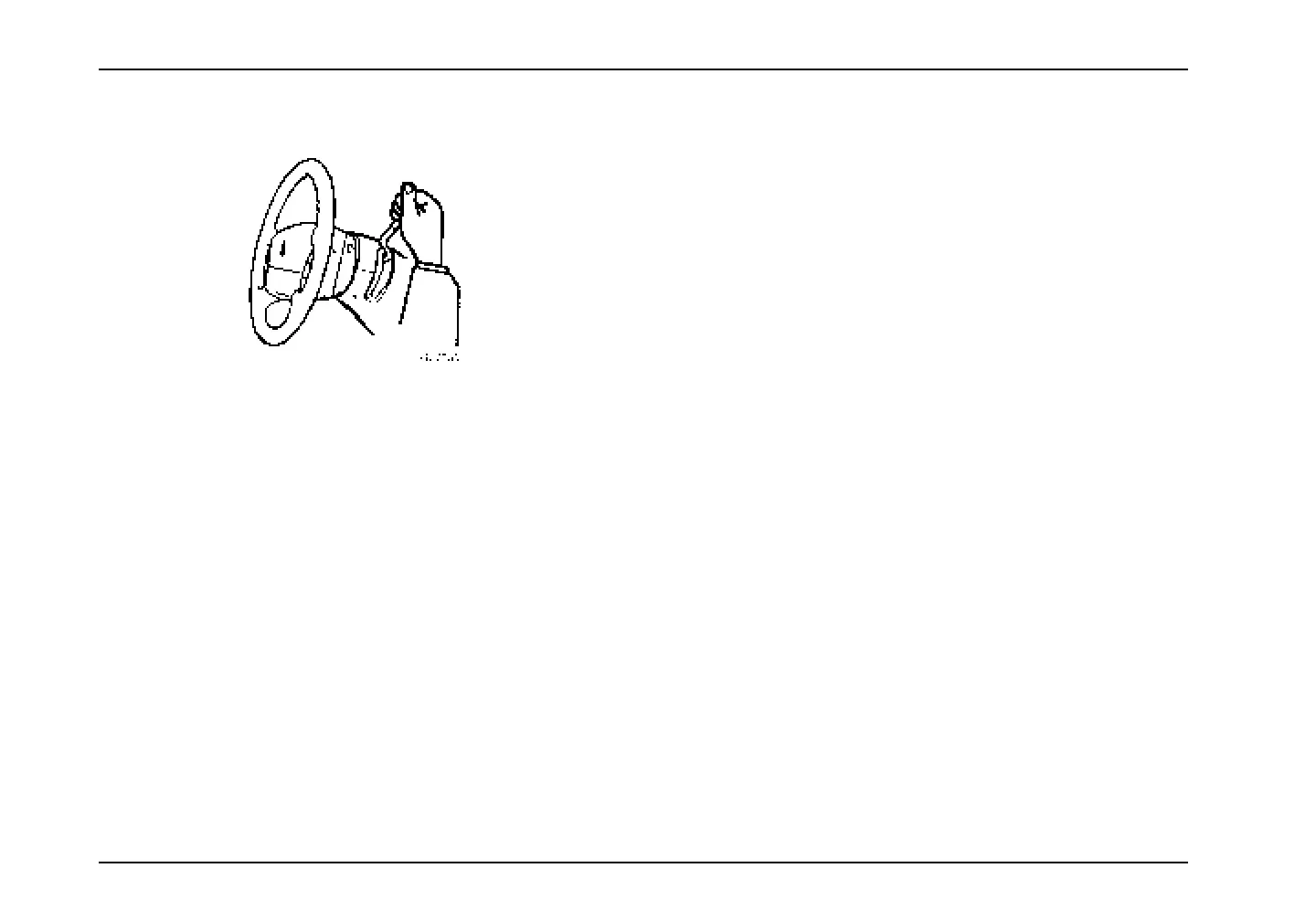

Operation of the Column-Mounted Shifter
A Column-mounte
d shifter is used with some Allison
transmissions.
The selected gear positions will be indicated, on
the instrument
panel gauge cluster’s LCD display, by a dash
directly under
R, N, or gear number.
NOTE: When usin
g the column-mounted shifter, while the
transmissio
n is not in “P” – Park or “PB” – Parking Brake, the
LCD display w
ill indicate the selected gear at all times, even if
the ignitio
nswitchisintheOFF position. With the ignition switch
in the OFF po
sition, when the transmission is shifted to the park
position,
the dash indicator shall disappear and the instrument
panel gaug
e cluster will complete its shutdown.
To shift th
e transmission out of “P” – Park or “PB” – Parking
Brake, fir
st read and then perform the following:
• First pres
s foot on service brake pedal (see Park Position
Interloc
ksection).
• For reverse, pull on shift control lever and move lever to
“R” position (as indicated on LCD display), and then release
column shift lever.
• Release the Parking Brake.
• Lift foot from service brake pedal to allow the vehicle to move
backward.
• To select a forward gear (while holding service brake pedal
down), pull on shift lever and move down thru “N” - Neutral
and stop at “D” – Drive or any of the available gears as
indicated on the LCD display.
• Release service brake pedal and allow vehicle to move
forward.
Main Transmission Controls
Main transmission, auxiliary transmission, transfer case, and
power take off control shift patterns can be found on a placard
or decal on the driver’s visor door, on the instrument panel, or
on the shift control itself. In certain cases, the shift pattern,
for a component added by a Body Builder, will be in the Body
Builder’s manual.
The main transmission control is used to select the various gear
ratios or speeds provided within the transmission.
Selection of the D (direct drive) gear does not change the gear
ratio provided by the main transmission but is used where the
gear ratios in the main transmission are adequate to handle the
vehicle operation.
