Index 7197 Owner’s Guide
February 2002
204
Compressed Pitch
Print Zones
This section shows the printable area for the receipt station.
Receipt Station
For 80 mm Paper
The receipt station centers characters (standard pitch and compressed pitch) and graphics
on an 80 mm wide (3.15 inches) receipt.
• Standard pitch: 13 x 24 dots in character cell, 44 characters (columns) per line
• Compressed pitch: 10 x 24 dots in character cell, 56 characters (columns) per line
• Double byte character: 24 x 24 dots in character cell, 24 characters (columns) per line
• Graphics: 576 addressable bits
The minimum print line height is 24 dots for characters and 24 dots for graphics. The
standard print line height is 27 dots (3.38 mm, .133 inches) for characters (with three extra

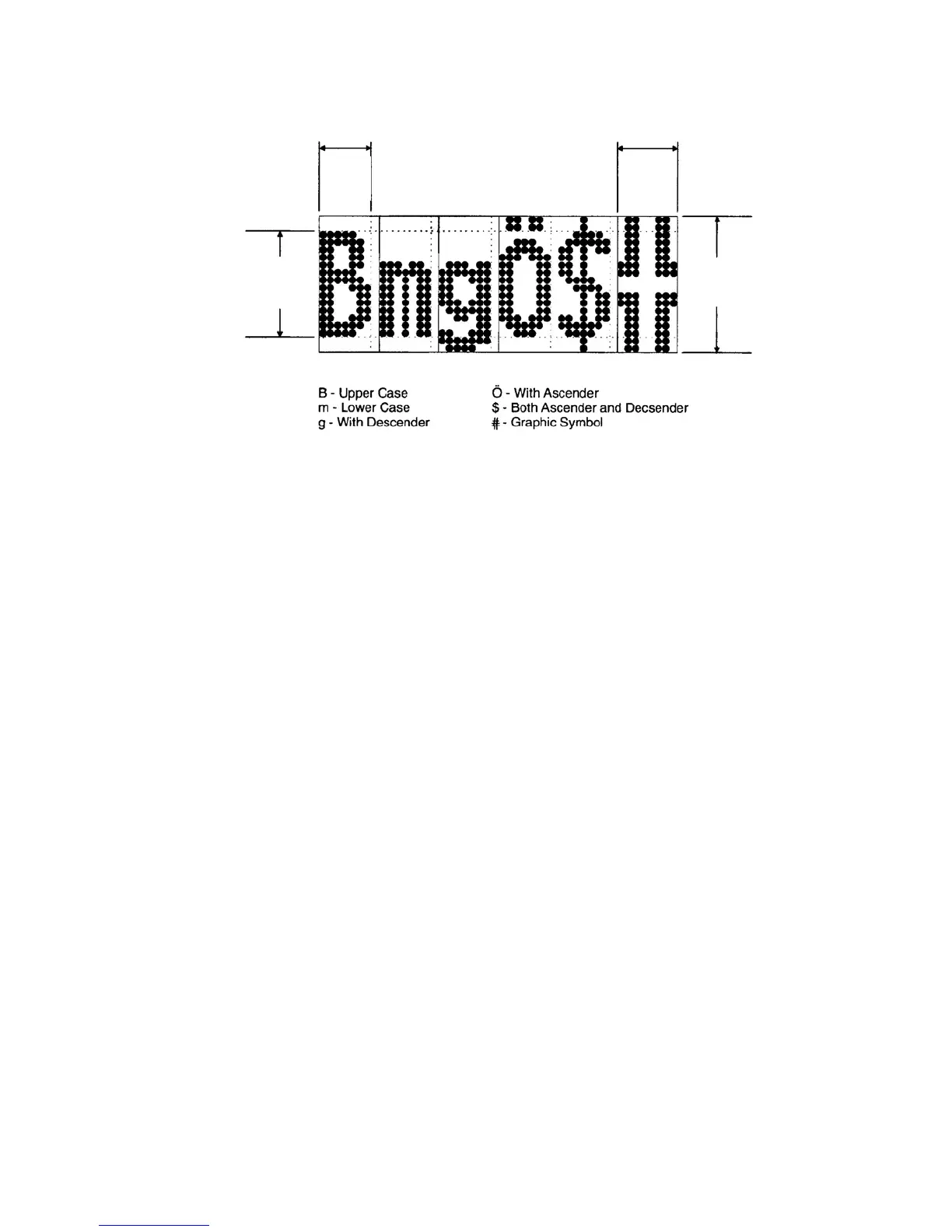

dot rows). See the following illustration (not to scale).
10 Dots
1.25 mm
.049 in.
8 Dots
1.00 mm
.039 i
.
19 Dots
2.38 mm
.094 in.
203 DPI, 19 CPI Pitch (Compressed)
24 Dots
3.00 mm
.118 in.
To Next Page
