7197 Owner’s Manual Chapter 5: Communications
November 2002
65
Cash Drawer Connector

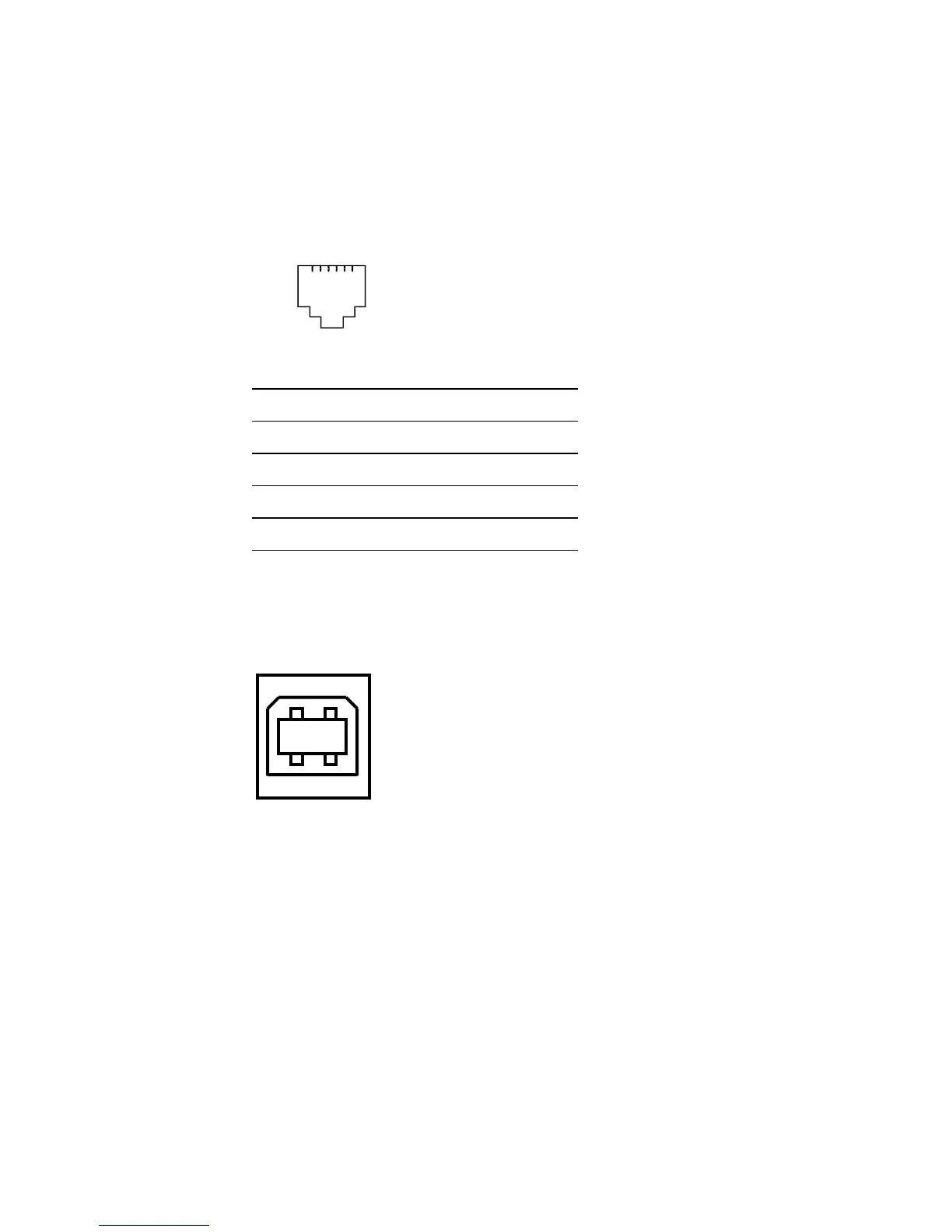

The following illustration shows the pin out designation for the cash drawer connectors.
The following table provides the pinout assignments for cash drawers one and two. The
cash drawer connectors are located at the rear of the printer.
Pin 1
Pin 6
Pin Number Cash Drawer 1 Connector
1 Frame Ground
2 Drawer 1 Solenoid
3 Drawer 1 Status Switch
4 +24 Volts (to Solenoid +)
5 Drawer 2 Solenoid
6 Ground (Status Switch Return)
USB Connector
The following illustration is for the USB Type B communication connector and pin
assignment.
Pin No Signal
1 +5 V – USB
2 Data -
3 Data +
4 Ground
1 2
3 4
