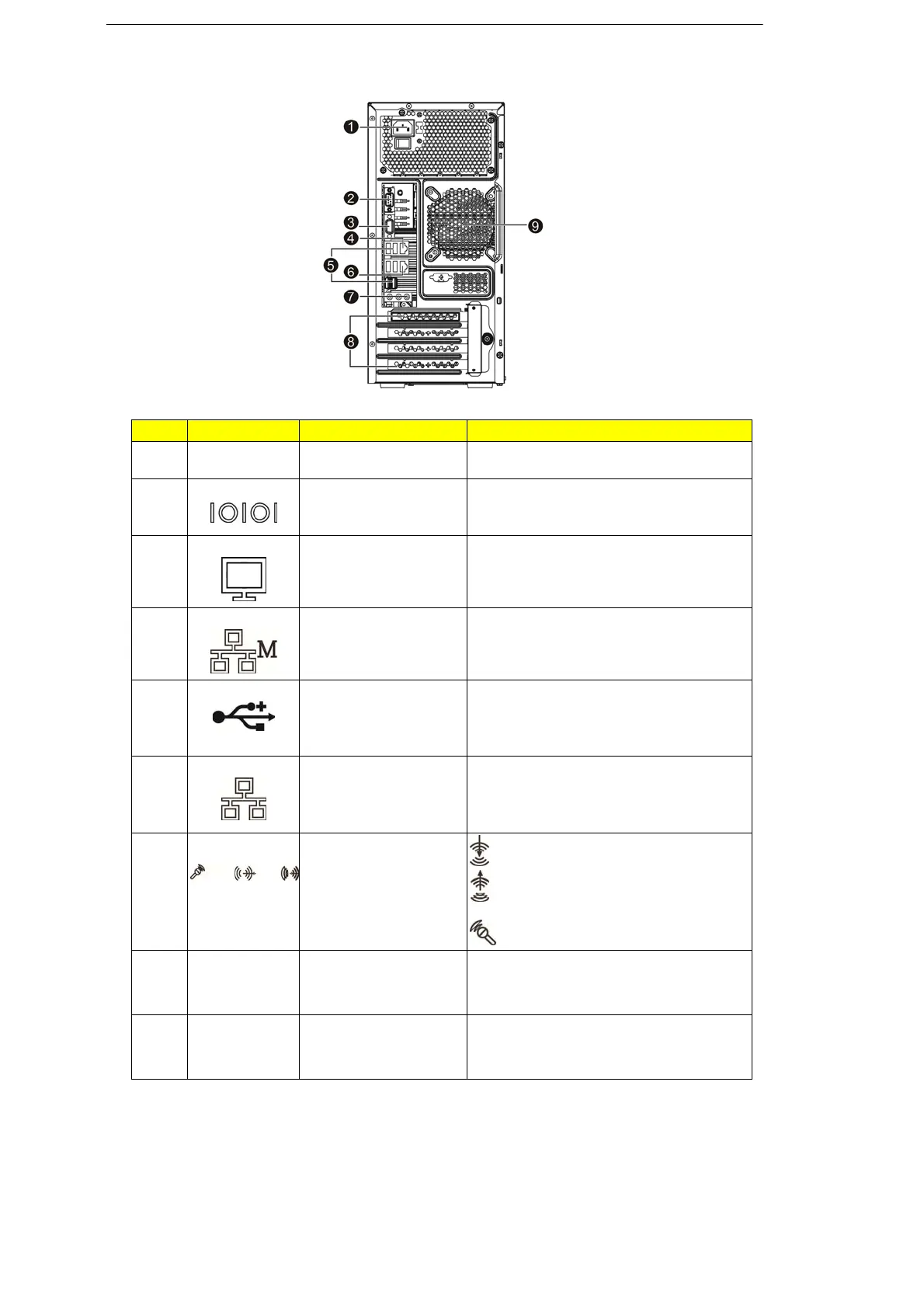

NEC Express5800/T71f - Rear View

8
Rear view
Item Icon Component Descr i ption
1
Power supply module cord
socket
Connect the system power cord here.
2
Serial port Connects to serial devices.
3 Monitor port Connects to monitors .
4 Server Management Port
(10/100BASE-TX)
Connect to an Internet or intranet network . For
server management use.
5 USB 2.0 ports Connects to USB devices.
6
Gigabit LAN port Connects to an Internet or intranet network .
7 Audio connectors
: Connects this audio jack for line in devices..
: Connects this audio jack for a headphone or
2-channel speaker.
: Connects this audio jack for microphones.
8
PCI slot covers Protects to an Interne t or intrane t network.
9 System fan Regulates the system air f low .
