19

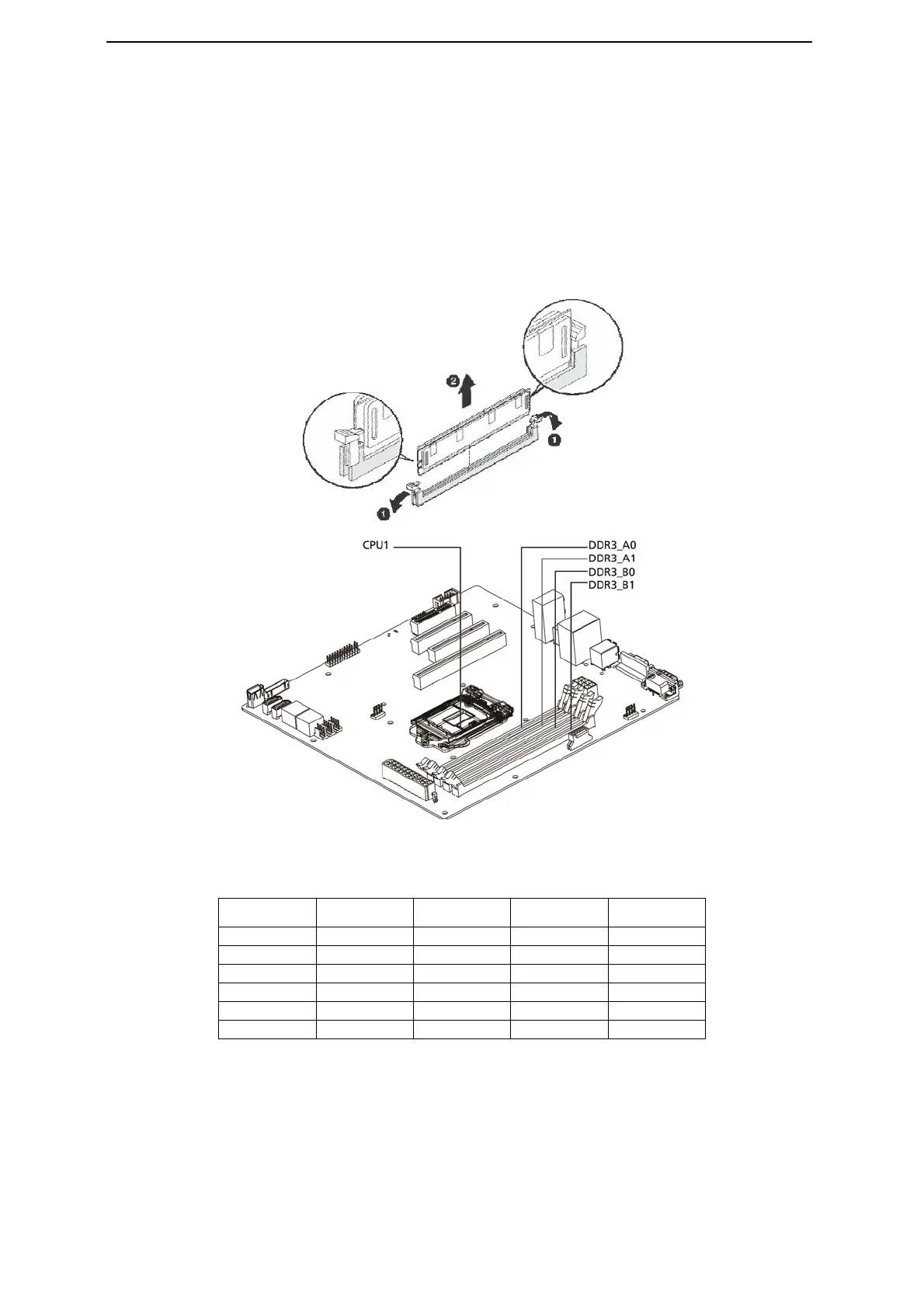

Memory Installation / Removal
The motherboard supports DDR3L memory modules, whereby BIOS will automatically detect
memory capacity and specifications. Memory modules are designed so that they can be inserted
only in one direction. The memory capacity used can differ with each slot.
Installation step:
1. Insert the DIMM memory module vertically into the DIMM slot, and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
NOTE! DIMM must be populated in order starting from DDR3_A0/B0 socket. For dual-channel
operation, DIMMs must be installed in matched pairs.
3. Reverse the installation steps when you wish to remove the DIMM module.
Suggest Population Table:
Total
Capacity
DDR3_A0 DDR3_A1 DDR3_B0 DDR3_B1
4G 4G
8G 4G 4G
16G 4G 4G 4G 4G
8G 8G
16G 8G 8G
32G 8G 8G 8G 8G
