127

vKVM & vMedia (Option)

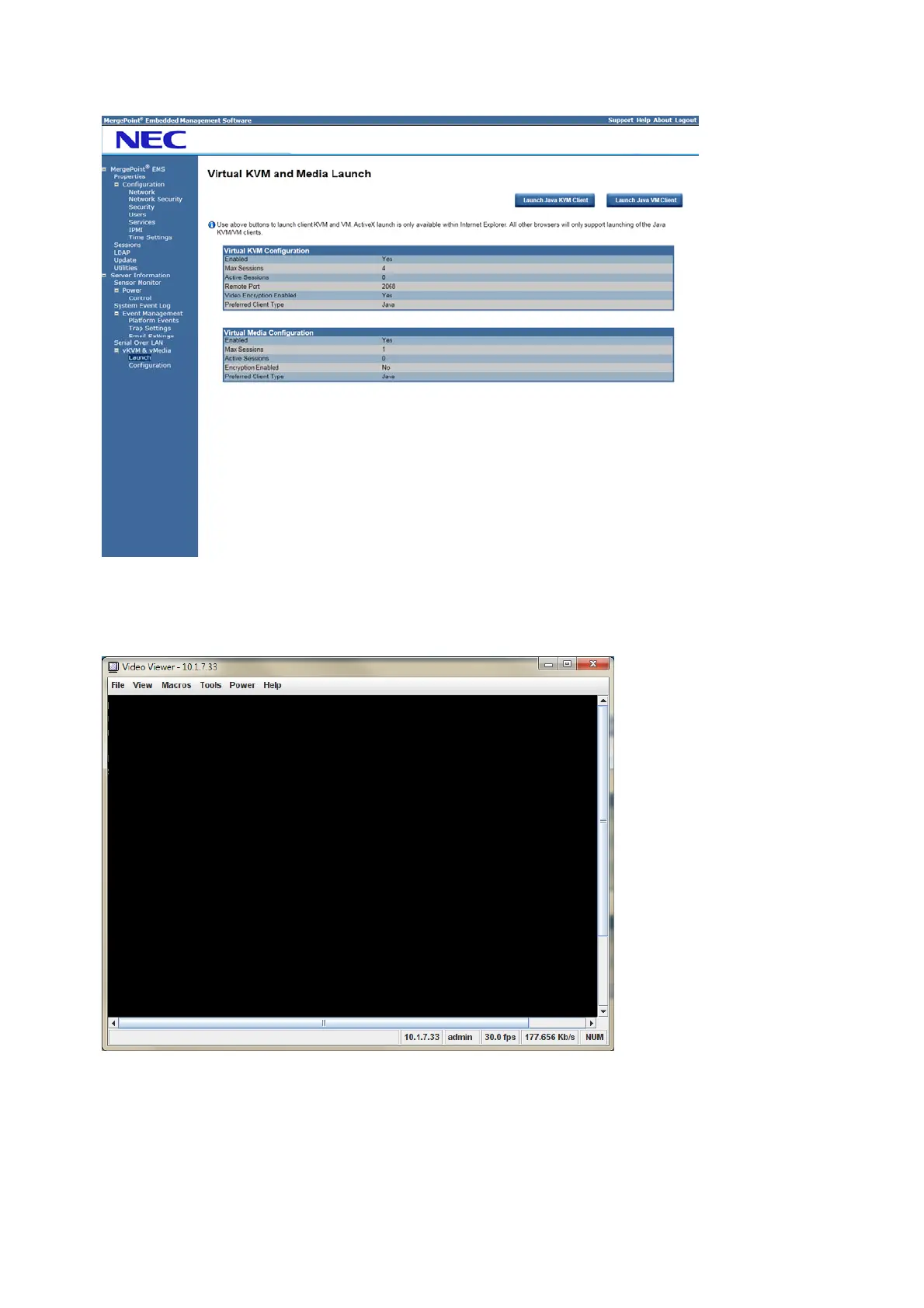

This screen allows you to start a Remote Console session with the host system.

Launch Java KVM Client

Click Launch Java KVM Client to launch the redirection console and manage the server remotely.

After clicking the button, a console appears as below:
