NEC Express5800/T71f - Network Stack

141 pages

To Next Page

To Previous Page

Network Stack

Paramete

Description Option

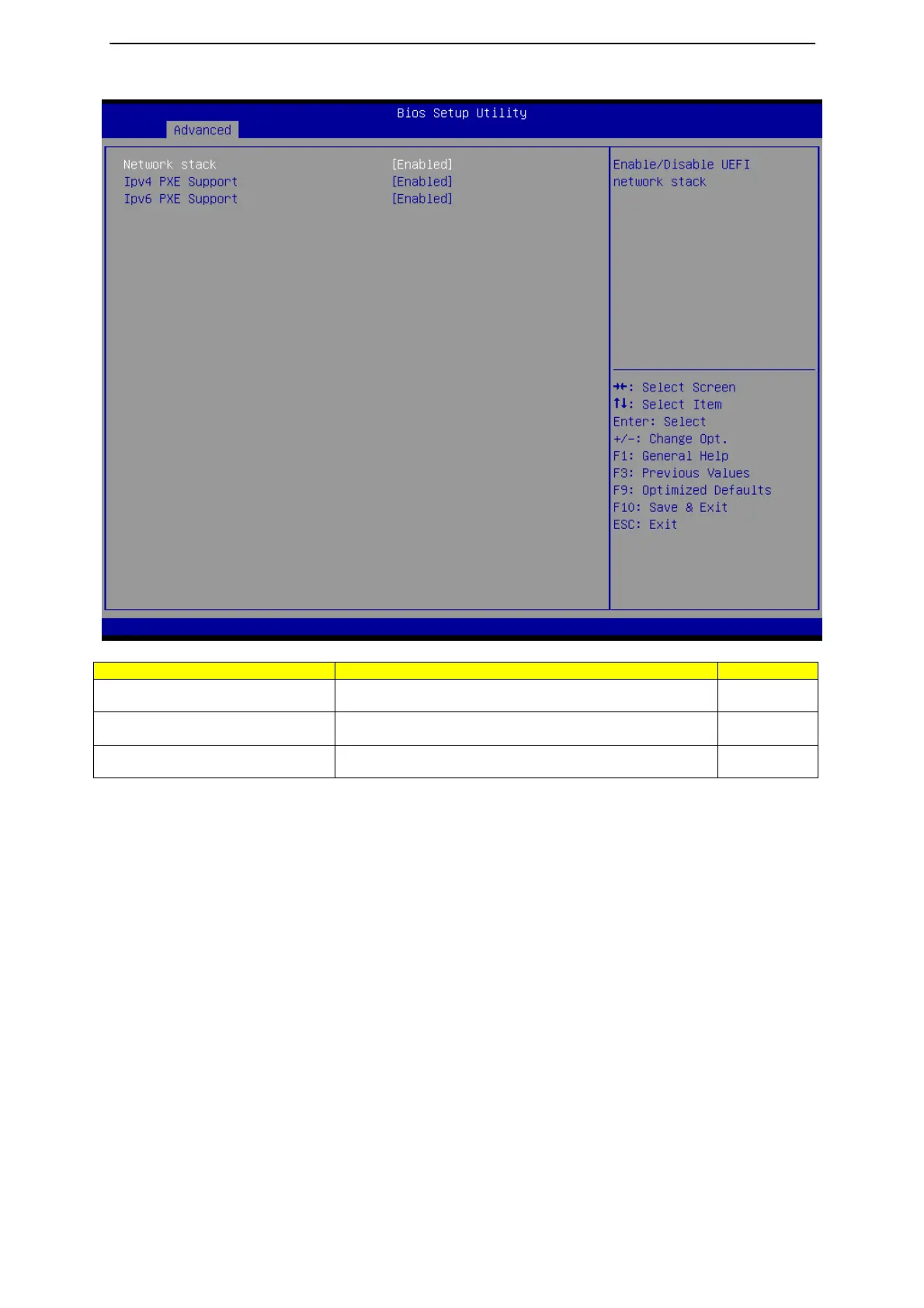

Network stack Enable/Disable UEFI network stack.

When this item is enabled, advanced items show up.

Enabled

[Disabled]

Ipv4 PXE Support Enable/Disable Ipv4 PXE feature. [Enabled]

Disabled

Ipv6 PXE Support Enable/Disable Ipv6 PXE feature. [Enabled]

Disabled
