113

Sessions

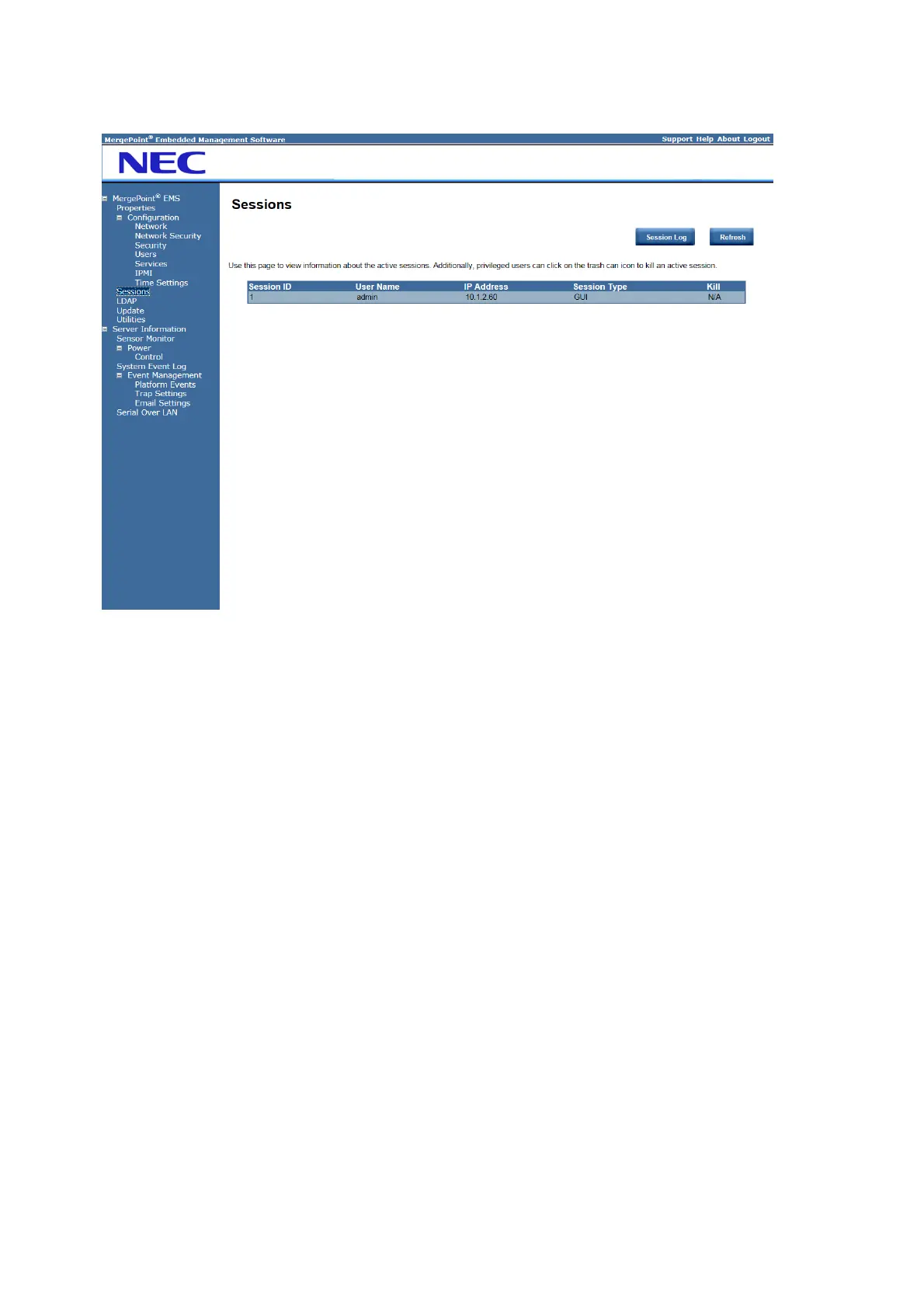

This screen displays information on Active Sessions. Additionally, the trash can icon provides the

delete function for privileged users. Click Refresh to refresh the Sessions status.
