14

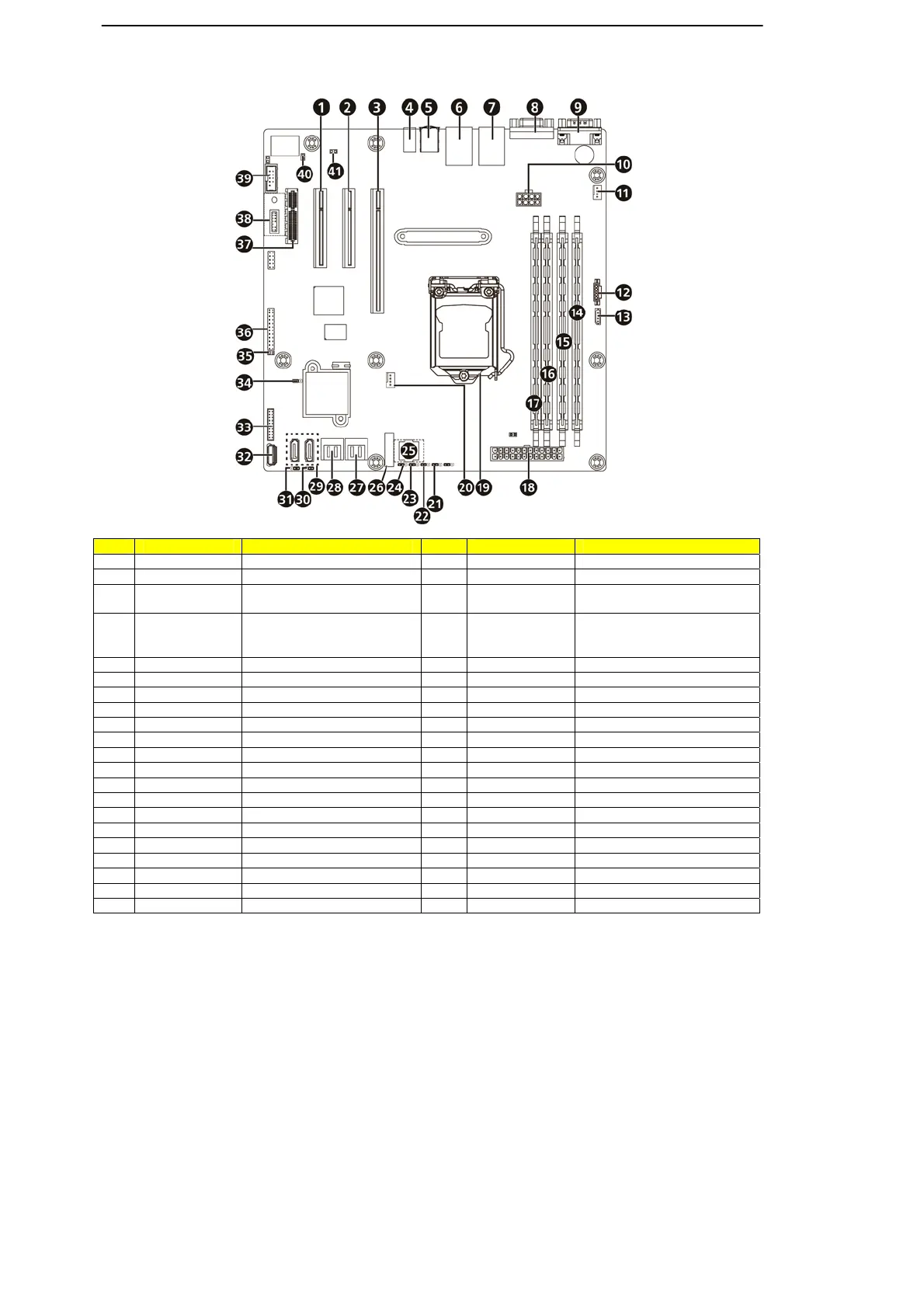

Connector Icon Description
Item Code Description Item Code Description
1 PCIE_3 PCI-E slot (x8 slot) 2 PCIE_2 PCI-E slot (x8 slot)
3 PCIE_1 PCI-E slot (x16 slot) 4 AUDIO Audio connectors
5 R_USB1 USB 2.0 connectors 6 USB20_LANB Gigabit LAN port (top)/USB 2.0
connectors (bottom)
7 USB20_MLAN 10/100 LAN port (top)/USB
2.0 connectors (bottom)
8 VGA_1 VGA port
9 COM1 Serial port 10 P2 8 pin power connector
11 SYS_FAN1 System fan connector #1 12 PWR_DET PMBus connector
13 IPMB1_IPM2 IPMB connector 14 DDR3_B1 DIMM slot (channel B-1)
15 DDR3_B0 DIMM slot (channel B-0) 16 DDR3_A1 DIMM slot (channel A-1)
17 DDR3_A0 DIMM slot (channel A-0) 18 P1 24 pin power connector
19 CPU1 Intel LGA1150 socket 20 CPU1_FAN CPU fan cable connector
21 J_PASSWOR Clear Password jumper 22 J_MEUPDATE ME Update jumper
23 J_BIOSRVCR BIOS Recovery jumper 24 J_CLRCMOS Clear CMOS jumper
25 BIOS BIOS ROM 26 BAT Battery socket
27 SATA01 SATA 6Gb/s connectors 28 SATA23 SATA 3Gb/s connectors
29 SATA45 SATA 3Gb/s connectors 30 SATA_DOM5 SATA port #5 DOM jumper
31 SATA_DOM4 SATA port #4 DOM jumper 32 USB_A1 USB 2.0 Type A connector
33 FRO_USB30 USB 3.0 header 34 J_HDA_SOD1 ME Recovery jumper
35 HDD_LED1 Hard Disk Drive LED 36 FP_1 Front Panel header
37 PCIE_4 PCI-E slot (x4 slot) 38 TPM_1 TPM module connector
39 COM2 Serial cable connector 40 CASE_OPEN Chassis intrusion header
41 SPDIF_IN SPDIF In header
