29
N8103-171 RAID Controller (RAID 0/1)
Hard Disk Drive Installation / Removal
Below is the instruction of HDD installation and removal SOP.
1. Open the side cover.

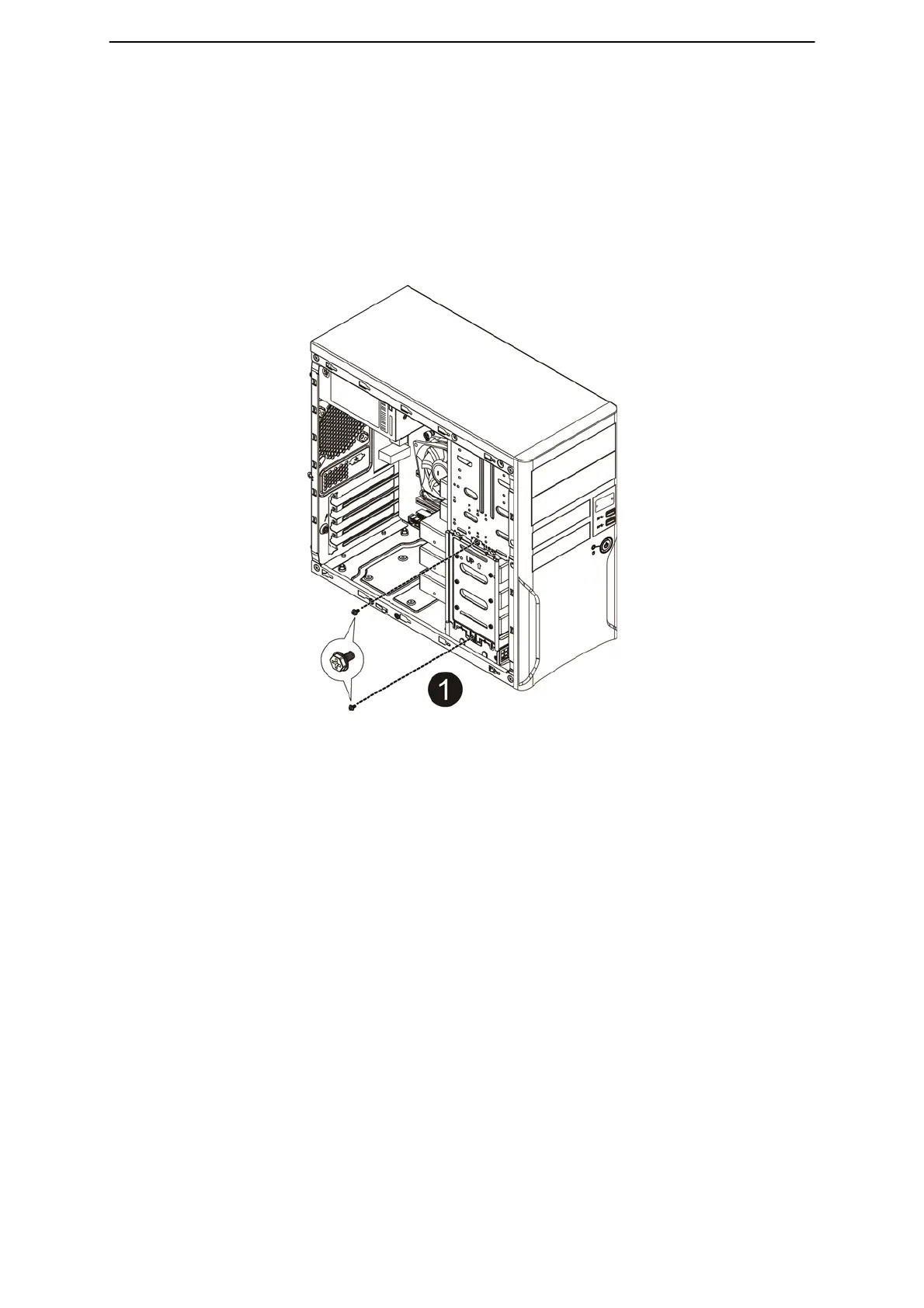

2. Remove the securing screws.
3. Pull the HDD cage out of the system.
4. Slide hard disk into the HDD cage and secure the HDD with screws. .Make sure the HDD is seated
securely in the HDD cage.
5. Connect the necessary power cable. To connect power cable. Firstly, remove the HDD carrier.
To Next Page
