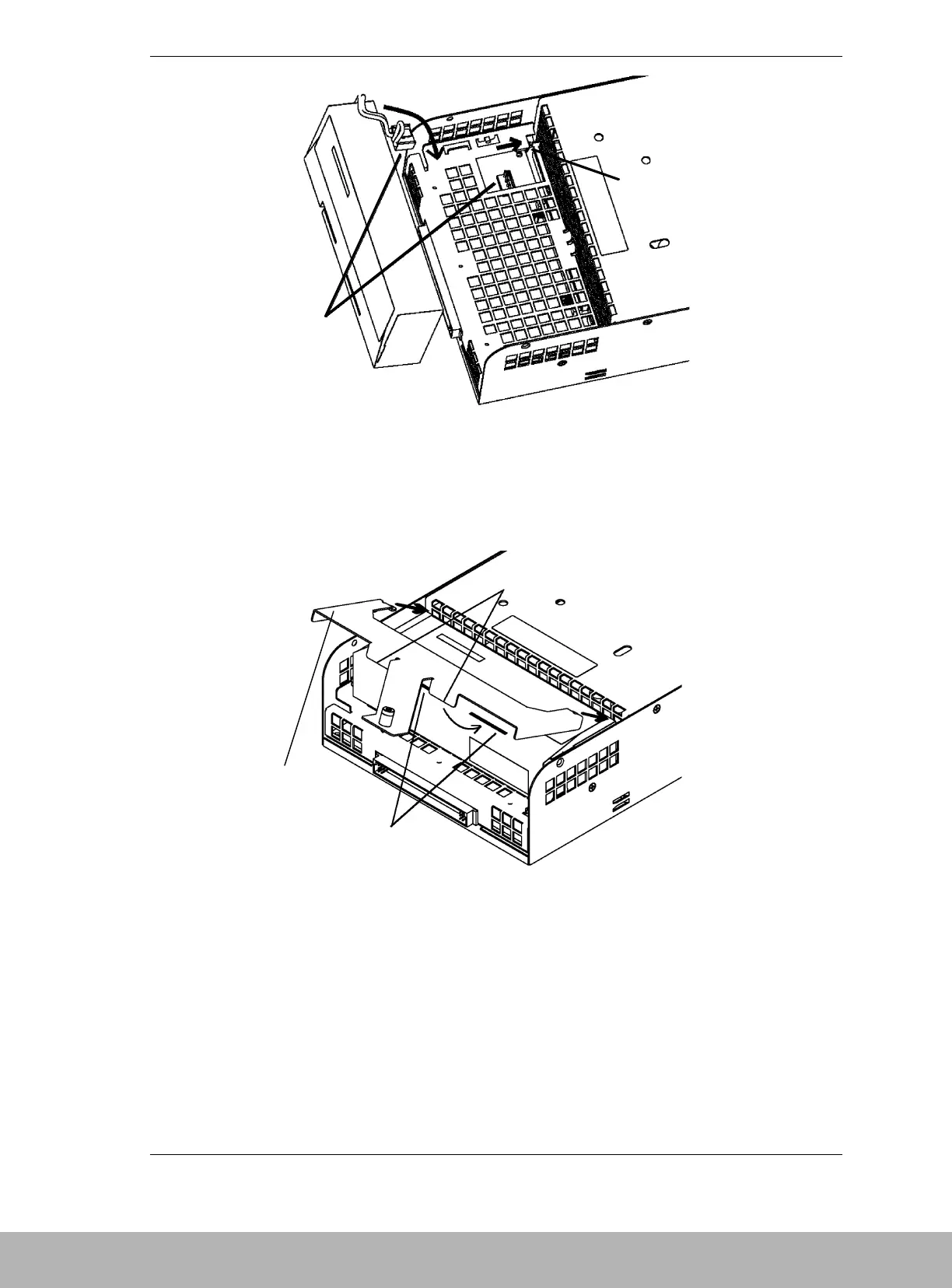

Figure 3-23. Installing the Battery Backup Unit into the Replacement Power Supply
10. Install the battery press fitting, previously removed, into the replacement
power supply. Insert the rear tabs of the battery press fitting into the slots
behind the battery backup unit. Insert the front tabs of the battery press
fitting into slots on the battery backup unit. See Figure 3-24.
Figure 3-24. Installing the Battery Press Fitting.
Stopper
Connecto
