6.5 Expert settings
Click 'Options' -> 'Usermode' -> 'Expert' to show additional configuration settings for advanced users.
6.5.1 Output
Configure communication output settings.

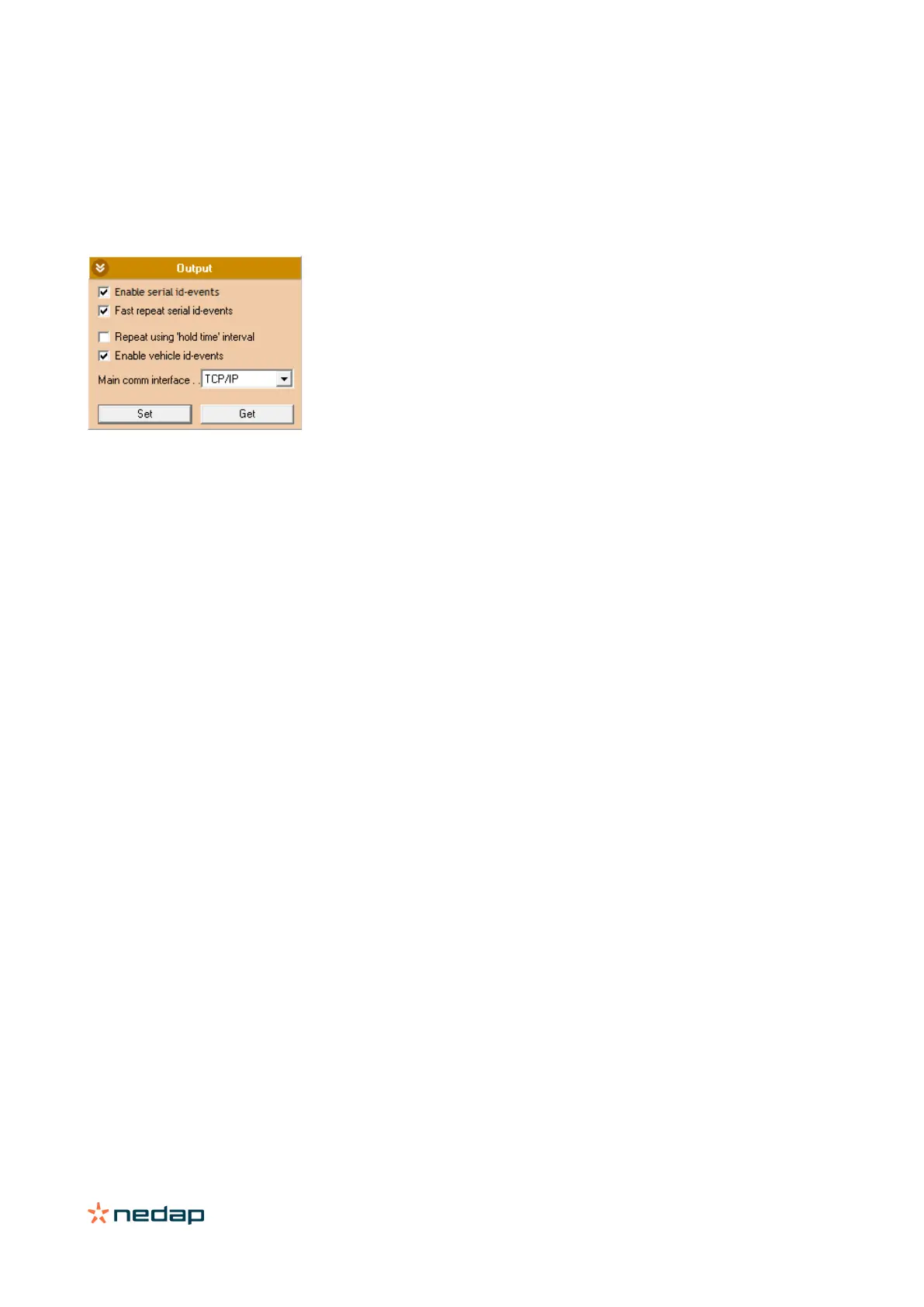

Figure 31: Output settings
Select 'Enable serial id-events' to enable the serial output upon identification. Only disable the serial id-events to
optimize the identification speed when using the Wiegand, Magstripe interface or the TRANSIT compatible processor.
When 'Fast repeat serial id-events' is selected (default) the serial output is repeated upon every identification while the
tag is in the read range. When this option is disabled, the message is transmitted at the same rate as the Wiegand or
Magstripe interface.
This setting has no effect when using the Wiegand, Magstripe or Nedap antenna interface.
By default the 'Repeat using hold-time interval' is disabled. The messages on the Wiegand or Magstripe will only be
send once when a tag enters the read range. If enabled, the messages are repeated every hold-time (configured in
chapter 6.4.3) while the tag is within the read range.
The setting has no effect on the Nedap antenna interface and may have effect on the serial interface (depending on the
'Fast repeat serial id-events' setting).
'Enable vehicle id-events' allows enabling or disabling the id-event messages for vehicle-ids. This may be useful in
combination with the Nedap DUAL-ID mode and an access control panel that does not support the dual-id feature.
'Main comm interface' is used to select the main serial communication interface. The choice is between RS422/RS485
or TCP/IP. Wiegand and Magstripe not affected.
If the 'Main comm interface' is changed, the UHFTOOL may lose connection.
