uPASS Target | installation guide
34/
6.5.3 Extra output
Optionally enable Wiegand or Magstripe output for tags that are not programmed by Nedap in a Wiegand, Magstripe or
Nedap-XS format.
See uPASS Wiegand output Application Note for more information.
6.5.4 Frequency
Here is shown the reader's operating frequency region.
When frequency hopping is not required, you can select a fixed frequency channel within the available frequency band.

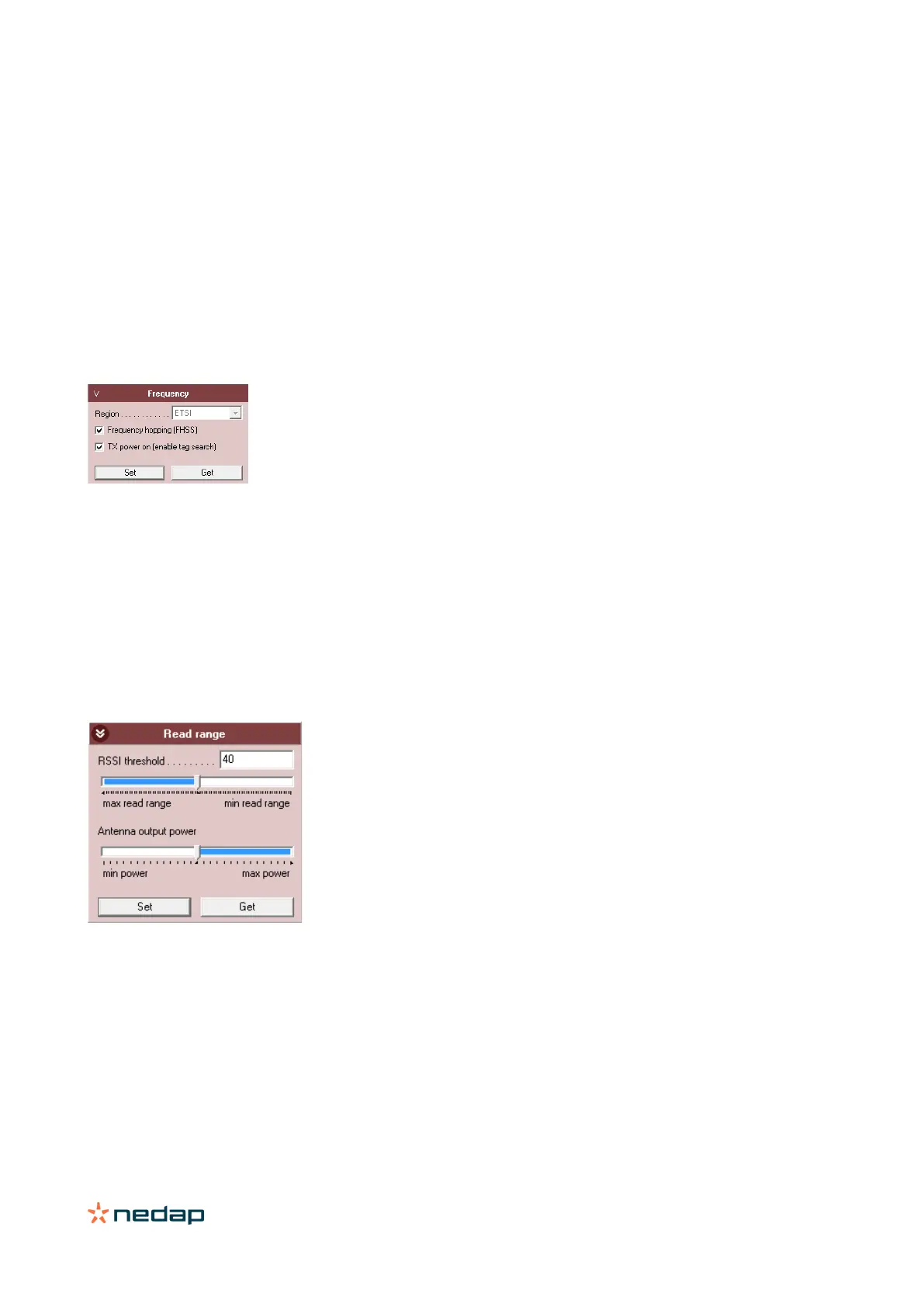

Figure 33: Frequency
6.5.5 Read range
With 'Read range' the tag read distance can be configured, this can be useful to optimize lane separation. With the
'Antenna output power' the power of the antenna is configured. The antenna output power controls the distance in
which the tag is activated. With the 'RSSI threshold' the tags are activated and read, but filtered by the firmware based
on their signal strength (RSSI).
Figure 34: Read range
