6.5.2 Output message format
Configure the serial output message format.

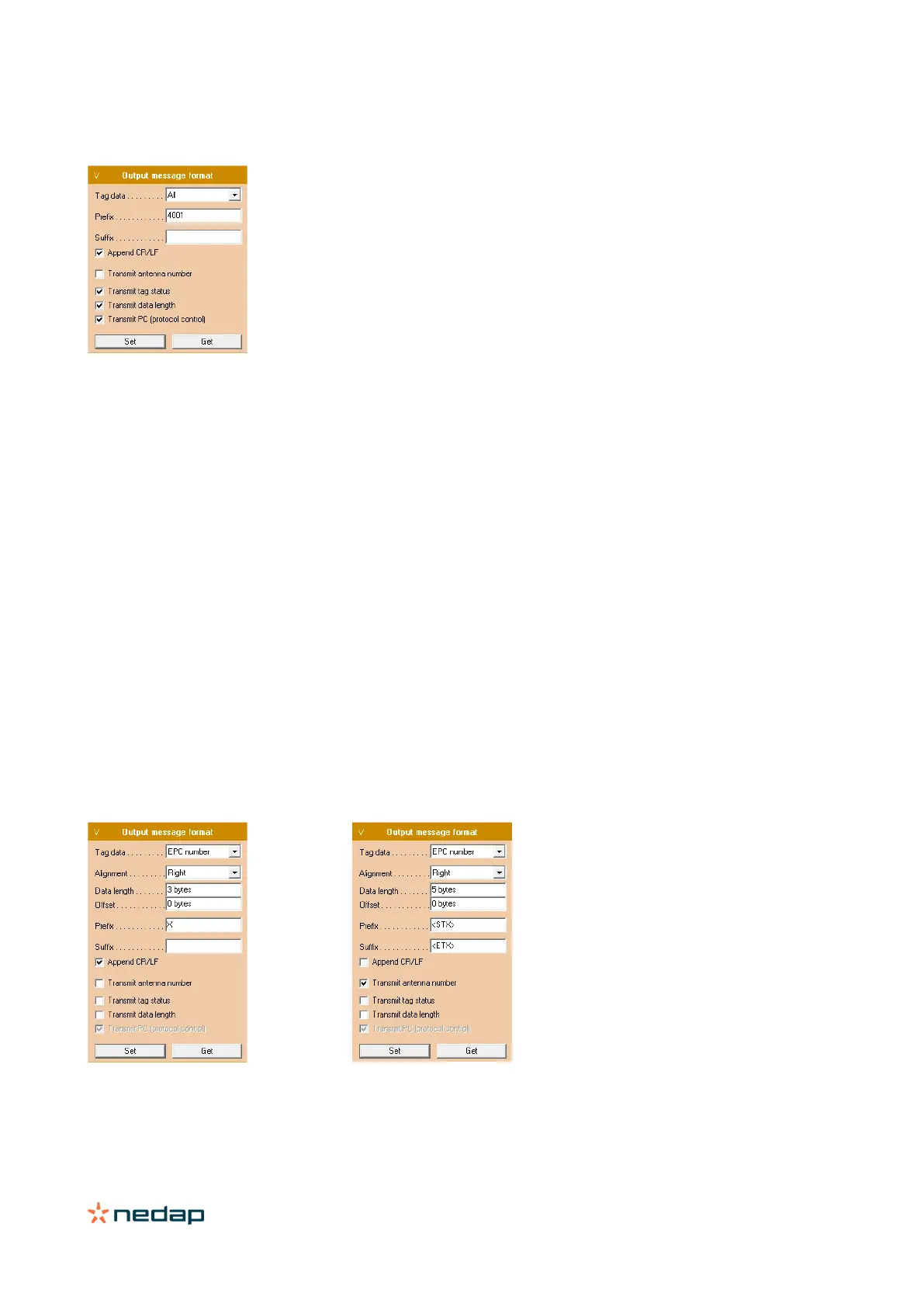

Figure 32: Output message format
The output message format is configurable:
<prefix> [<antno>] [<tagstatus>] [<epclen>] [<epc>] [<datlen>] [<data>] <suffix> [CR/LF]
Prefix Default 4001. Can be any string with length in range from 0 to 4 characters.
Special characters can also be included. E.g. <stx> = ASCII character 0x02.
The prefix is not supported in OSDP configurations.
Antno A0 = internal antenna, A1 = external antenna. See example 2 below.
Tagstatus 5 Bytes tag status: 80 <ac> <ph> <rssi>
Epclen Length of EPC number in bytes. Normally 0E for 16-bit PC + 96-bit EPC.
Epc EPC number
Datlen Custom read data length in bytes.
Data Custom read data
Suffix Suffix string. Can be any string with length in range from 0 to 4 characters.
Output default (example):
400180013E00330E34244E103FFFC809A862A1EC1500<CR><LF>
Example 1 Example 2
Output: Output:
X012345<CR><LF> <STX>A09988776655<ETX>
