Pixie service manual
31
REPAIRS
7.4 General disassembly
This subchapter shows
- how to replace the power cord,
- all necessary disassembly steps to gain access to the main assembly (brewing unit,
thermoblock, hydraulic unit and functional block.

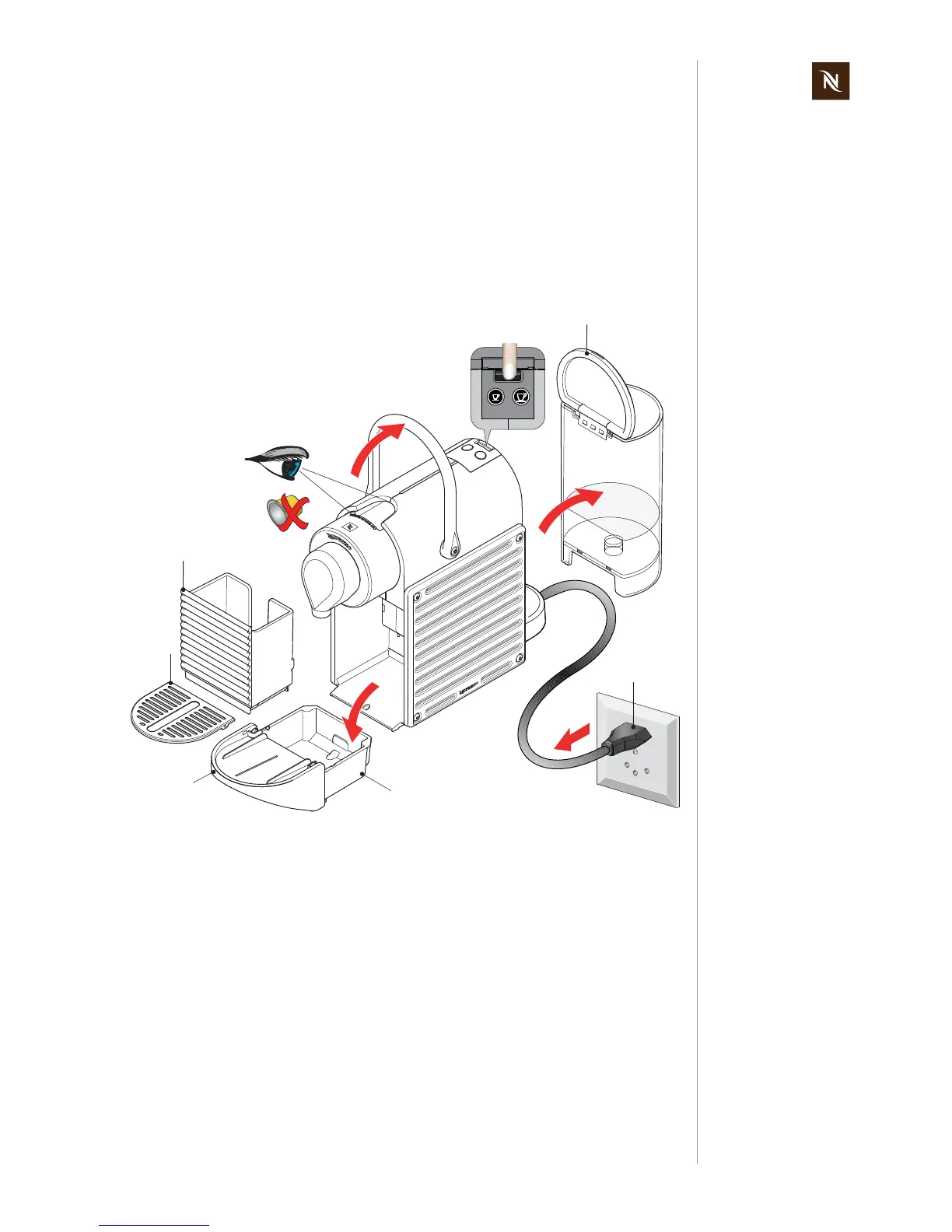

7.4.1 Prepare coffee machine for disassembly
• Open closing handle to check if a capsule is in the brewing unit.
• Empty water system if hoses have to be detached for repair (see “Empty water
system” on page 19).
• Switch machine off.
• Disconnect power plug (40) and let coffee machine cool down.
• Remove all detachable parts from coffee machine
- waste water container (11) with cup support (12) and drip grid (13)
- capsule container (10)
- water tank with cover (5).
OFF
10
12
11
13
5
40
