Pixie service manual
61
REPAIRS

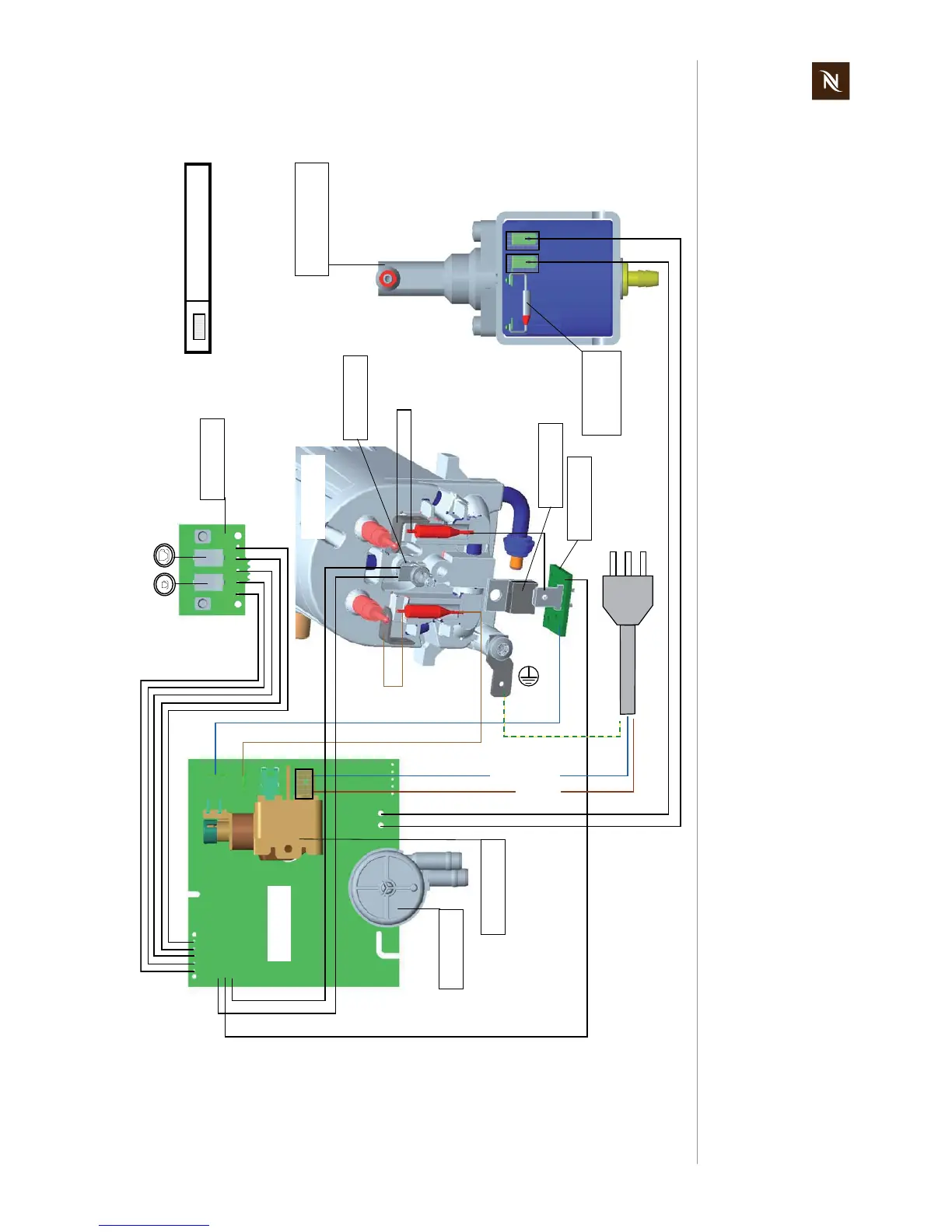

7.9.3 Wiring diagram 127 V IEC (Brazil)
Small cup
On/Off Switch
Receptacle isolation
Big cup
Flow Meter
Main PCB
MMI PCB
Triac PCB
167°C
167°C
Thermoblock
Neutral
Line
Pump
EN4 120-127V IEC
Overheat
protection
NTC
Triac
